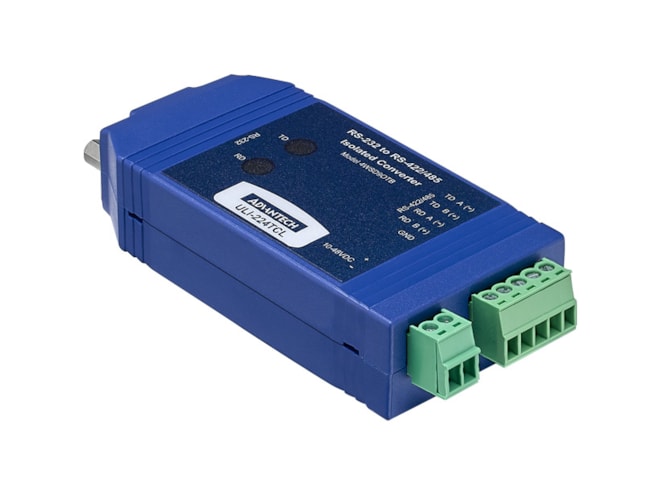

Advantech BB-4WSD9OTB

ULI-224TCL - RS-232 (DB9 F) to Iso. RS-422/485 (TB) Converter, Isolated.

$143.00
Part Number
  • BB-4WSD9OTB
Highlights...

Features

  • Technology: Serial
  • Serial Converter: RS-232 to RS-422/485
  • Mounting: Inline
  • Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block
  • Power: 10-48VDC
  • Temperature: 0 to 70C
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Isolation: 2kV
  • Isolation: 2,000 VDC
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: Inline
  • RS-232 to RS-422 or RS-485 (2 or 4 wire) serial conversion
  • 2 KV two-way optical isolation
  • Data rate up to 115.2 kbps
  • Quick, inline installation
  • Removable terminal blocks for RS-422/485
  • 10 to 48 VDC external power required (not included, sold separately)
Converts RS-232 to RS-422 or RS-485. 2,000V two-way optical isolation protects devices from power surges, spikes and more. This converter supports distances up to 4000 ft and data rates up to 115.2 kbps. Switchable modes support 2-wire RS-485, 4-wire RS-485 and full-duplex RS-422. DB9 F RS-232 input
