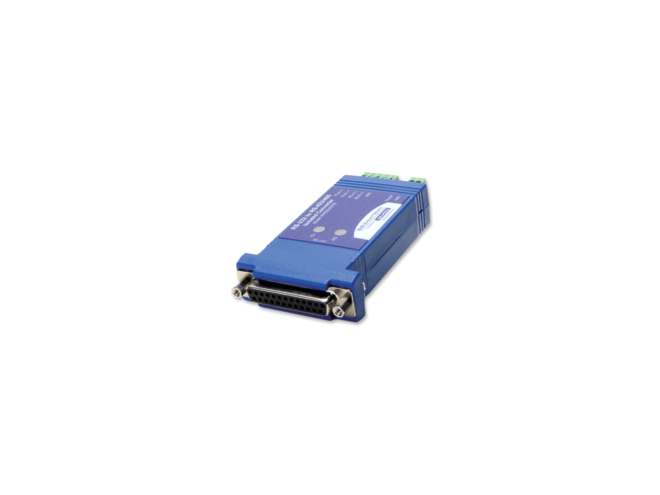

Advantech BB-4WSD25OTB

Isolated In-line Serial Converter, DB25F/Terminal Blocks.

$143.00
Part Number
  • BB-4WSD25OTB
Highlights...

Features

  • Technology: Serial
  • Mounting: Inline
  • Power: 10-48VDC
  • Temperature: 0 to 70C
  • Isolation: 2kV
  • RS-232 to RS-422 or RS-485 (2 or 4 wire) serial conversion
  • 2,000V, two-way optical isolation (input/output)
  • Data rate: 115.2 kbps
  • Quick, inline installation
  • Removable terminal blocks for RS-422/485
  • Automatic Send Data Control - no software drivers necessary
  • 10 to 48 VDC external power required (not included, sold separately)
Converts RS-232 to RS-422 or RS-485. 2,000 Volts two-way optical isolation protects devices from power surges, spikes and more. Switchable modes support 2-wire RS-485, 4-wire RS-485, and full-duplex RS-422. DB9 female RS-232 input. Features removable terminal blocks and external power (10-48 VDC).
