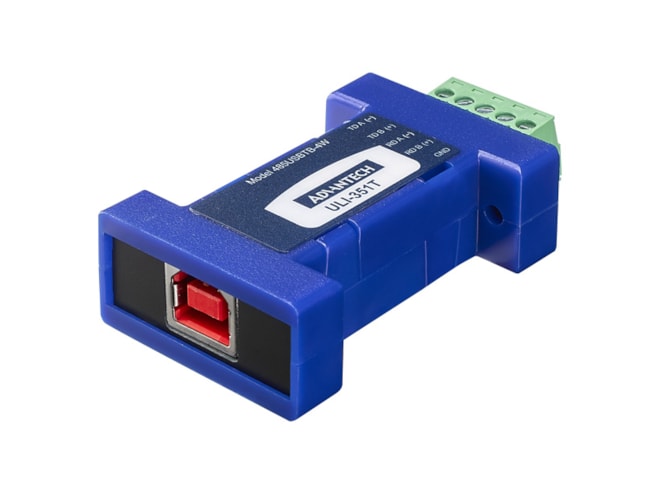

Advantech BB-485USBTB-4W-A

ULI-351T - USB to RS-485 4 Wire (Terminal Blaock) Converter.

$106.00
Part Number
  • BB-485USBTB-4W-A
Highlights...

Features

  • Standard: USB 2.0
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type B (Female) High Retention
  • Serial Standard: RS-485
  • Serial Port Connector Type: Terminal block
  • Maximum Serial Transmission Speed: 921.6 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Inline
  • USB to RS-485 4-Wire Converter
  • Small Form Factor
  • USB Port Powered
  • High Retention USB Connector, Plug in Terminal Block Serial Connector
  • 921.6 kbps Serial Data Rate
  • USB Cable Included
Supports 4-wire RS-485. Long range, multi-drop communications. Easy to set up with plug in terminal block on RS-485 side and a high retention USB connector that works with a standard USB cable (included). Small form factor. USB Port Powered.
