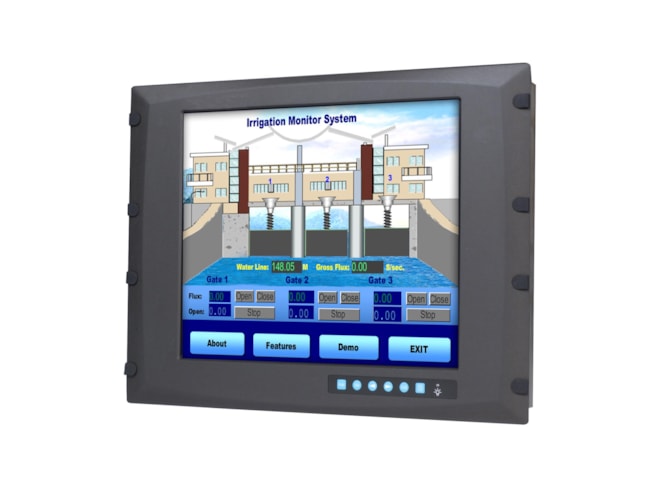

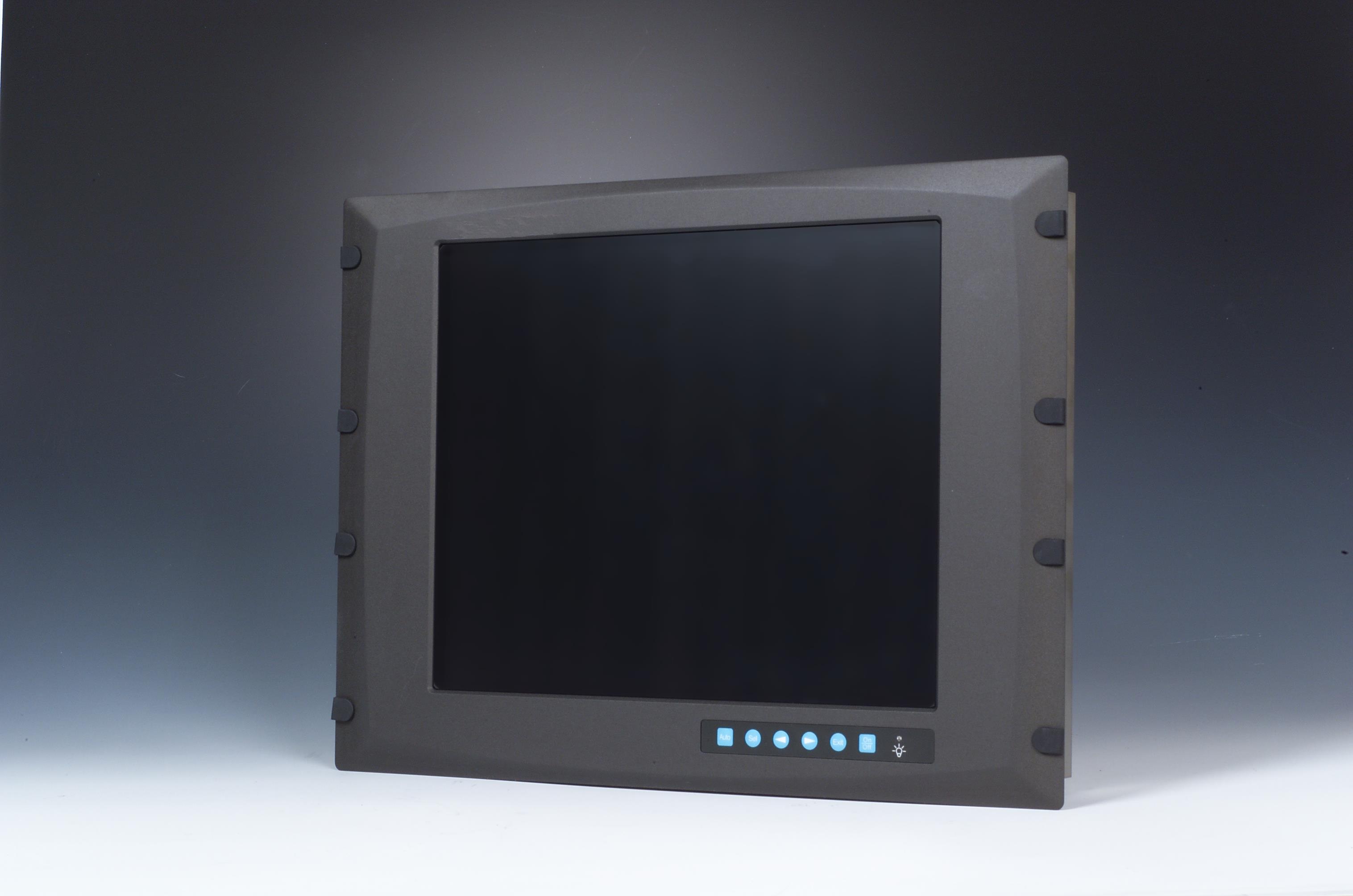

Advantech FPM-3171G-R3BE

17" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA and DVI Ports, and Wide Operating Temperature Range.

$1,355.00
Part Number
  • FPM-3171G-R3BE
Highlights...

Features

  • Ingress Protection: Front Panel IP65
  • Storage Humidity: 10~95% RH (non-condensing)
  • Vibration Protection: 1 Grms, random
  • Certification: CB, UL, CE, FCC Class A, CCC, BSMI, Energy Star
  • OS Support: Microsoft® Windows 2000,Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
  • Power Input: Phoenix Jack: 24 VDC, DC Jack: 12 VDC
  • Video Port: VGA, DVI-D
  • Power Connector: 1 x Phoenix Jack
  • Display Size: 17"
  • Max. Resolution: 1280 x 1024
  • Viewing Angle (H/V°): 160/140
  • Dimension (W x H x D): 482 x 354.8 x 63.5 mm
  • Enclosure: Aluminum with hard anodizing coating, Stainless steel with
  • ground isolation protection
  • Mounting: Stand, Wall, VESA, Panel
  • Weight (Net): 9.25 kg (20.39 lb)
  • Touch Type: 5-wire resistive
  • 17"SXGA TFT LED LCD with 50,000 backlight life time
  • Robust design with stainless steel chassis and aluminum front panel
  • Anti-glare screen with tempered glass and IP65 certified front panel
  • Lockable OSD control pad on rear cover
  • Supports industrial 24VDC power input
  • Supports panel, wall, desktop, rack or VESA arm mounting
  • Supports 8U pre-drill Rackmount mounting hole
FPM-3171G is a 17"color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 17", it presents an simple display area as well as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the e x isting system. The onscreen display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel IP65 compliance.
