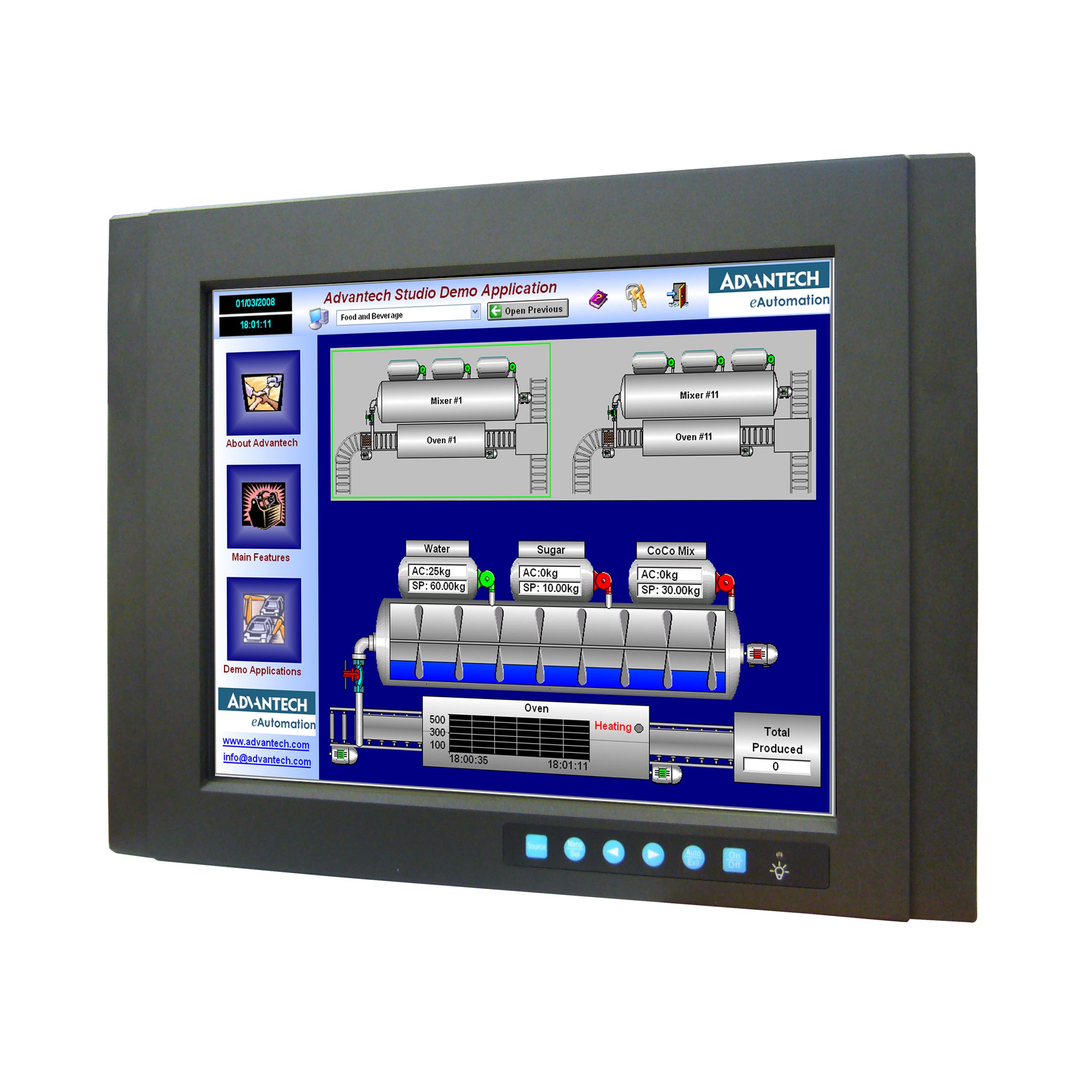

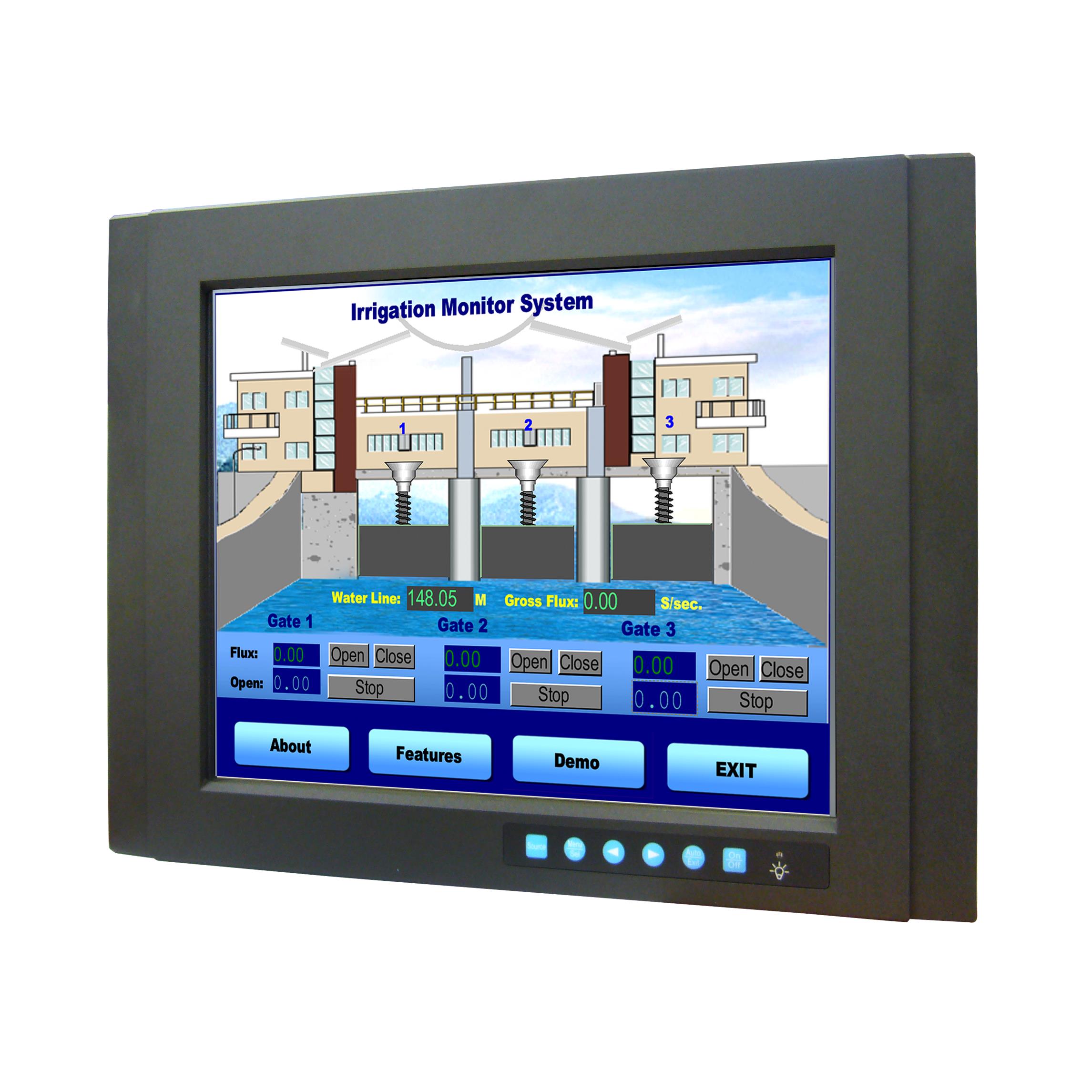

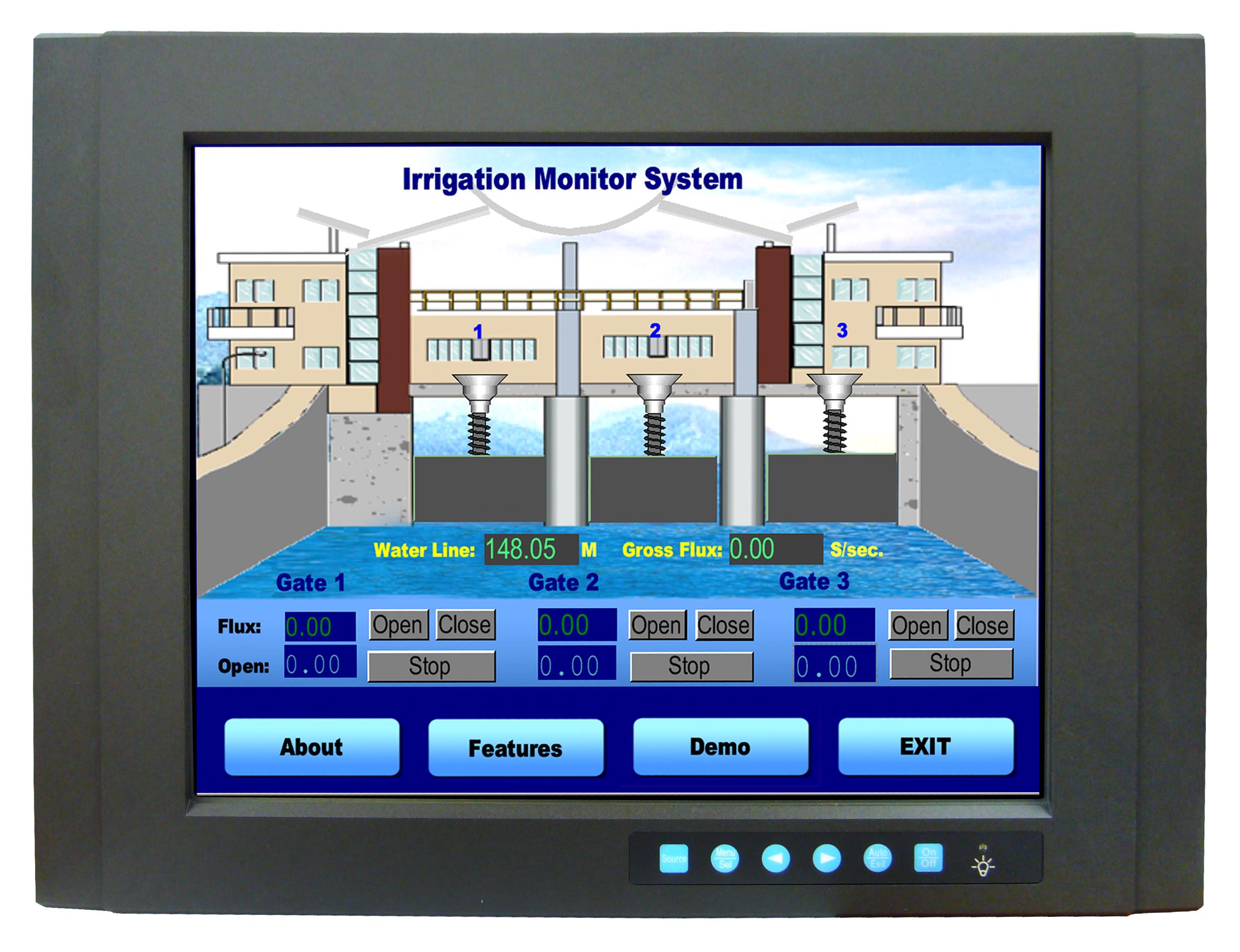

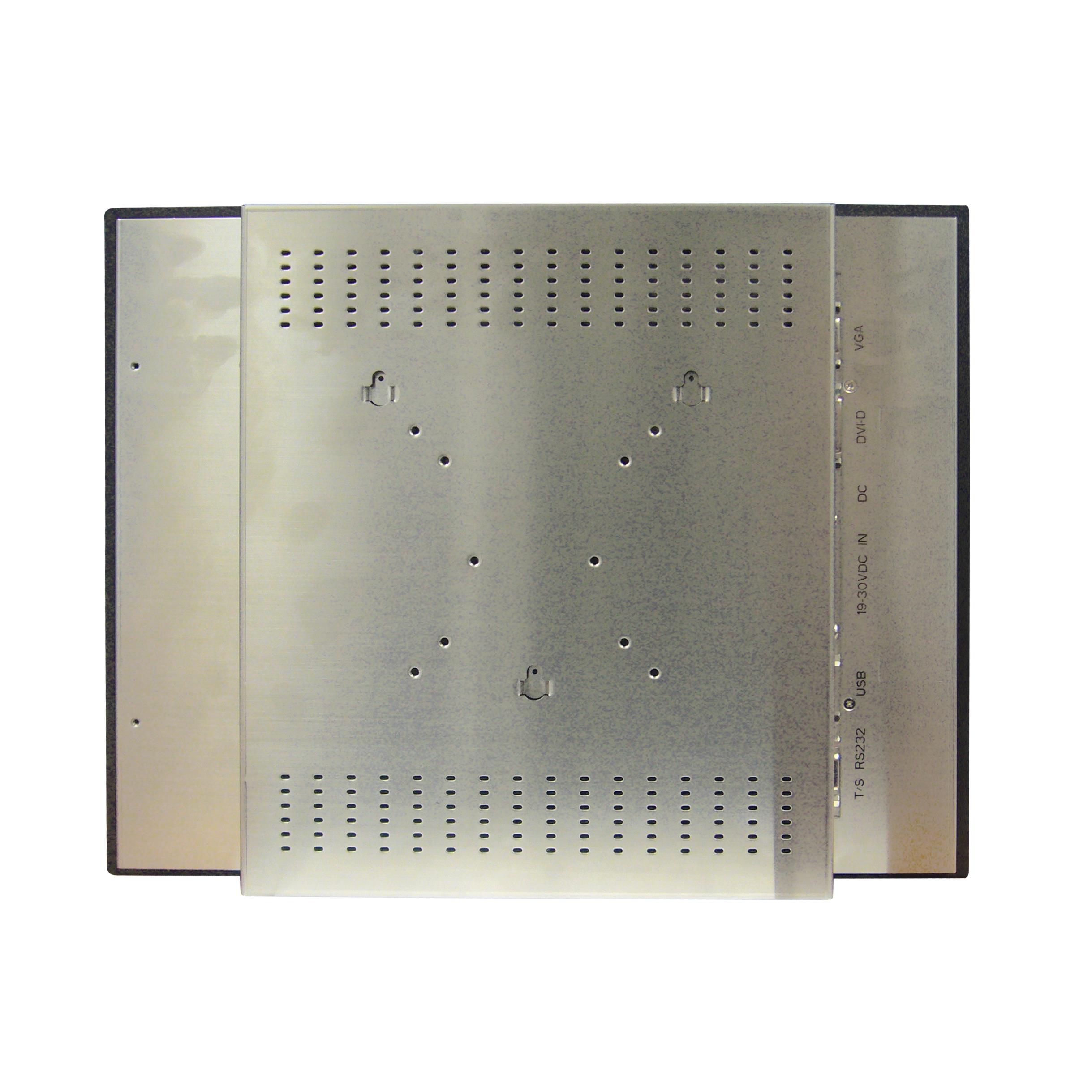

Advantech FPM-3151G-R3BE

15" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI Ports, and Wide Operating Temperature.

$1,186.00
Part Number
  • FPM-3151G-R3BE
Highlights...

Features

  • Ingress Protection: Front Panel IP65
  • Storage Humidity: 10~95% RH (non-condensing)
  • Vibration Protection: 1 Grms, random
  • Certification: CB, UL, CE, FCC Class A, CCC, BSMI, Energy Star
  • OS Support: Microsoft® Windows 2000,Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
  • Power Input: Phoenix Jack: 24 VDC, DC Jack: 12 VDC

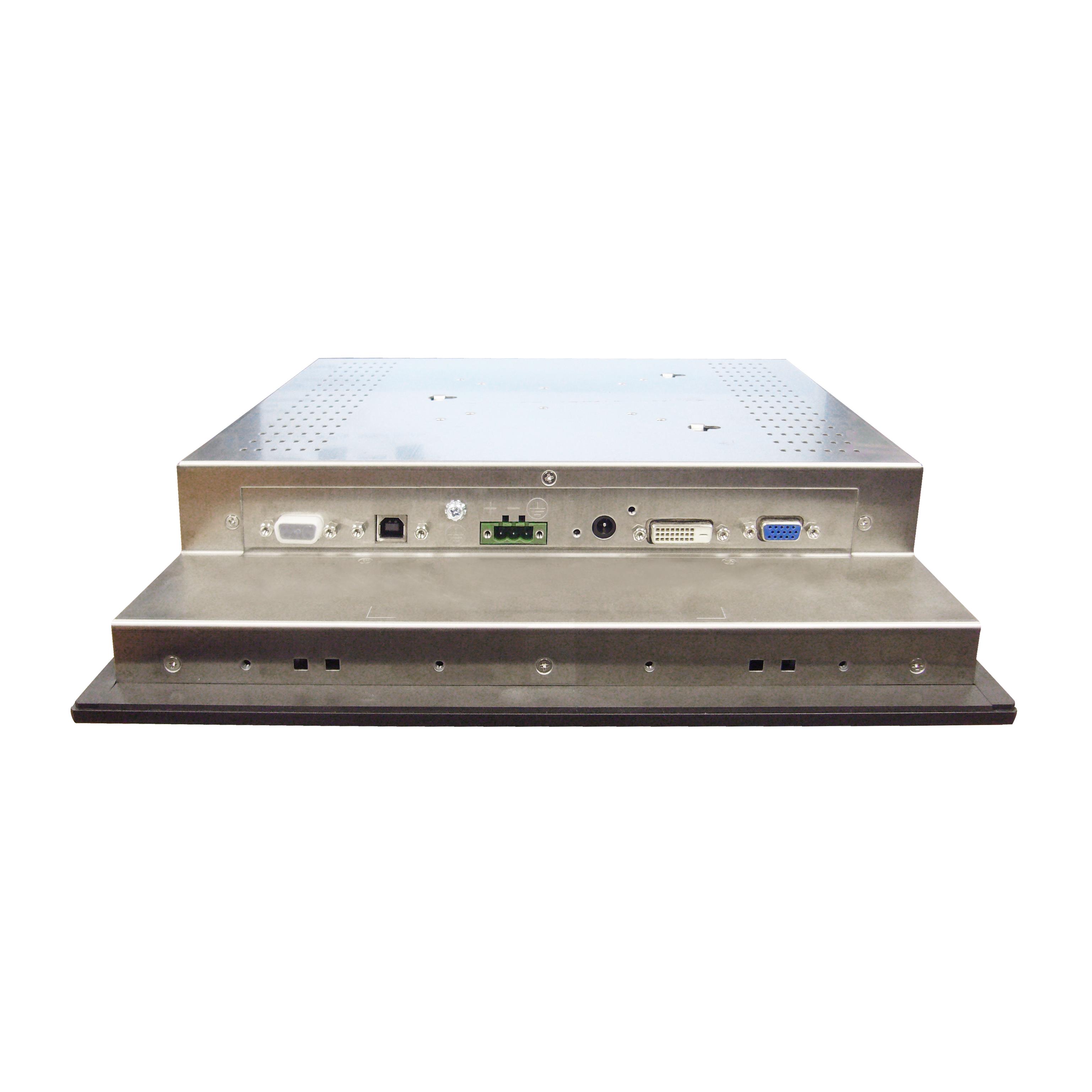

  • Video Port: VGA, DVI-D
  • Power Connector: 1 x Phoenix Jack
  • Display Size: 15"
  • Max. Resolution: 1024 x 768
  • Viewing Angle (H/V°): 160/140
  • Dimension (W x H x D): 422 x 310 x 70 mm
  • Enclosure: Aluminum with hard anodizing coating, Stainless steel with
  • ground isolation protection
  • Mounting: Stand, Wall, VESA, Panel
  • Weight (Net): 7.73 kg (17.04 lb)
  • Touch Type: 5-wire resistive
  • 15" XGA LED backlight LCD with low power consumption

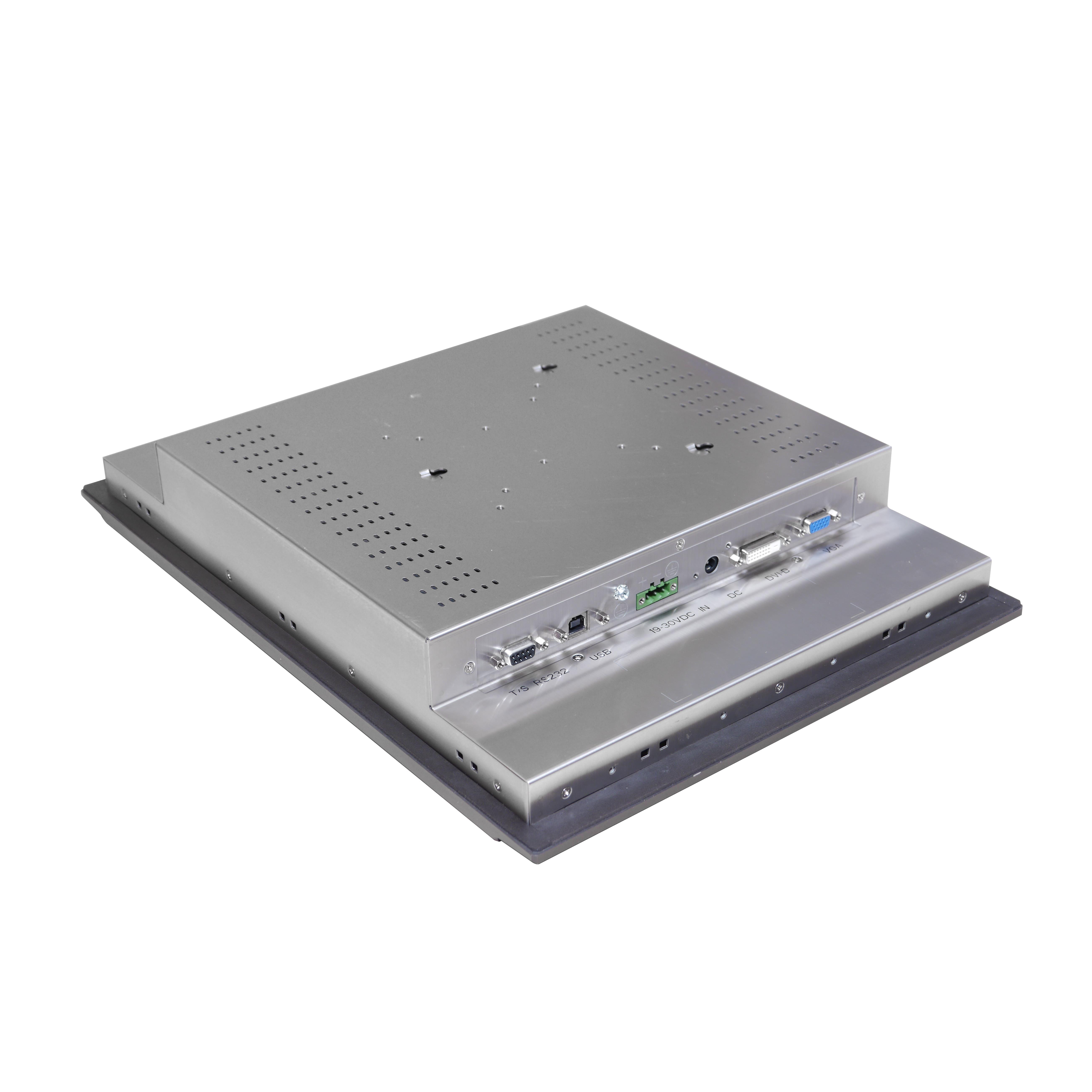

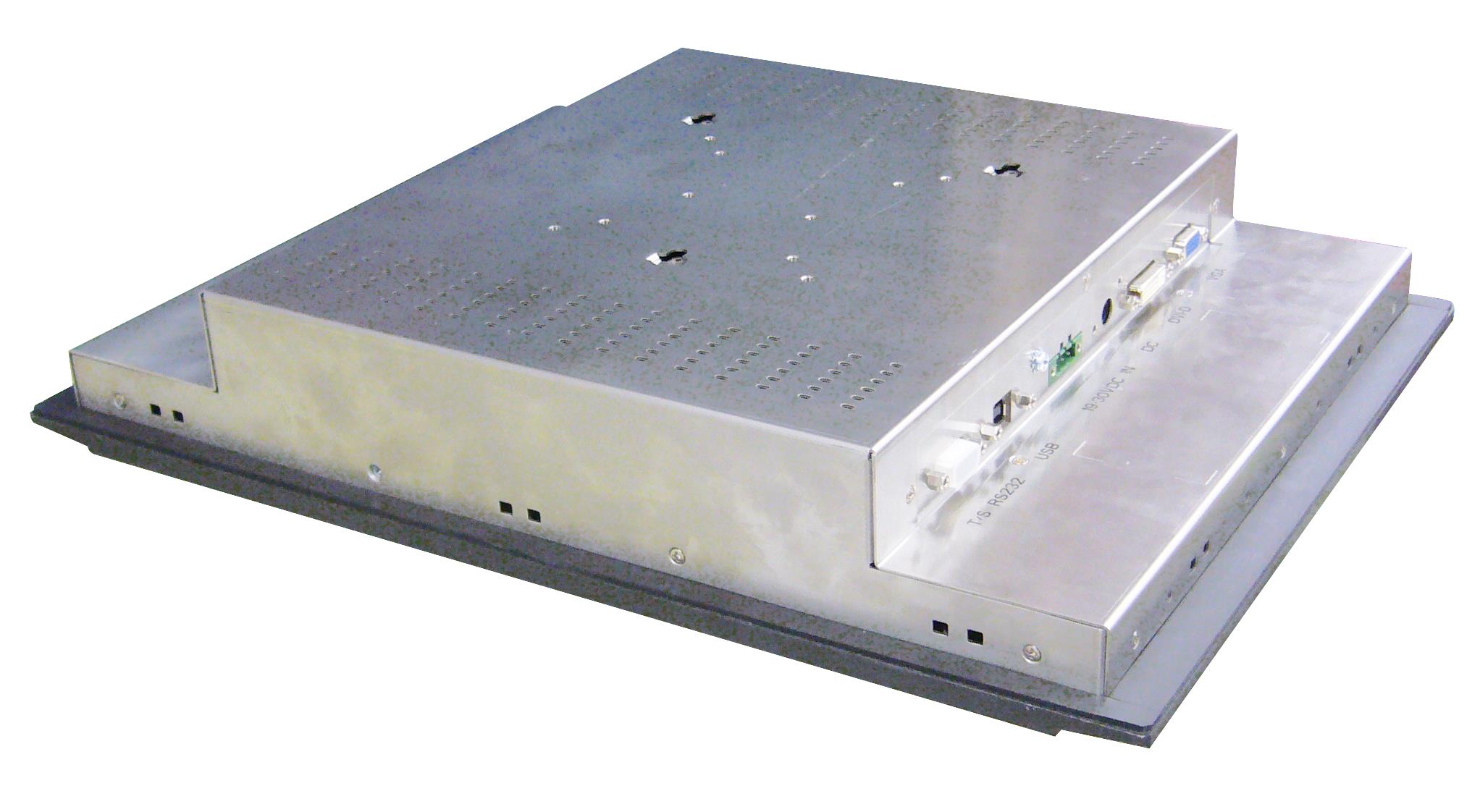

  • Robust anodized coated aluminum front bezel and stainless steel rear cover
  • Supports wide operating temperatures
  • Increase reliability by enhanced 5-wire resistive touch sensor
  • Anti-reflective screen with tempered glass
  • Full enclosure ground isolation protection
  • Supports VGA/DVI input, dual touch interfaces and two power inputs

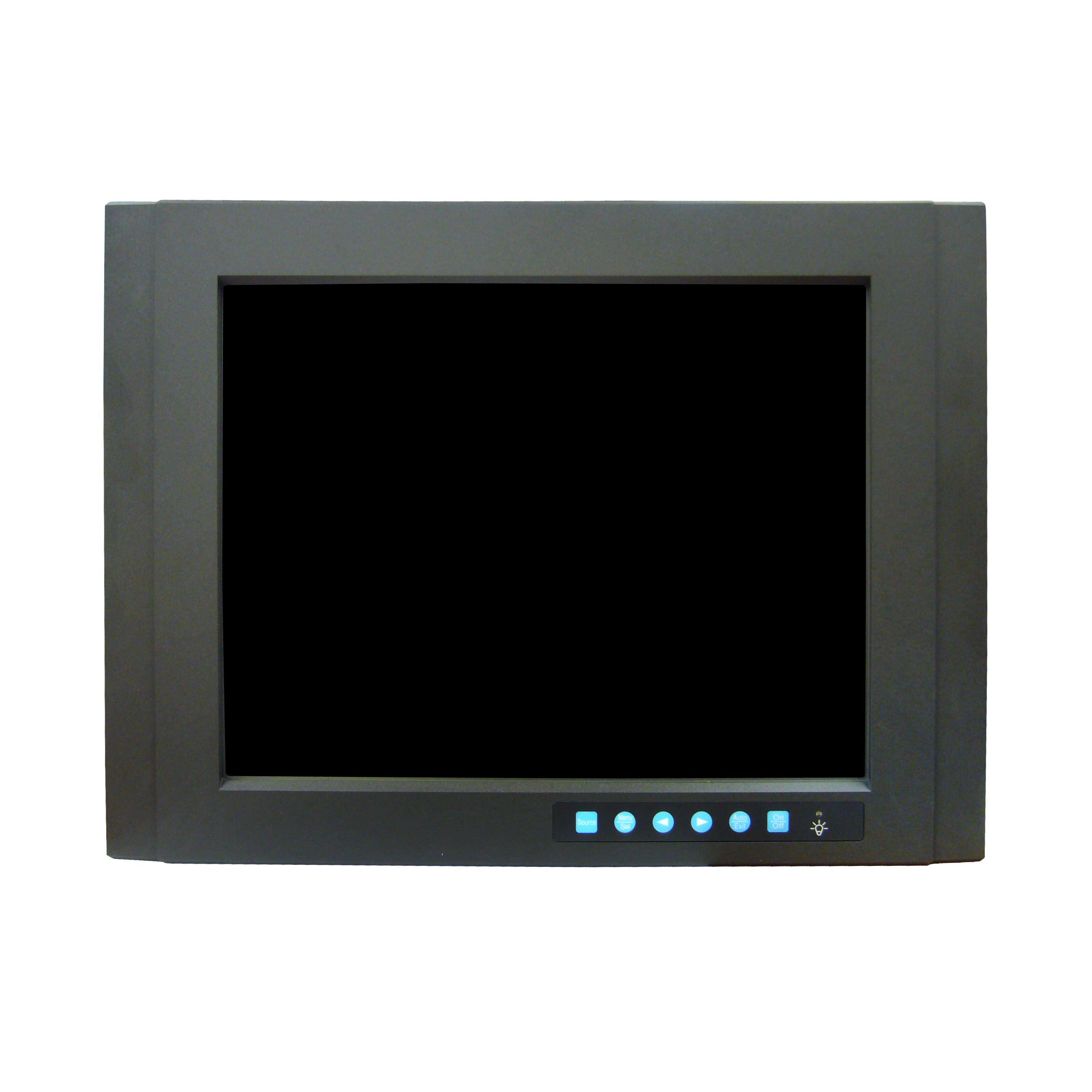

  • Front lockable OSD membrane keys with user-defined brightness setting
  • Front panel is IP65 compliant
  • Supports panel, VESA, wall and desktop stand mounting
The FPM-3151G is a particularly rugged and reliable 15” XGA wide temperature industrial monitor for a variety of industry applications. Equipped with a hard anodized coating, stainless steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch and system ground isolation protection to enhance the reliability. FPM-3151G also provides lockable OSD keys on the front panel with two user-defined contrast/brightness settings.
