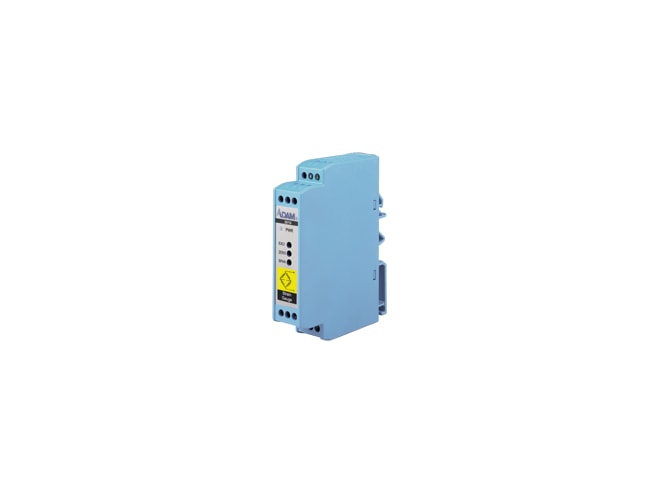

Advantech ADAM-3016-AE

Isolated Strain Gauge Input Module.

$184.00
Part Number
  • ADAM-3016-AE
Highlights...

Features

  • Input Range: ±10 mV, ±20 mV, ±30 mV, ±100 mV
  • Output Ranges: ±5 V, ±10 V, 0~10 V
  • 1000 VDC 3-way optical isolation
  • Switch configurable mV or V input of full bridge
  • Switch configurable voltage and current outputs
ADAM-3016 is a DIN rail-mounted strain gauge input signal conditioning module with 1000 V DC 3-way isolation between input, output and power. The switch con-figurable input and output offers flexible, wide ranging capability for strain gauge. ADAM-3016 is equipped with a power LED to monitor the line power and a DC-to-DC converter status and 3 VR (ZERO, SPAN, EXCI) to calibrate input/output range and excitation voltage.
