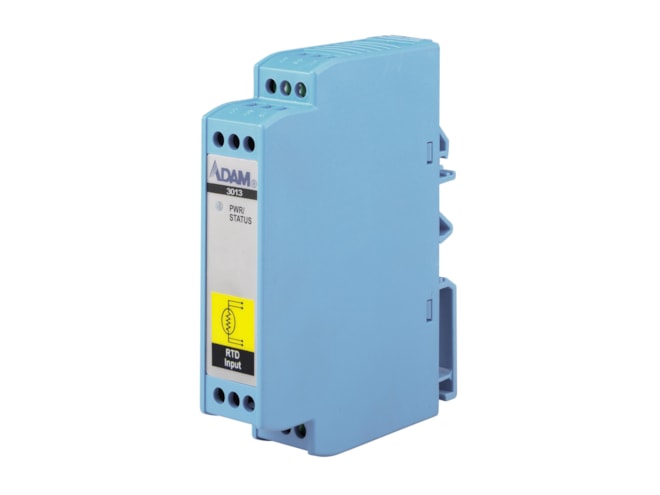

Advantech ADAM-3013-AE

Isolated RTD Input Module.

$184.00
Part Number
  • ADAM-3013-AE
Highlights...

Features

  • Output Ranges: 0~5 V, 0~10 V, 0~20 mA
  • 1000 VDC 3-way optical isolation
  • Built-in microprocessor
  • Switch configurable for 0~5 V, 0~10 V or 0~20 mA outputs
  • Switch configurable Pt and Ni RTD input ranges
ADAM-3013 is a DIN-rail mounted, RTD input signal conditioning module with 1000 VDC 3-way isolation between input, output and power. The switch configurable input and output offers flexible, wide ranging capability for Platinum and Nichel RTDs. The input of the ADAM-3013 RTD input can be configured for any one of up to fourteen defined temperature ranges and two OEM-defined ranges. The output is linearized to the RTD temperature input and can be set for either 0~5 V, 0~10 V or 0~20 mA.
