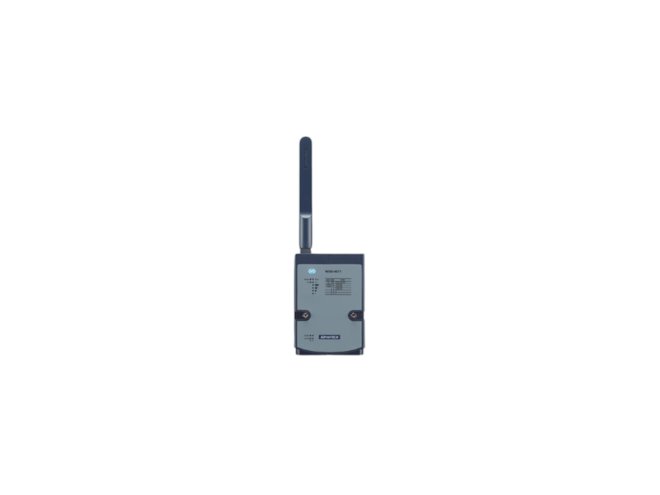

Advantech WISE-4671-UA

Advanced NB-IoT/LTE-M IoT Wireless Modular I/O.

$401.00
Part Number
  • WISE-4671-UA
Highlights...

Features

  • Ingress Protection: IP65
  • Relative Humidity: 5~95% RH (non-condensing)
  • Storage Humidity: 0~95% RH (non-condensing)
  • SIM card slot: Nano SIM card
  • Connectors: 1 x M12 4-pin code-A male, 2 x M12 8-pin code-A female
  • Certification: CE, FCC Class A, PTCRB, AT&T, Verizon
  • LED Indicators: Status, Error, Tx, Rx, Signal Level, Battery Level
  • Power Consumption: 1.4 W @ 12 VDC
  • Power Input: 10~50 VDC, 17~21 VDC Solar Panel
  • USB Ports: 1 x Micro-B USB
  • Dimension (W x H x D): 82 x 122 x 49 mm
  • Weight (Net): 0.5 kg
  • Input Voltage: 10~50 VDC, 17~21 VDC Solar Panel
  • Frequency Band: LTE Band 2, 3, 4, 5, 8, 12, 13, 20, 28
  • Standard (Technology): NBIoT, LTE-M
  • Global coverage of NB-IoT and LTE-M band w/ external detachable antenna
  • 3GPP release 13 Cat. NB1/Cat. M1
  • Application-ready I/O combination with optional M12 connectors, IP65
  • Support MQTT, CoAP & LwM2M protocol with direct cloud service
  • GNSS & solar panel rechargeable battery inside
Cat. NB1 and Cat. M1 feature low power consumption and utilize LTE networks based on licensed spectrum bands that are optimized for connectivity to machines, assets, and sensors to unlock a range of IoT applications.
