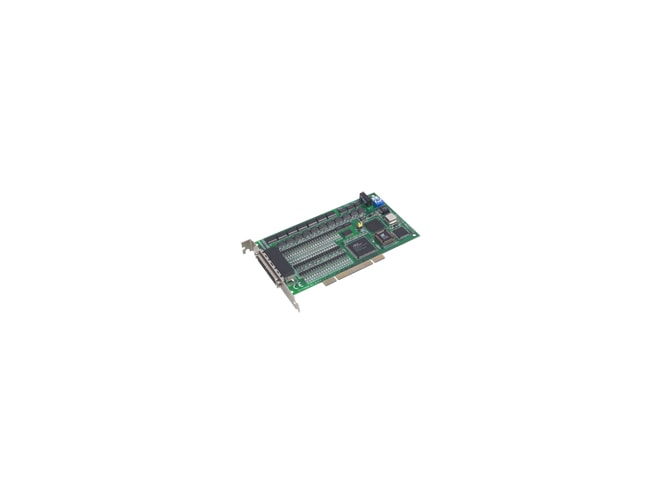

Advantech PCI-1758UDO-BE

Features

• Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
• 64-ch isolated digital output and 64-ch isolated digital input
• Interrupt handling capability for each channel.
• Digital Filter function.
• Wide output range (5 ~ 40 VDC); input range (5 ~ 25 VDC)
• High-sink current for isolated output channels (200mA max./Channel)
• High ESD protection (2,000 VDC).
• Current protection for each port
• High-voltage isolation on output channels (2,500 VDC)
• Output status read-back
• Watchdog timer
