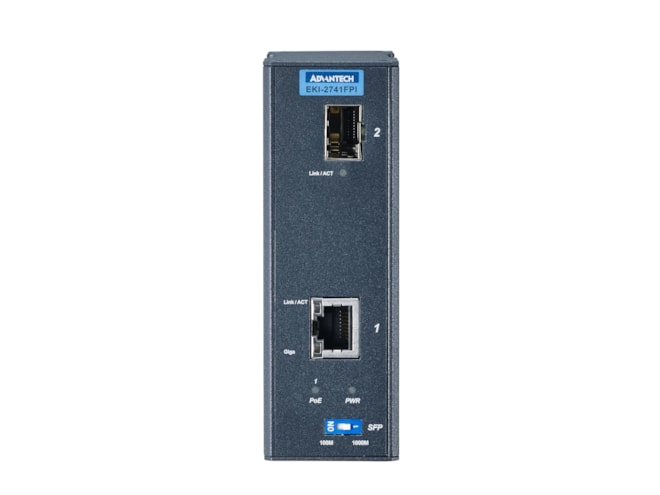

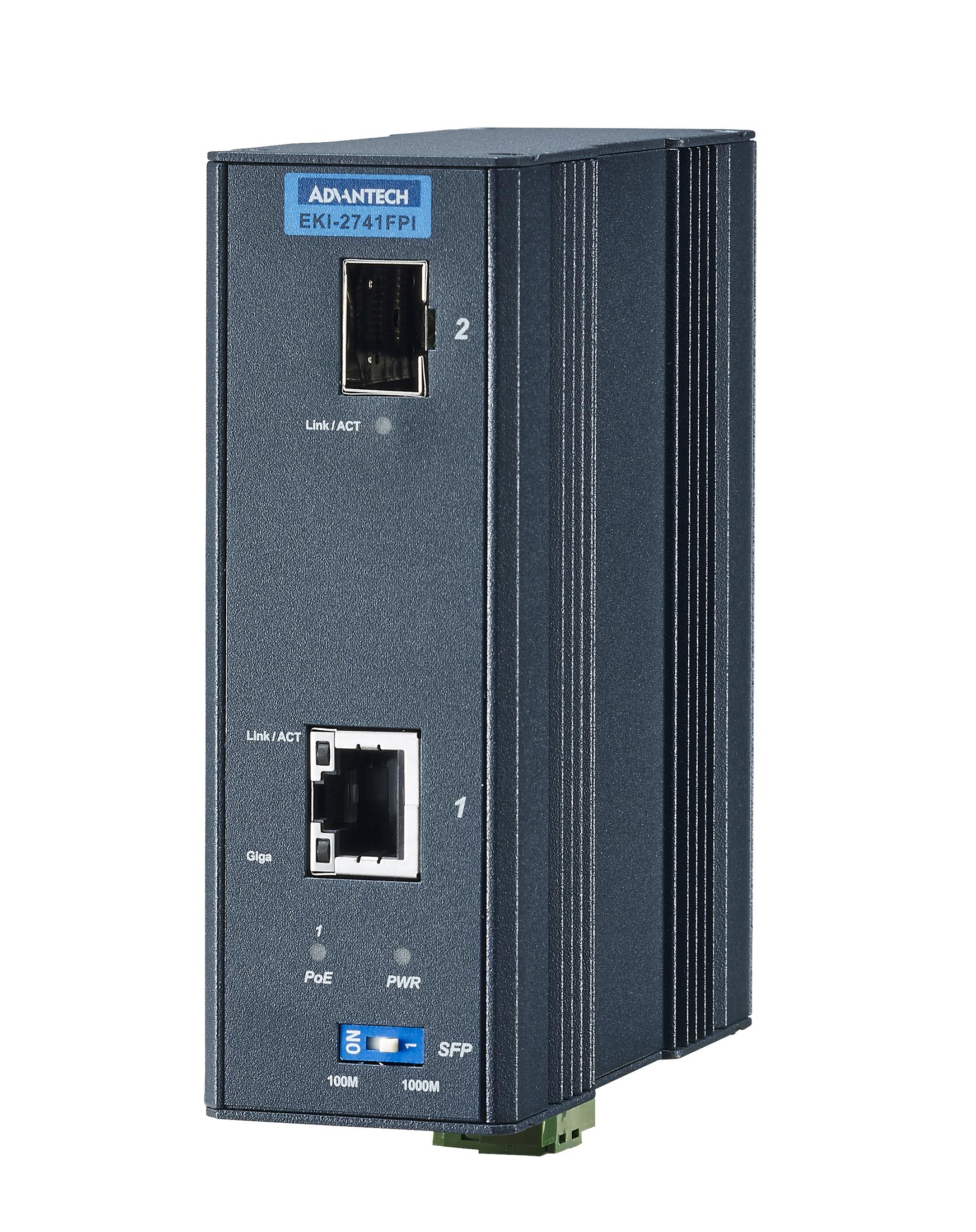

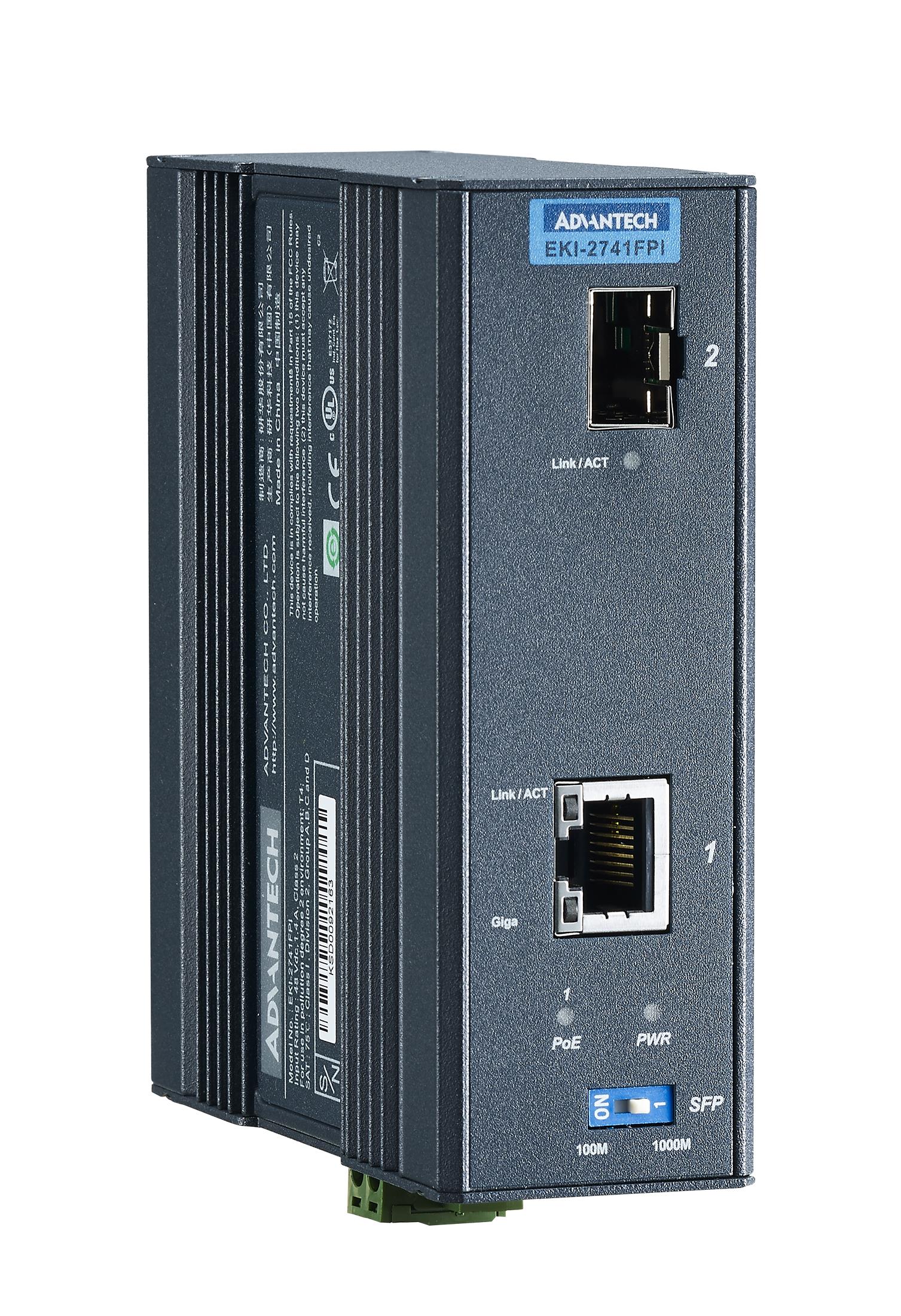

Advantech EKI-2741FHPI-AE

Harden PoE Injector , 60W, SFP.

$438.84
Part Number
  • EKI-2741FHPI-AE
Highlights...

Features

  • Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af/at
  • RJ-45 Transmission Distance: 100 m
  • Fiber Transmission Distance: Up to 110 km
  • Switch Fabric Speed: 1.0Gbps
  • Jumbo Frame: 10K bytes
  • Dimensions (W x H x D): 36.7 x 108.4 x 103.5 mm
  • IP Rating: IP31
  • Enclosure (Metal): Metal
  • Weight: 0.45 kg (1.0 lb)
  • Mounting: DIN-rail, Wall
  • Relative Humidity: 10~95%
  • Time: 730,083 hours
  • Method: Telcordia(Relax), GB
  • Power Operating Current: 0.07A @48Vdc(system)
  • Power Consumption: 63.5W
  • Power Connector Type: 2-pin removable screw terminal
  • Safety: UL508, Class 1 Division 2
  • EMC: CE, FCC
  • EMI: EN 55011/ EN 55022 Class A, EN 61000-6-2, EN 61000-6-4 FCC Part 15 Subpart B Class A
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6
  • Warranty Period: 5 years
  • Supports multi-rate for SFP slot
  • IEEE 802.3af/at compliant
  • Power input 48 VDC, supply 60W per port
  • Provides slim size and DIN-rail/Wall mount with IP31 metal mechanism
  • Supports operating temperatures from -40 to 75°C
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2741FHPI is compliant IEEE 802.3af/at and supply to 60W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C.
