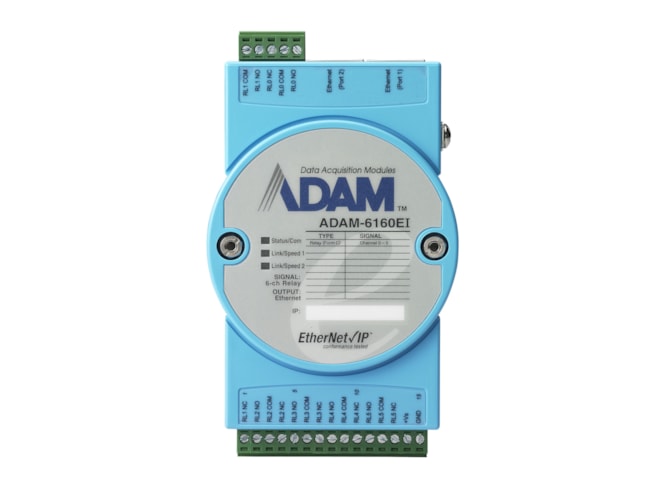

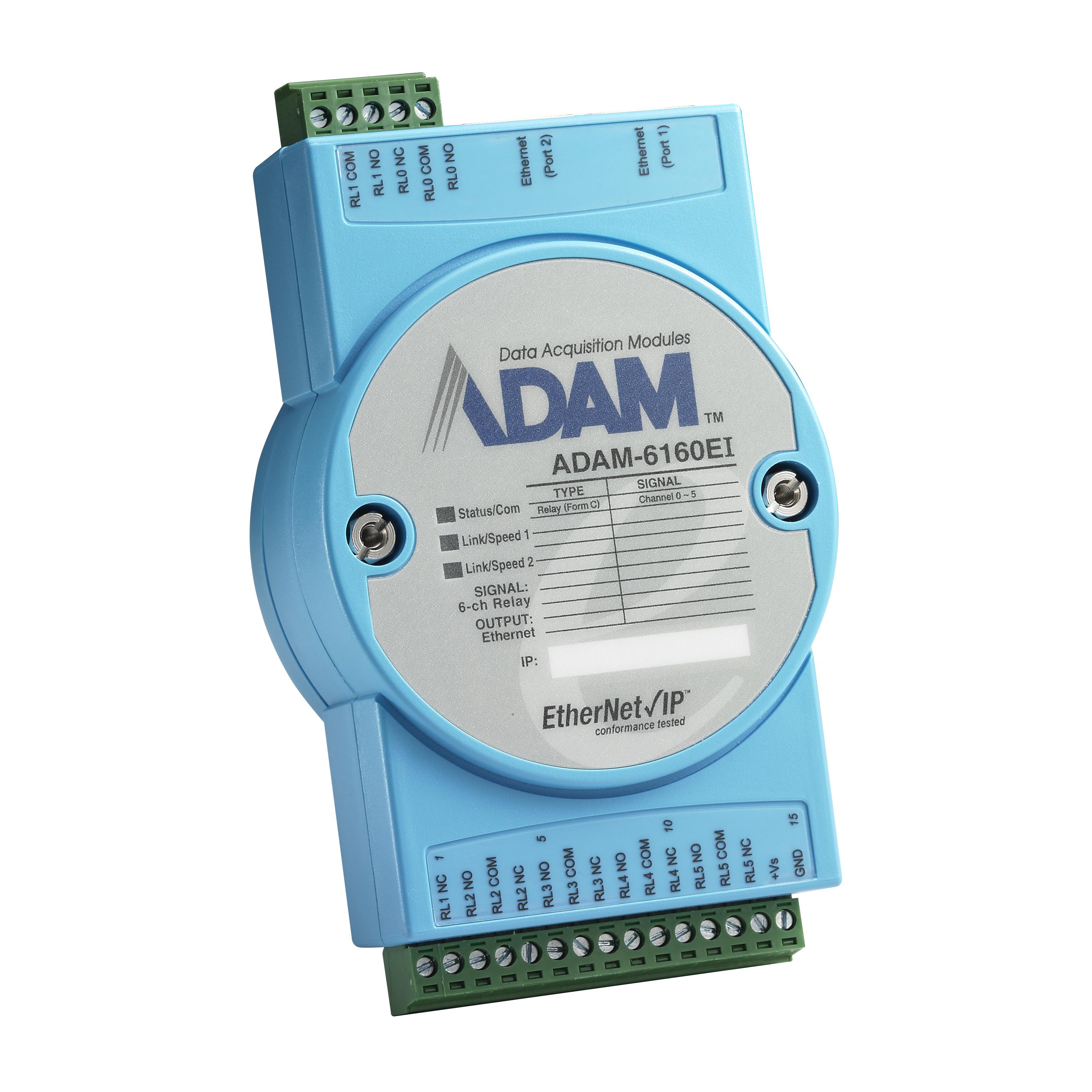

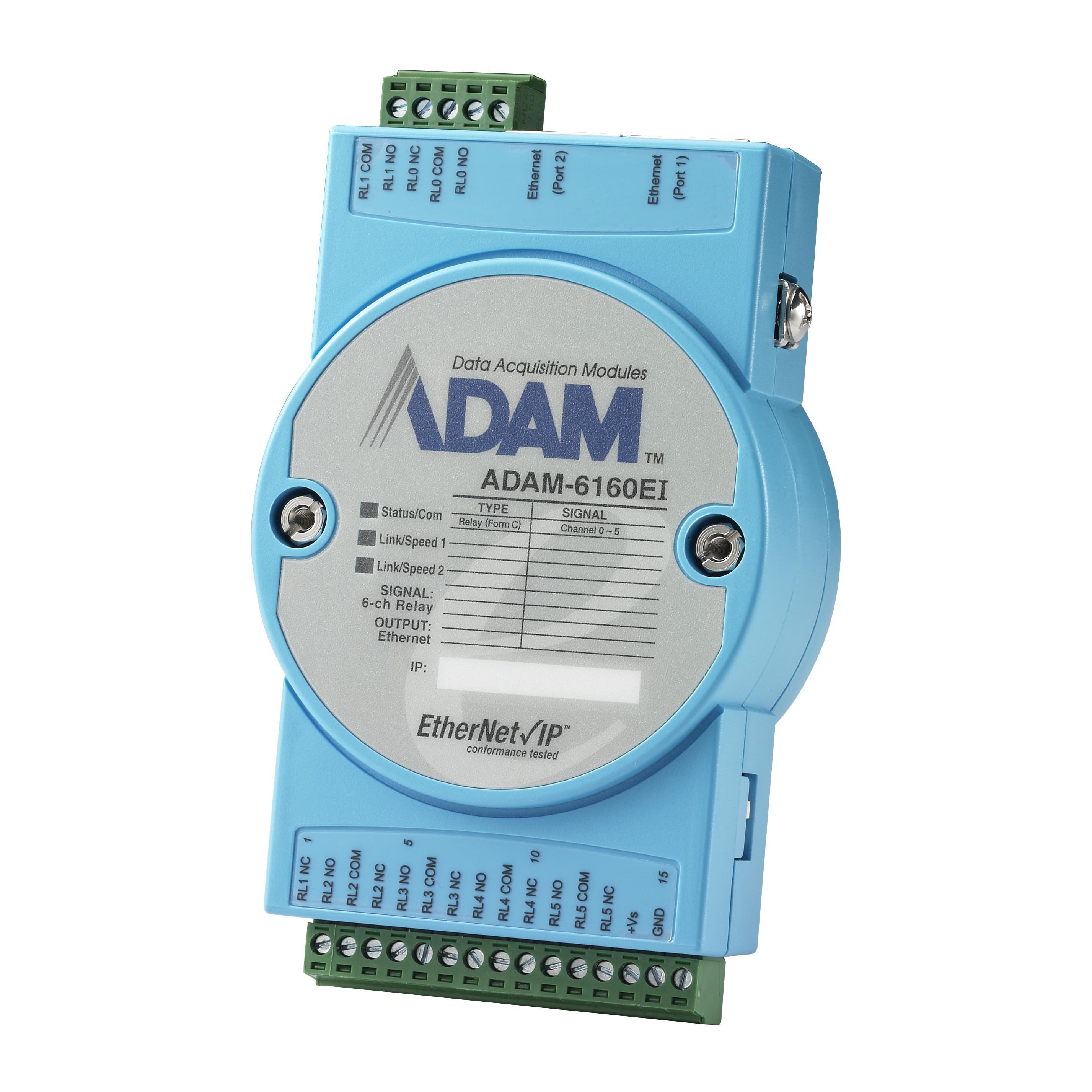

Advantech ADAM-6160EI-AE

6Relay EtherNet/IP Fieldbus Remote I/O.

$445.20
Part Number
  • ADAM-6160EI-AE
Highlights...

Features

  • Interface: Ethernet
  • Isolation Voltage: 2,500 VDC
  • Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
  • Protocol: Ethernet/IP
  • Input Voltage: 10~30 VDC
  • Contact Rating (Resistive): 5 A @ 30 VDC, 5 A @ 250 VAC
  • Relay Type: 1 x Form A, 5 x Form C
  • 6ch relay
  • Protocol : EtherNet/IP
  • 2 x RJ-45 LAN for Daisy-chain connectivity
  • 2500VDC isolation protection
Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections, ADAM-6160EI, 6-ch relay output EtherNet/IP module, is very resistant to field interference. It is also equipped with the EtherNet/IP protocol, and allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chain connectivity provides a more scalable system with fewer wires to help avoid interference common in factory settings. More importantly, Advantech’s ADAM.NET Utility comes bundled with each ADAM-6100 module, allowing users to configure, set, and test ADAM-6100 modules through Ethernet.
