Name: Advantech UNO-3283G-674BE
Price: 2242.0 USD
Availability: BackOrder

Advantech UNO-3283G-674BE — Advantech-UNO-3283G-674BE

Advantech-UNO-3283G-674BE
Advantech-UNO-3283G-674BE
Advantech-UNO-3283G-674BE

$2,242.00

Part Number

UNO-3283G-674BE

Highlights...

UNO-3283G-674BE
By Advantech
FREE Shipping
Call for availability

Features

Ingress Protection: IP20
Relative Humidity: 10~95% RH (non-condensing)
Shock Protection: 50 G, half sine
Vibration Protection: 4 Grms, random
Certification: CE, FCC, UL, CCC, BSMI
CPU: 6th Gen. IntelÂ® Coreâ„¢ i7-6822EQ 2.0GHz Quad-Core
Graphics Engine: IntelÂ® HD Graphics
Memory: 1 x SO-DIMM with 8 GB DDR4 2133 MHz, 1 x DDR4 SO-DIMM Slot
OS Support: MicrosoftÂ® Windows 10 2019 LTSC, WES7, Linux
Power Input: 12~36 VAC
Storage: 2 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x CFast
System Chip: Intel QM170
Audio: Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header)
Displays: 1 x HDMI, 1 x DVI-I
Expansion: 2 x Full-size mPCIe Slot, 1 x PCIe x16, 1 x PCI
LAN Ports: 2 x 10/100/1000 Mbps
Power Connector: 2 x 3-Pin Terminal Block
Serial Ports: 2 x RS-232/422/485, 2 x RS-232 (Pin Header)
USB Ports: 6 x USB 3.0
Dimension (W x H x D): 142 x 177 x 238 mm
Enclosure: Aluminum housing
Weight (Net): 4 kg
6th Generation IntelR Quad Core Processors with 8GB DDR4 Memory
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
1 x PCIex16, 1x PCI, 2 x mPCIe (2 x full), 1x CFast slot, 1 x mSATA slot (optional)
Thumb screw for easy maintenance
Hot-Swappable HDD/SSD support for RAID 0/1
Easily exchangeable RTC battery
Supports Fieldbus Protocol by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)

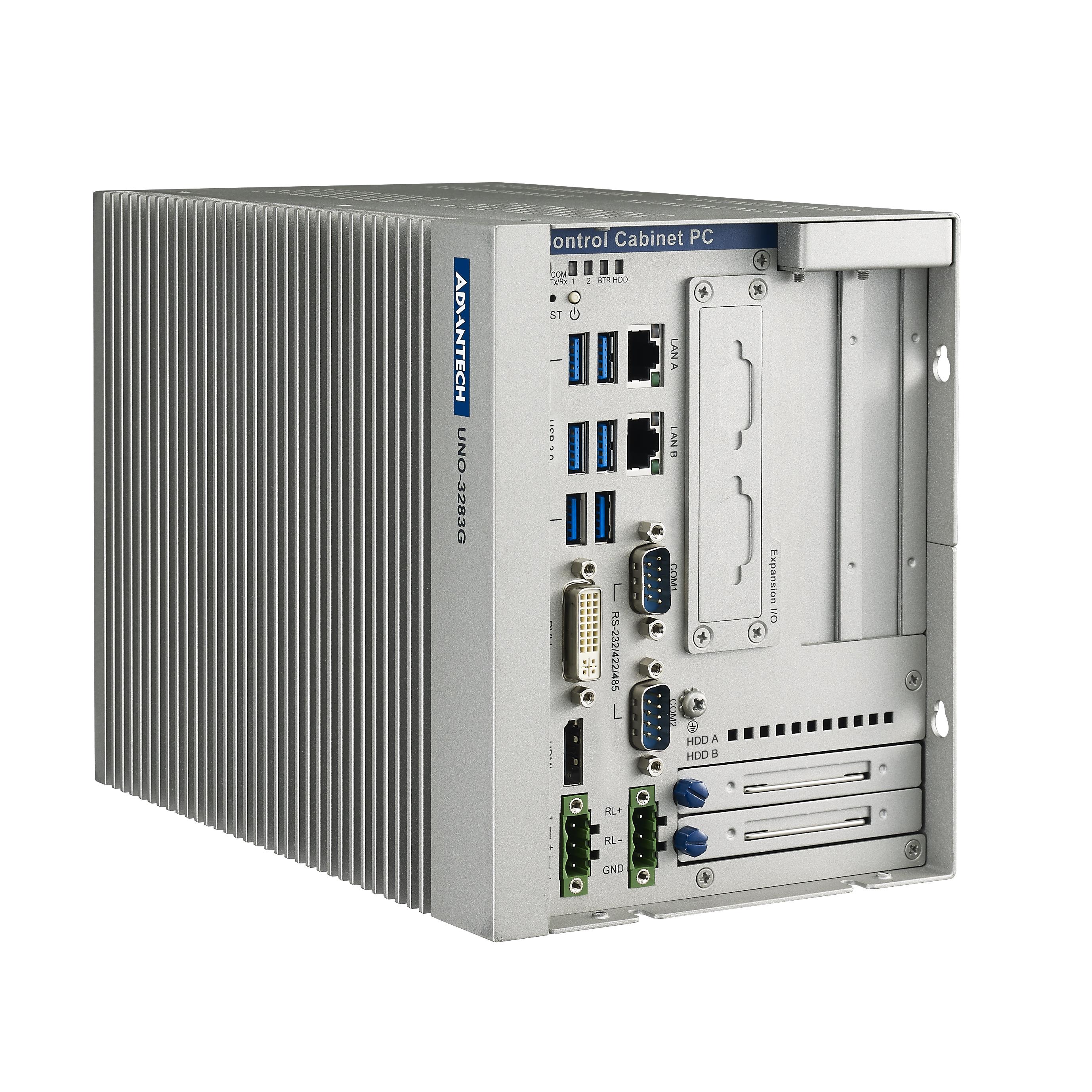

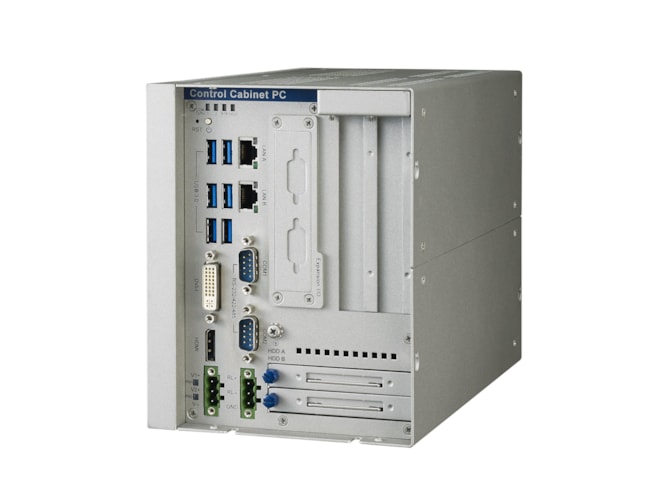

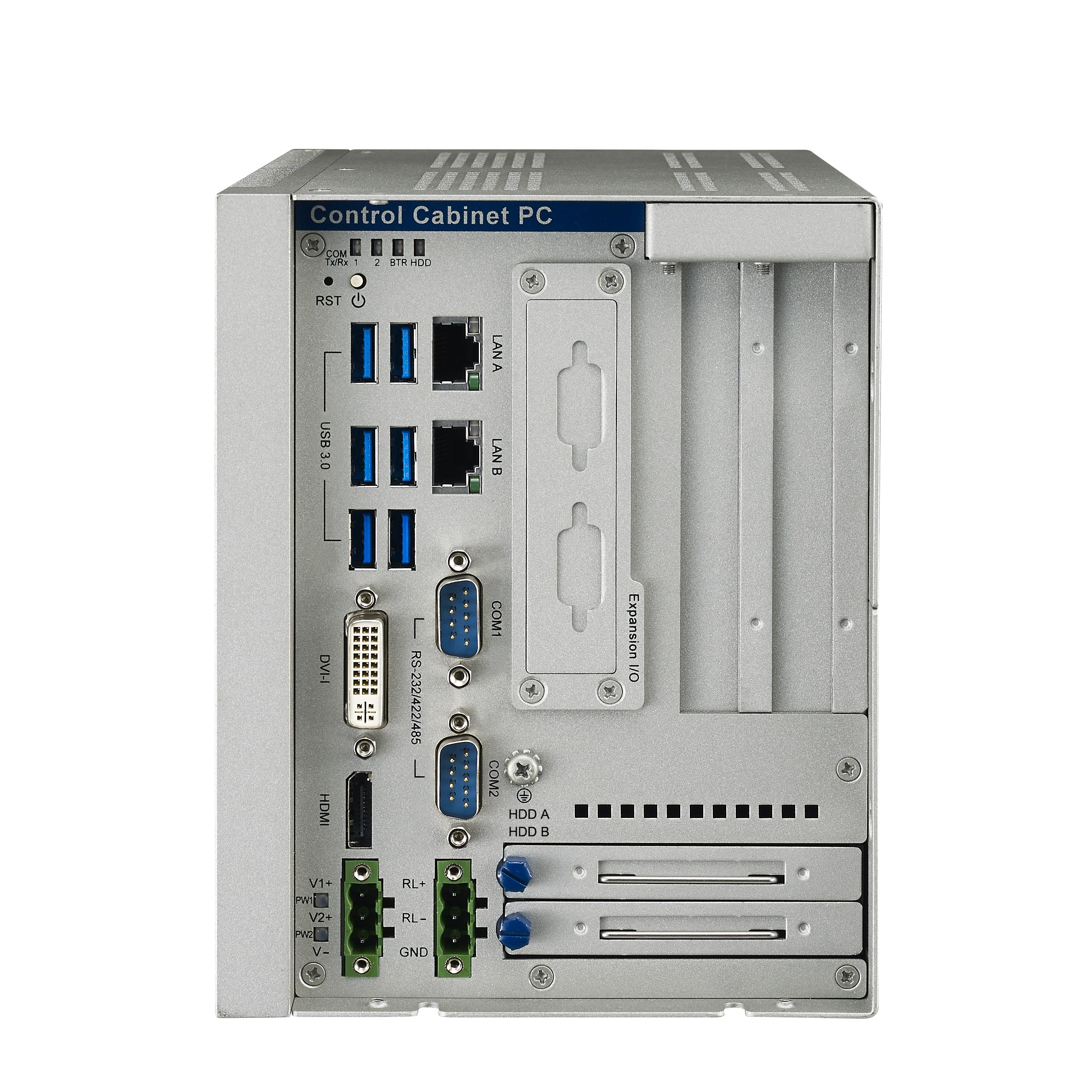

The high-performance fanless control cabinet PC UNO-3283G/ 3285G equipped with a IntelÂ® 6th Gen Coreâ„¢ i7/ i5/ i3 processor and QM170 PCH chipset, rich I/O including 6 x USB 3.0, 2 x GigaLAN, 2 x RS-232/422/485, and 2 x RS-232 (pin header) ports, as well as DVI-I and HDMI display interfaces, UNO-3283G/ 3285G is designed to deliver high-performance computing and maximum flexibility for industrial automation applications. The provision of two hot-swappable HDD/SSD bays and up to 5 expansion slots (2 x PCIe x8, 2 x PCI) supports the integration of modular peripherals and ensures flexible installation in diverse cabinet configurations. In addition to an exchangeable RTC battery that can be accessed via the removable top cover for convenient maintenance, the system features dual power inputs that ensure a stable power supply.
