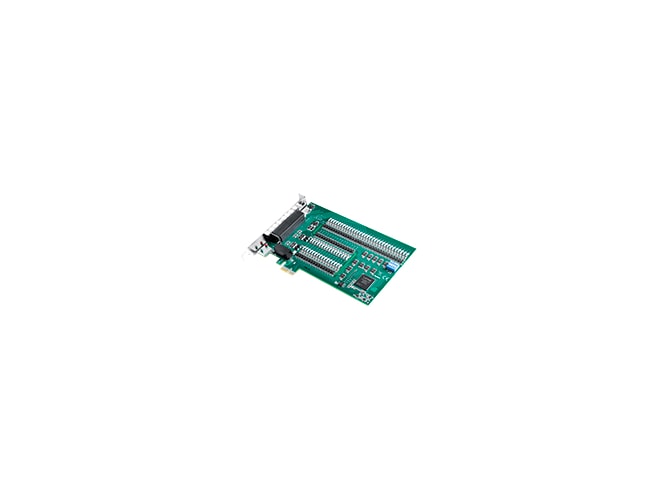

Advantech PCIE-1758DI-AE

Features

• Channels: 128 (Isolated)
• Isolation Protection: 2,500 VDC
• Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
• Interrupt handling capability for each channel
• 128 isolated digital output channels (64 channels for PCI-1758UDIO)
• High-voltage isolation on output channels (2,500 VDC)
• Wide output range (5 ~ 40 VDC)
• High-sink current for isolated output channels (90 mA max./channel)
• BoardIDâ„¢ switch
• Digital output value retained after hot system reset
• PCIE-1758DI and PCIE-1758DIO
• 128 isolated digital input channels (64 channels for PCI-1758UDIO)
• Wide input range (10 ~ 30 VDC)
• High ESD protection (2,000 VDC)
• Digital Filter function
• BoardIDâ„¢ switch
• PCIE-1758DO and PCIE-1758DIO
