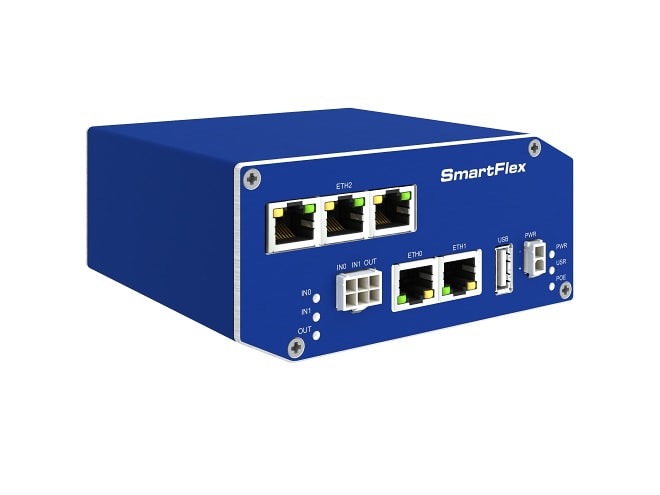

Advantech BB-SR30009120-SWH

SmartFlex, Global, 5x Ethernet, PoE PD, Metal, Without Accessories.

$644.78
Part Number
  • BB-SR30009120-SWH
Highlights...

Features

  • Global: Yes
  • I/O: 2 x DI + 1 x DO
  • MicroSD: Yes
  • Power Input (DC): 10 ~ 60 VDC
  • Sleep Mode: Yes
  • Operating Humidity: 0~95%
  • Dimensions (W x H x D): 125 x 55 x 97 mm
  • Enclosure (Metal): Metal
  • Mounting (DIN-rail): Yes
  • Accessories: Without accessories
  • Warranty Period: 3 years
  • Global
  • VPN, Multiple LAN/WAN configuration, DIN rail mounting
  • Powerful CPU and Memory, Hosting of SW IoT applications
  • 5x ETH, PD PoE+, PoE+ IEEE 802.3at & 802.3af on 2x ETH
  • USB, I/O 2x DI + 1x DO, MicroSD
  • Certifications: CE, FCC/IC, UL C1D2/Atex, RCM
  • Advanced networking, Diagnostics, VPN support, Firewall
The SmartFlex is designed and manufactured for use in tough environmental conditions. Specifications include wide operating temperature ranges from -40 to 75 °C (-20 to 60 °C LTE450 module). It accepts input voltage ranges from 10 V DC to 60 V DC and is equipped with sleep mode for reducing electrical consumption.
