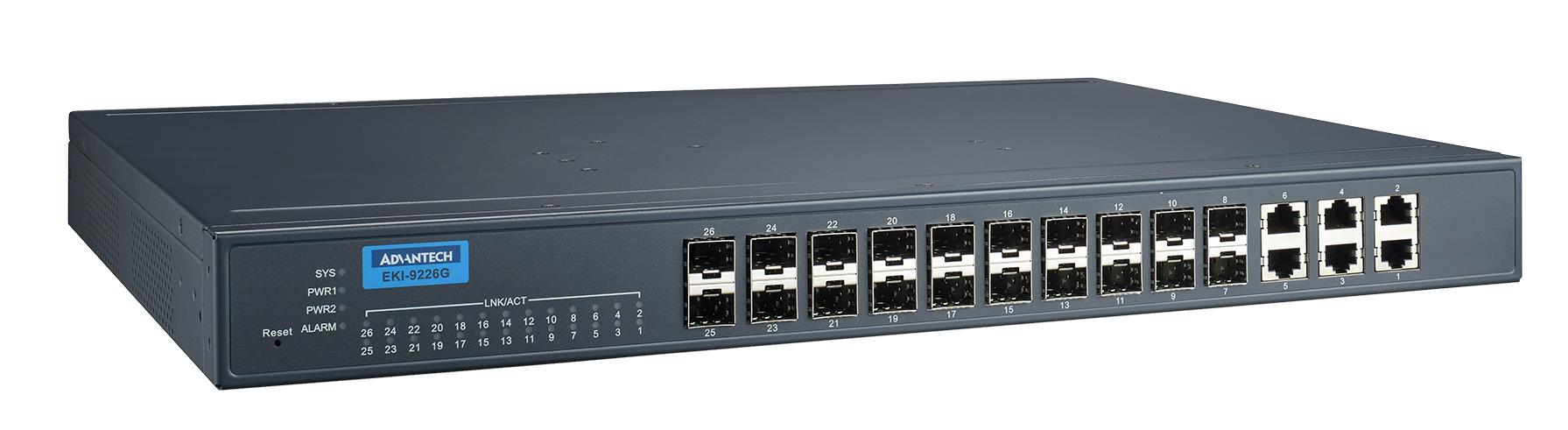

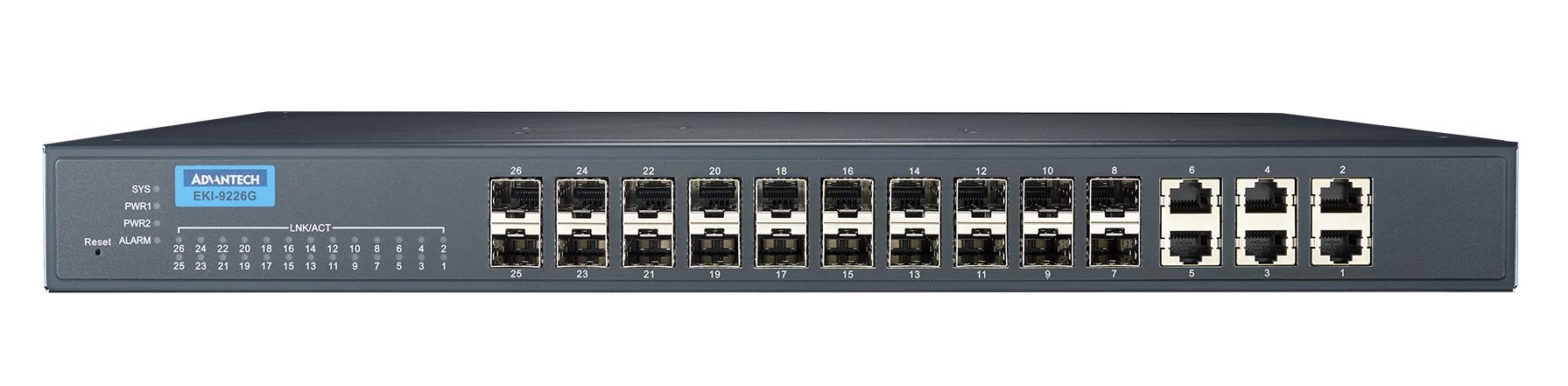

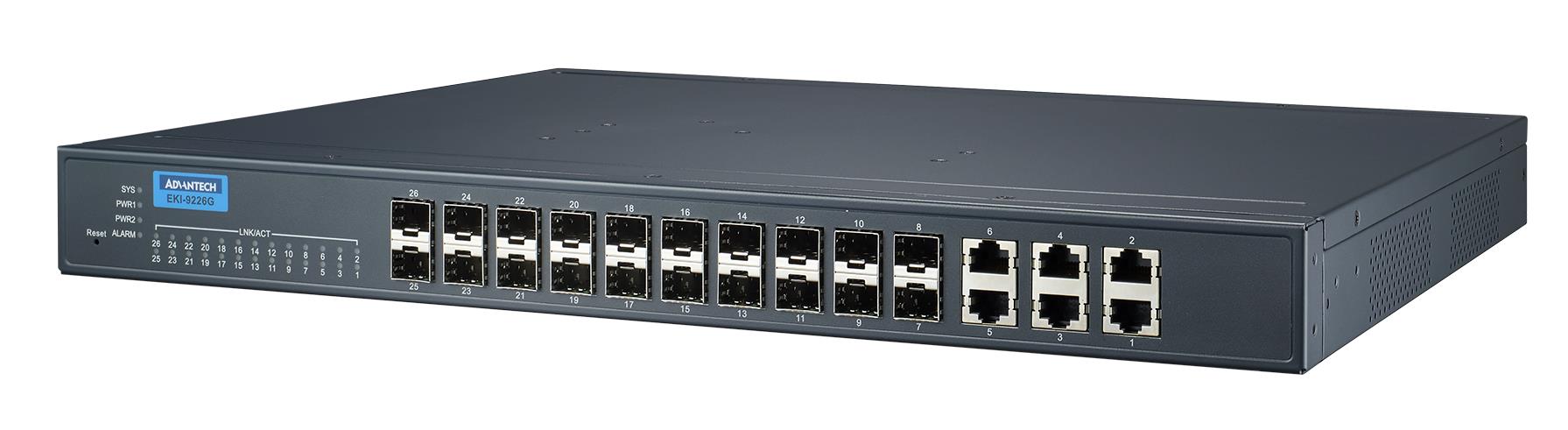

Advantech EKI-9226G-20FOI-AE

20G SFP + 6GE Managed Ethernet Switch, 90 ~ 264VAC/88 ~ 370VDC.

$3,061.73
Part Number
  • EKI-9226G-20FOI-AE
Highlights...

Features

  • EMI: CE, FCC Class A
  • Substation: IEC-61850-3
  • Trackside: EN 50121-4
  • Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
  • Freefall: IEC 60068-2-32
  • Safety: UL 60950-1
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Relative Humidity: 10~95%
  • Temperature (Max. Operating): 85°C (185°F)
  • Fiber Transmission Distance: Depends on fiber module
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Dimensions (W x H x D): 438 x 44 x 315.2 mm
  • Enclosure (Metal): Metal shell
  • IP Rating: IP30
  • Mounting (Rack Mount): Yes
  • Weight: 6.5 kg
  • Method: Telcordia, GB
  • Power Consumption: 35W (system)
  • Power Input (AC): 90 ~ 264 VAC
  • Power Operating Current: 0.31A @ 110VAC (system)
  • Reverse Polarity: Present
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 52Gbps
  • Warranty Period: 5 years

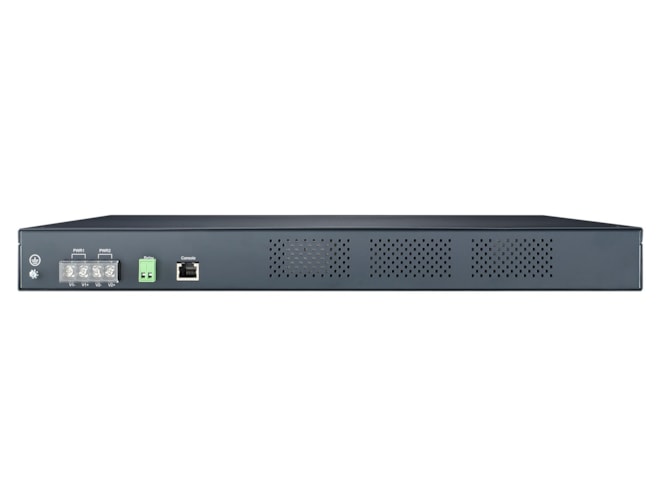

  • Dual Power input and 2 relay output
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • SFP socket for Easy and Flexible Fiber Expansion
  • 20 x Gigabit SFP ports + 6 x Gigabit x RJ-45 ports
The EKI-9226G series are designed for power substation automation applications which meet IEC 61850-3 and IEEE1613 certification. Thanks to its -40 ~ 85ËšC wide operating temperature it can operate well in extremely harsh environments. Designed with 20 Gigabit SFP ports and 6 Gigabit RJ-45 ports.It provides abundant and flexible connection ports. Finally, the EKI-9226G series contain dual power inputs to ensure system stability and 2 relay output for greater user flexibility.
