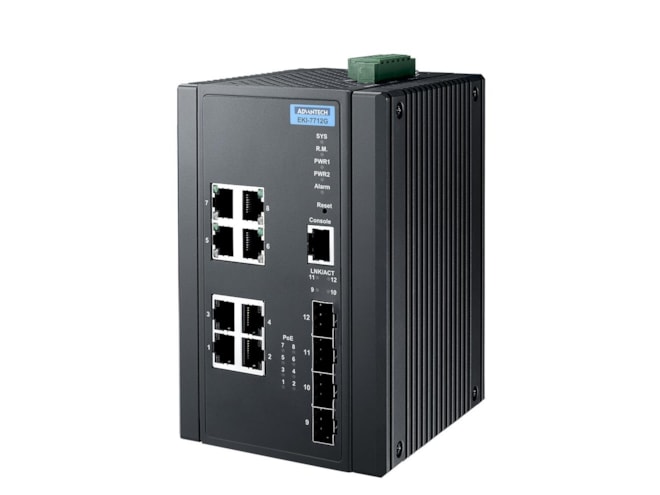

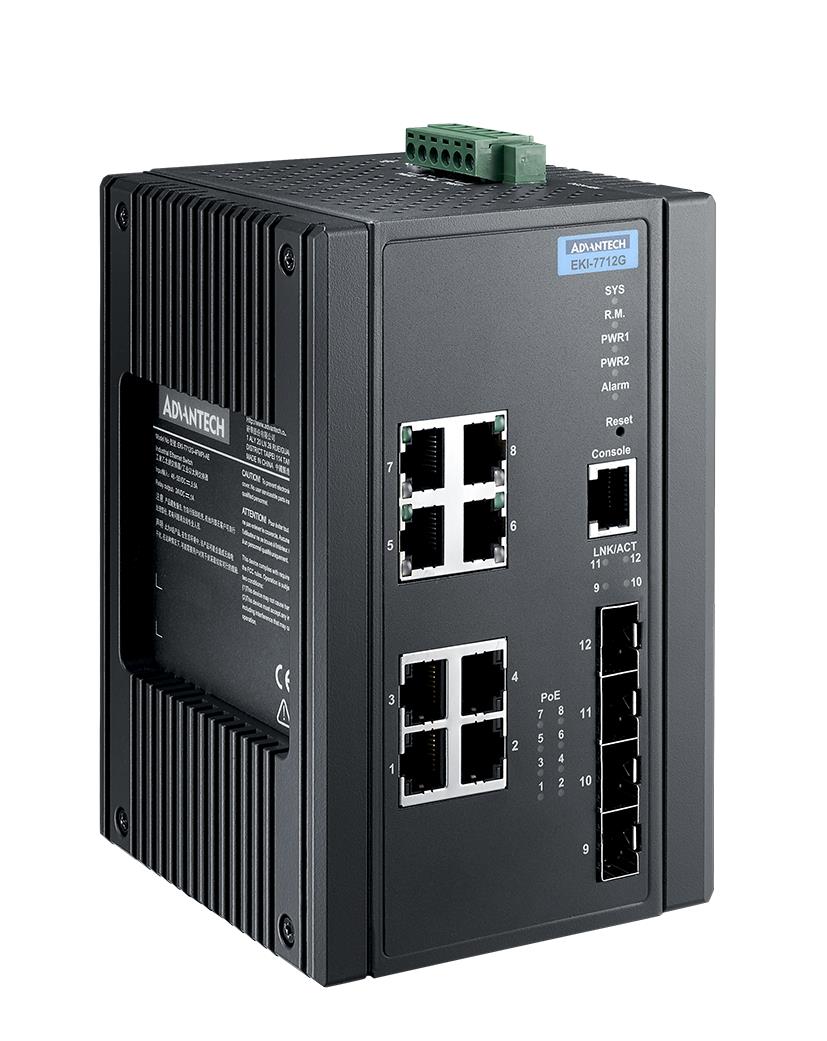

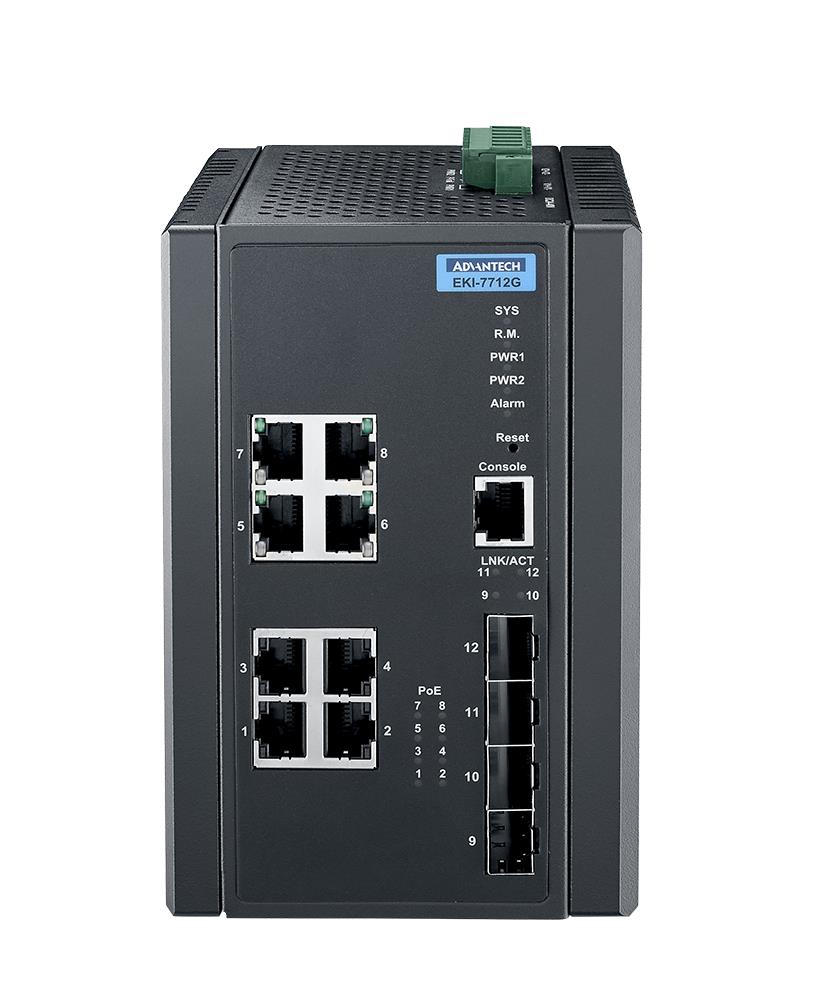

Advantech EKI-7712G-4FMPI-AE

12port Gigabit Managed Ethernet Switch with 8 IEEE802.3af/at/bt, -40~70℃.

$2,617.23
Part Number
  • EKI-7712G-4FMPI-AE
Highlights...

Features

  • Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • EMI: CE, FCC Class A
  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: UL 62368
  • Temperature (Max. Operating): 70°C (158°F)
  • Relative Humidity: 10~95%
  • Fiber Transmission Distance: Up to 110 km
  • Fiber Port Connector Type: SFP cage
  • Fiber Port Interface: SFP
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (Wall): Yes
  • Mounting (DIN-rail): Yes
  • Weight: 1.1 kg
  • IP Rating: IP30
  • Dimensions (W x H x D): 97 x 152 x 105 mm
  • PoE Budget: 370W
  • PoE Port Number: 6 x 802.3at + 2 x 802.3bt
  • Power Operating Current: 0.12A @ 55VDC
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Input (DC): 55 ~ 57 VDC
  • Power Consumption: 12W
  • Reverse Polarity: Present
  • Jumbo Frame: 9,216 bytes
  • Switch Fabric Speed: 24Gbps
  • Packet Buffer Size: 4.1M bit
  • MAC Table Size: 8K
  • Warranty Period: 5 years
  • Support 2 x IEEE 802.3bt class 8 90W PoE ports, 6 x IEEE 802.3at/af PoE ports and 4 x SFP ports
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
  • IXM function enables fast deployment
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
  • SFP socket for easy and flexible fiber expansion
  • NEMA TS2 for traffic control
The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x 802.3 af/at PoE Gigabit ports, 2 x 802.3 bt PoE Gigabit ports, and 4 x SFP ports, the EKI-7712G-4FMPI provides multiple usage for different scenario. The EKI-7712G-4FMPI is embedded with Advantech’s IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. The series are also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of
