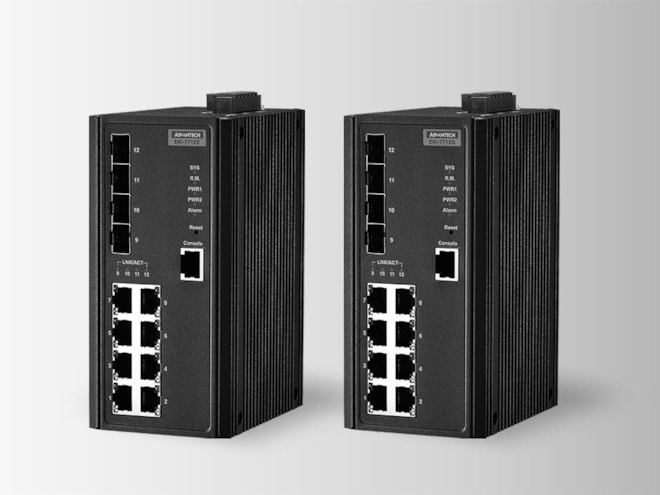

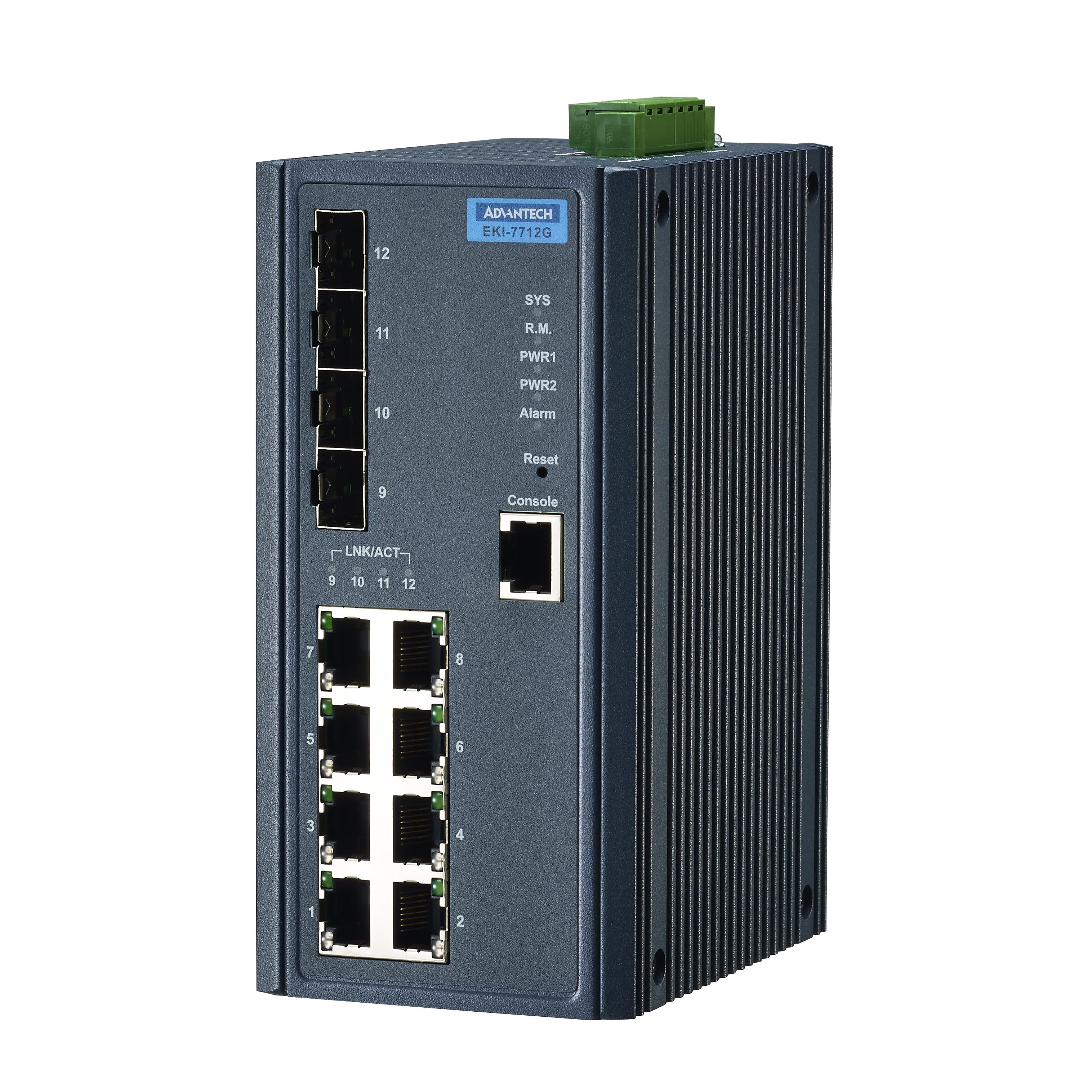

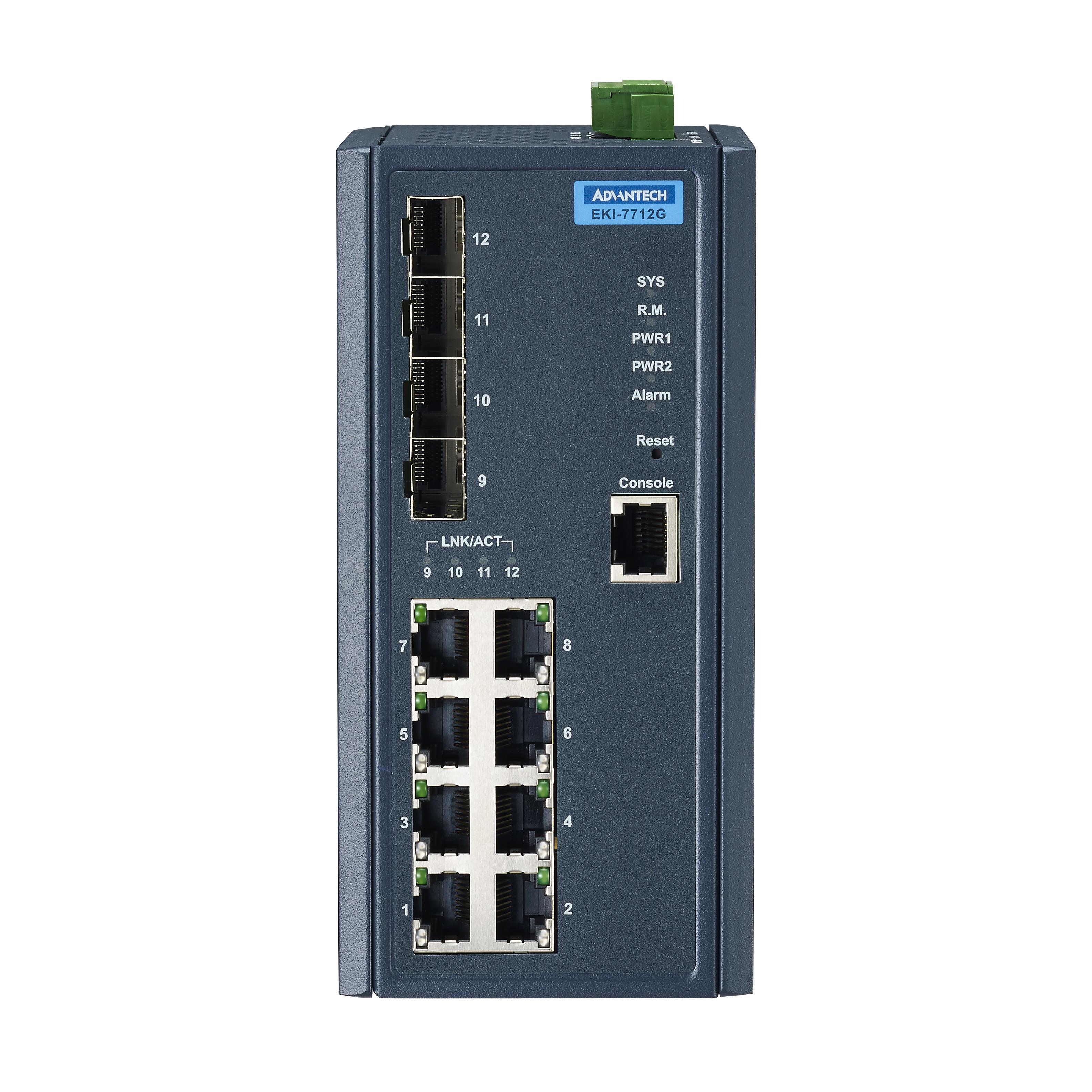

Advantech EKI-7712G-4FI-AU

8G + 4SFP Port Managed Ethernet Switch Wide Temp.

$1,212.36
Part Number
  • EKI-7712G-4FI-AU
Highlights...

Features

  • Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • EMI: CE, FCC Class A
  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: UL 61010
  • Relative Humidity: 10~95%
  • Fiber Transmission Distance: Up to 110 km
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Port Connector Type: 8 x RJ-45, 4 x SFP
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Weight: 1.1 kg
  • IP Rating: IP30
  • Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
  • Method: Telcordia(Relax), GB
  • Time: 1,001,782 hours
  • Power Operating Current: 0.25A @ 48VDC (system)
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Input (DC): 12 ~ 48 VDC
  • Power Consumption: 12.1W (system)
  • Jumbo Frame: 9,216 bytes
  • Switch Fabric Speed: 24Gbps
  • Packet Buffer Size: 4.1M bit
  • MAC Table Size: 8K
  • Warranty Period: 5 years
  • 8 Gigabit ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • Dual 12~48 VDC power input and 1 relay output
EKI-7712G-4F/4FI supports 8 Gigabit ports and 4 SFP ports, allowing users to connect many devices. It is embedded with IXM function, offering fast deployment and saving engineers time and costs. It also supports Network Management System to help with networking maintenance and failure prevention.
