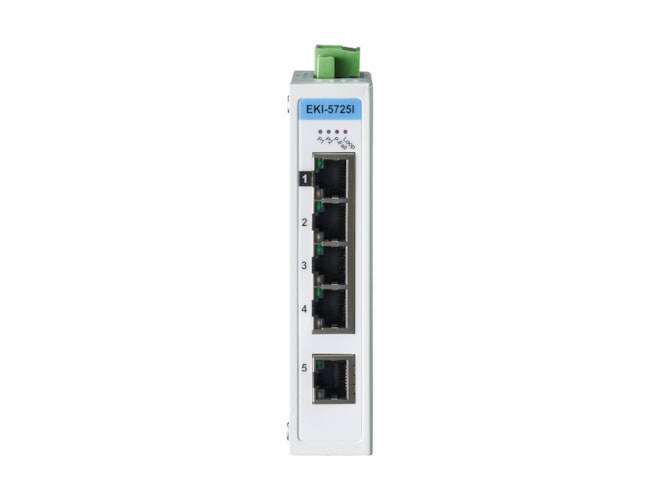

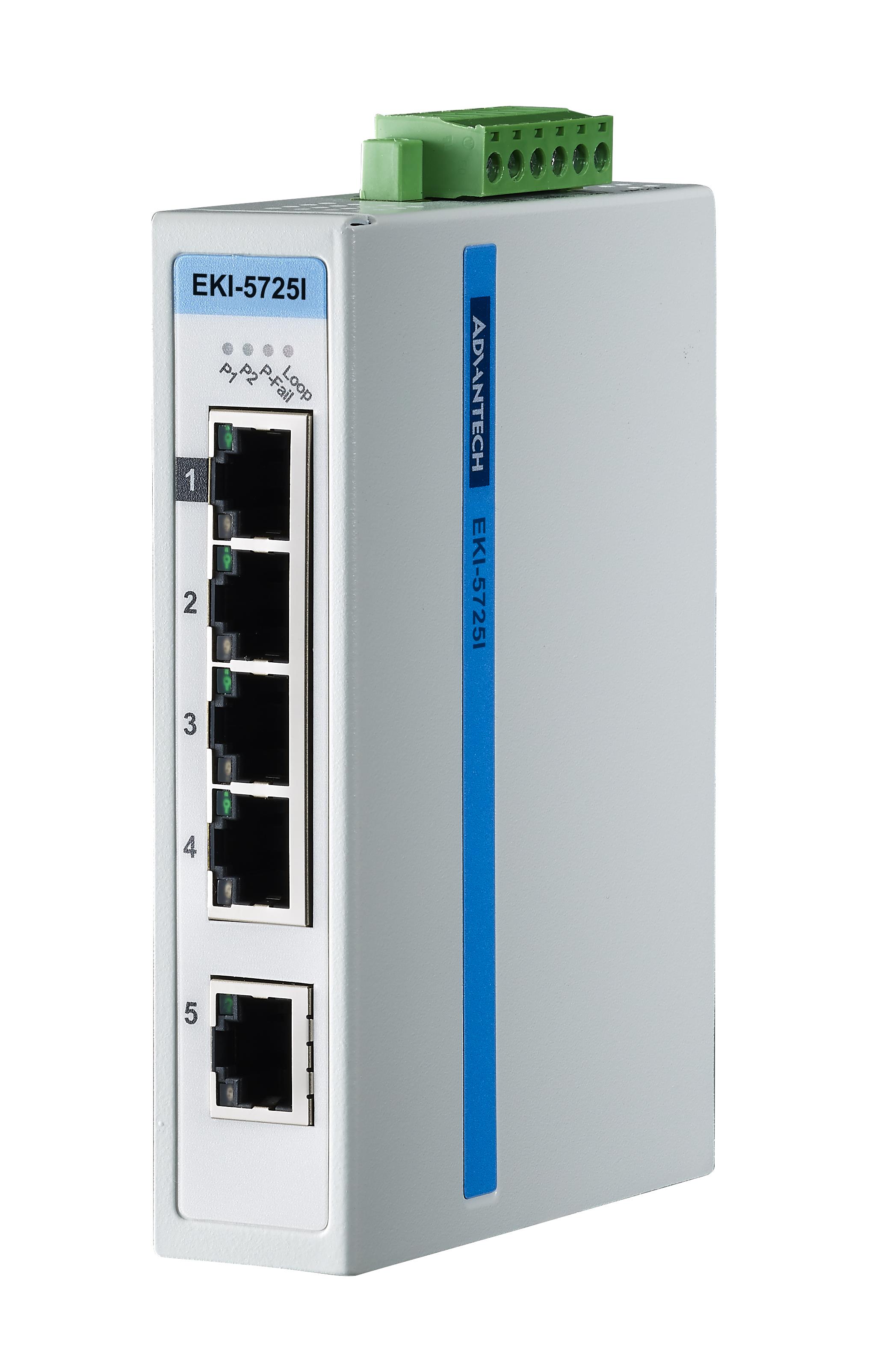

Advantech EKI-5725I-AE

5 port Full Gigabit Unmanaged Ethernet Switch, ATEX/C1D2, -40~75℃.

$261.72
Part Number
  • EKI-5725I-AE
Highlights...

Features

  • EMI: CE, FCC
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: UL508, Class 1 Division 2, ATEX
  • Temperature (Max. Operating): 75°C (167°F)
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 27 x 120 x 93 mm
  • IP Rating: IP30
  • Weight: 0.4 kg
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Consumption: Max. 2.4W
  • Power Input (DC): 12 ~ 48 VDC
  • Power Operating Current: 0.06A @ 24V
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 2K
  • Packet Buffer Size: 1M bit
  • Switch Fabric Speed: 10Gbps
  • Warranty Period: 5 years
  • Overload Current: Present
  • Reverse Polarity: Present
  • Communicates with SCADA software via Modbus/TCP
  • Communicates with NMS (Networking management system) via SNMP
  • Port-based QoS for deterministic data transmission
  • 8.4~52.8 V DC wide-range power input
  • EMS level 3 protection for extreme outdoor environments
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Supports redundant 12~48V DC power input and P-Fail relay
  • Loop detection
The EKI-5725/I and EKI-5728/I are the world’s first convergence switches for process control and IT networking management. EKI-5528I uses Modbus/TCP to communicate with SCADA software and SNMP to communicate with the Networking Management System simultaneously, allowing read control over the devices
