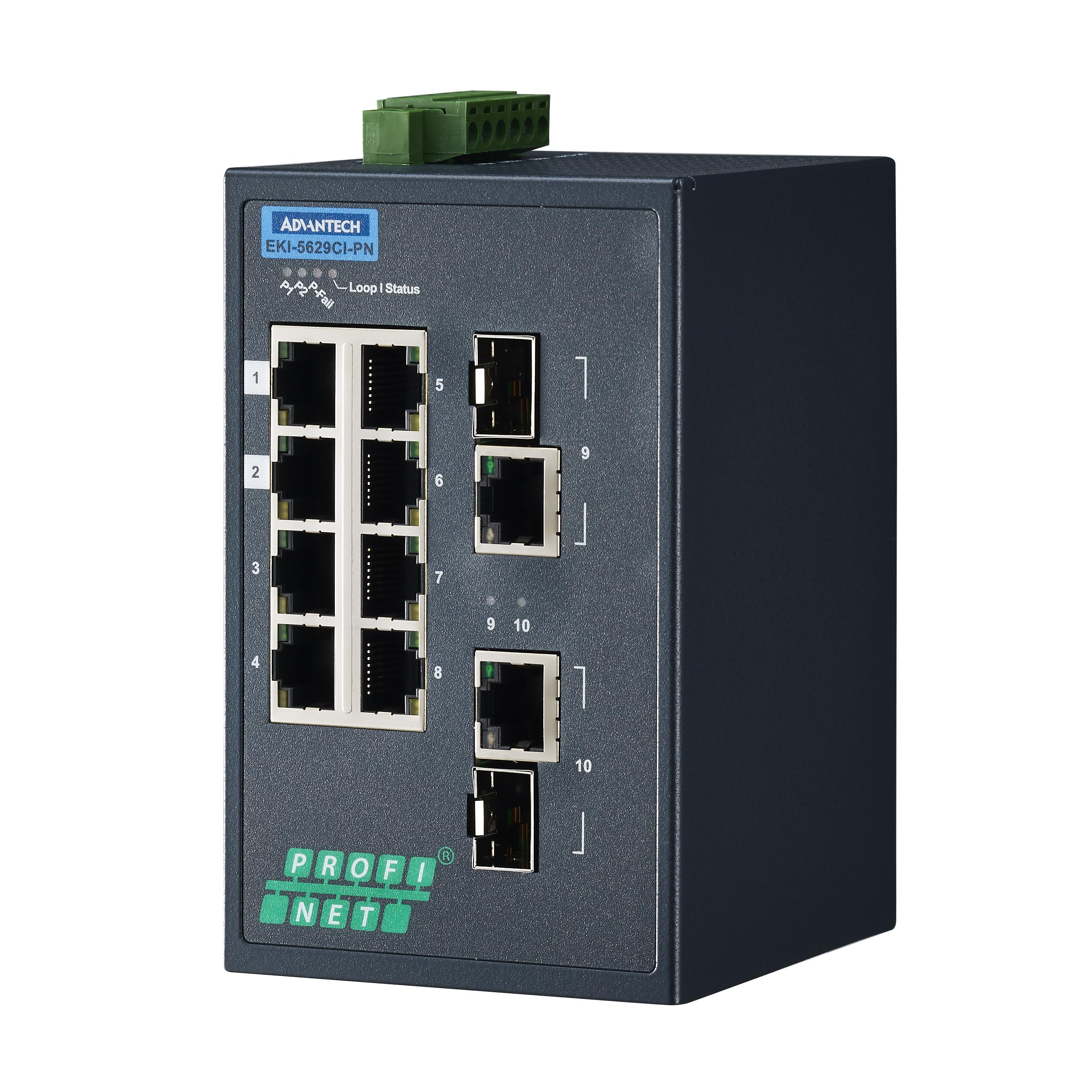

Advantech EKI-5629CI-PN-AE

Features

• EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• EMI: CE, FCC Class A
• Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
• Freefall: IEC 60068-2-32
• Safety: UL 508
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Relative Humidity: 10~95%
• Temperature (Max. Operating): 75°C (167°F)
• Fiber Port Connector Type: SFP cage
• Fiber Port Interface: SFP
• Fiber Transmission Speed: 10/100/1000 Mbps
• Fiber Transmission Distance: Up to 110 km
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Distance: 100 m
• RJ-45 Transmission Speed: 10/100 Mbps
• RJ-45/SFP Combo Port Speed: 10/100/1000 Mbps
• PROFINET: Yes
• Ethernet: Yes
• Dimensions (W x H x D): 74 x 120 x 84 mm
• IP Rating: IP30
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Weight: 0.7 kg
• Method: Telcordia(Relax), GB
• Time: 3,183,604 hours
• Support PoE: No
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Consumption: 5.8W
• Power Input (DC): 12 ~ 48 VDC
• Power Operating Current: 0.12A @ 48Vdc (system)
• Reverse Polarity: Present
• Jumbo Frame: 9,216 bytes
• MAC Table Size: 8K
• Packet Buffer Size: 4.1M bit
• Switch Fabric Speed: 5.6Gbps
• Warranty Period: 5 years
• 8 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports (EKI-5629C/I-PN)
• 8 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports (EKI-5629C/I-PN)
• Entry-Level Managed Switch
• Entry-Level Managed Switch
• IXM function enables fast deployment
• IXM function enables fast deployment
• Provides GSDML files
• Provides GSDML files
• Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
• Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
• Supports Media Redundancy Protocol (Media Redundancy Client)
• Supports Media Redundancy Protocol (Media Redundancy Client)
