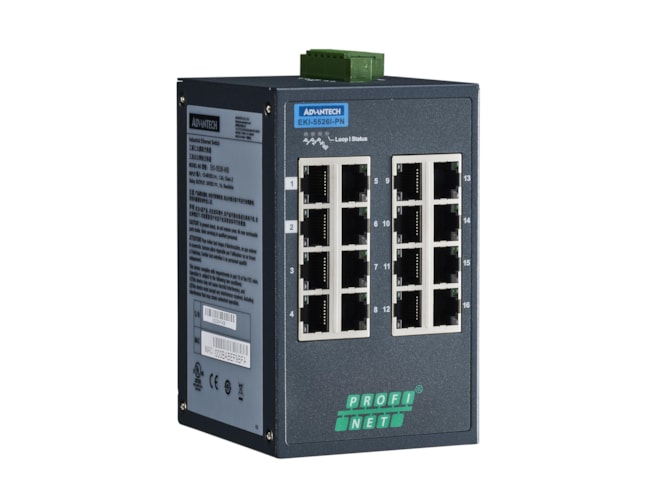

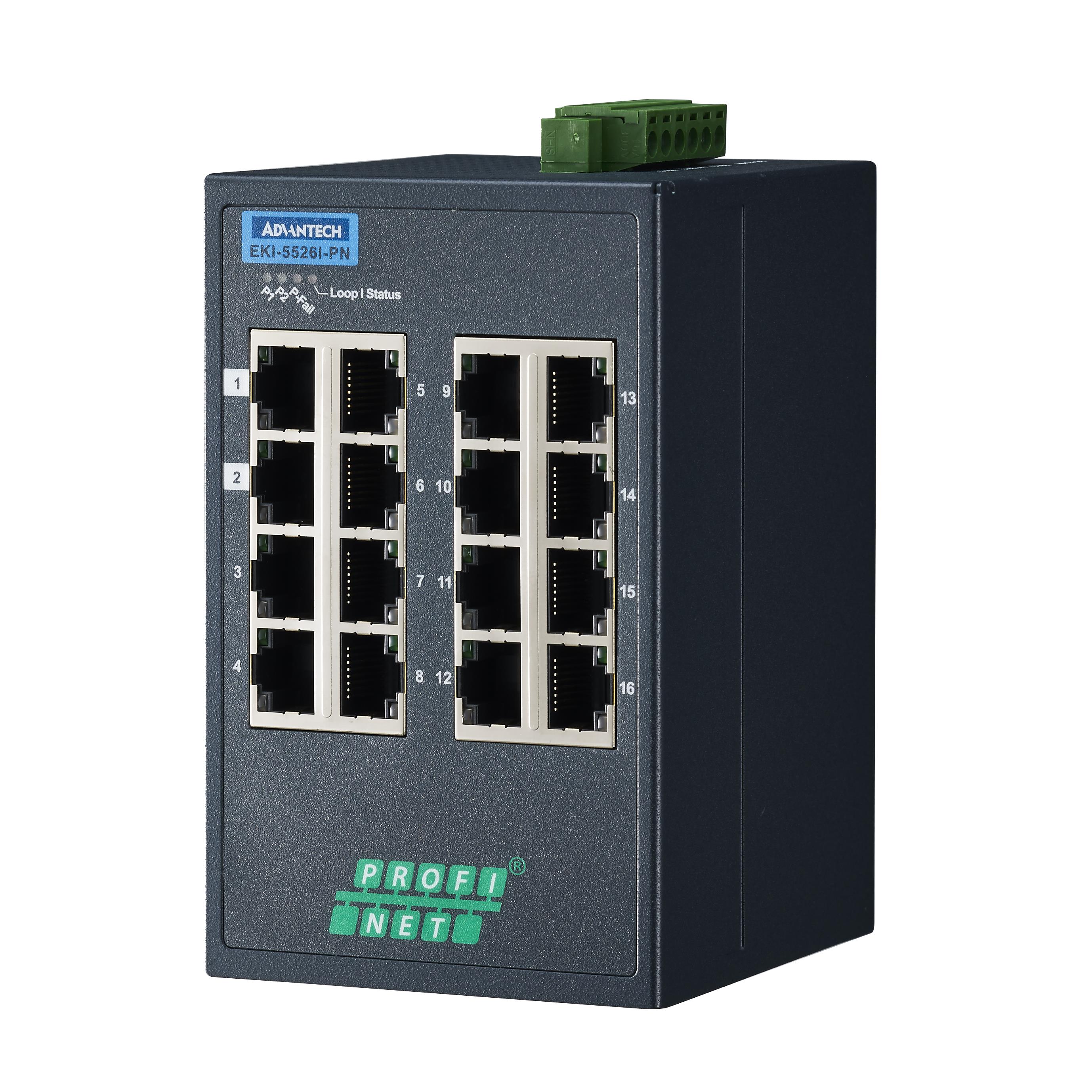

Advantech EKI-5526I-PN-AE

16 10/100Mbps Lite Managed Ethernet Switch support PROFINET, -40~75℃.

$1,075.01
Part Number
  • EKI-5526I-PN-AE
Highlights...

Features

  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • EMI: CE, FCC Class A
  • Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
  • Freefall: IEC 60068-2-32
  • Safety: UL 508
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Relative Humidity: 10~95%
  • Temperature (Max. Operating): 75°C (167°F)
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • PROFINET: Yes
  • Ethernet: Yes
  • Dimensions (W x H x D): 74 x 120 x 84 mm
  • IP Rating: IP30
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Weight: 0.7 kg
  • Method: Telcordia(Relax), GB
  • Time: 2,788,343 hours
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Consumption: 8W
  • Power Input (DC): 12 ~ 48 VDC
  • Power Operating Current: 0.16A @ 48VDC (system)
  • Reverse Polarity: Present
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 3.2Gbps
  • Warranty Period: 5 years
  • 16 ports Fast Ethernet RJ-45 (EKI-5526/I-PN)
  • Entry-Level Managed Switch
  • IXM function enables fast deployment
  • Provides GSDML files
  • Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
  • Supports Media Redundancy Protocol (Media Redundancy Client)
The EKI-5526I-PN are new generation of entry-level managed switch products. They support media redundancy protocols and meet the PROFINET real time standard. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.
