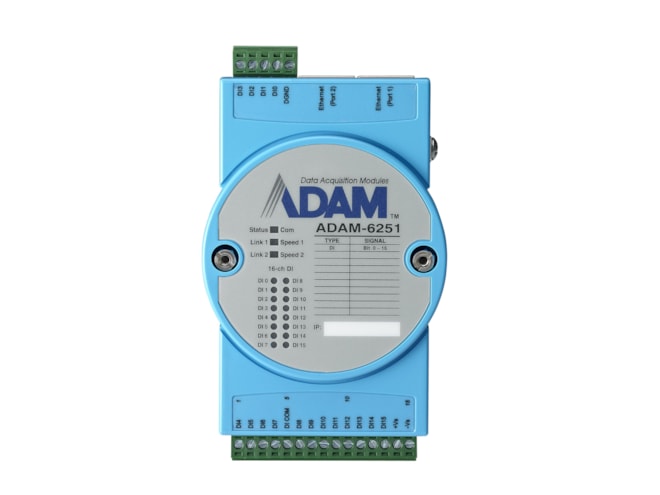

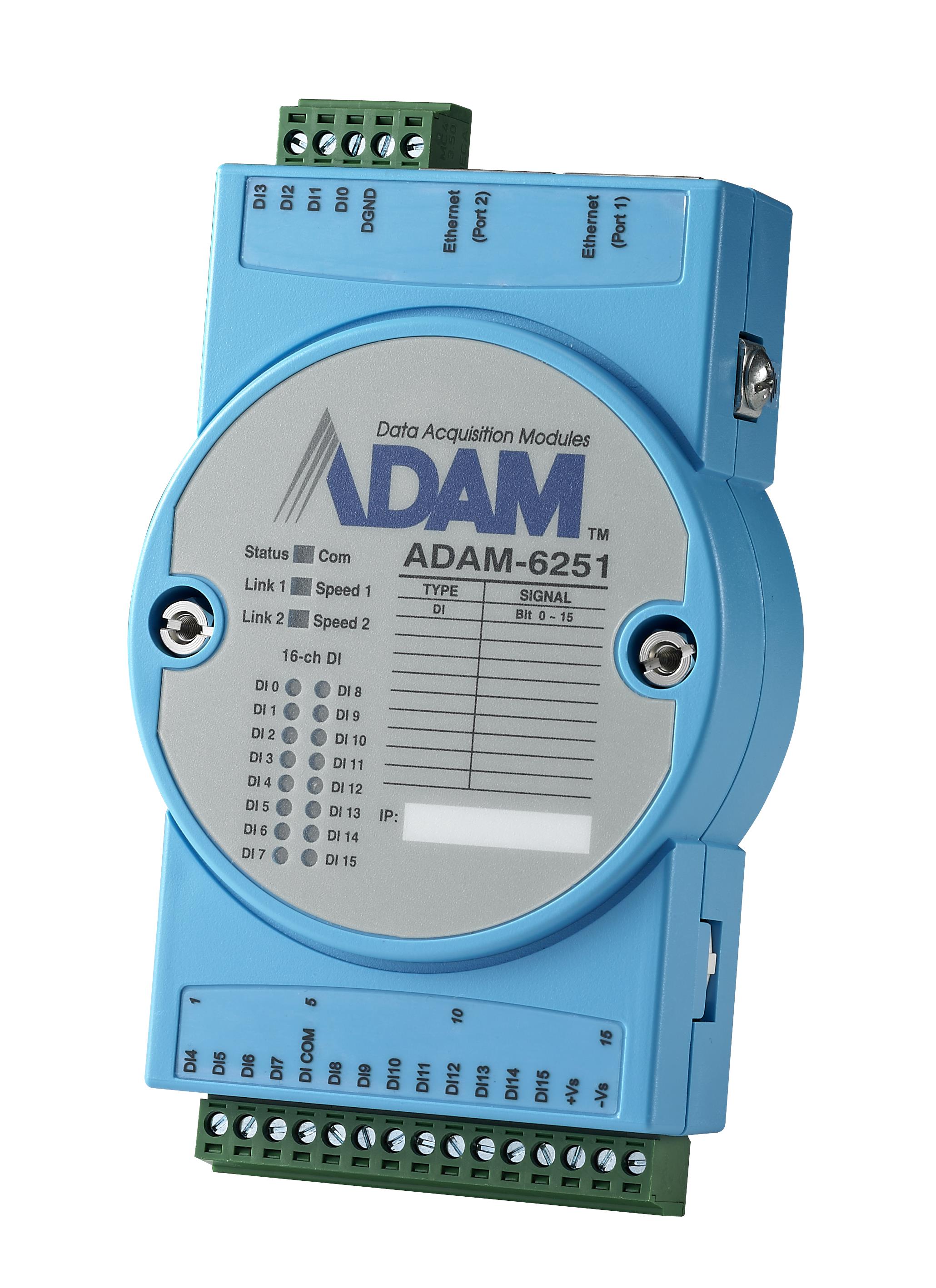

Advantech ADAM-6251-B

16DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O.

$258.30
Part Number
  • ADAM-6251-B
Highlights...

Features

  • Interface: Ethernet
  • Isolation Voltage: 2,500 VDC
  • Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
  • Input Voltage: Dry Contact
  • Logic level 1: close to GND
  • Logic level 0: open
  • Wet Contact
  • Logic level 1: 10~30 VDC and -10~-30 VDC
  • Logic level 0: -3~3 VDC
  • Input Voltage: 10~30 VDC
  • Max. Input Frequency: 3 kHz
  • 16ch digital input(counter)
  • Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
  • GCL to perform basic logic control rules
  • Cloud access: Data update to Azure
  • Auto-bypass function to ensure daisy-chain data transmission
  • Peer-to-Peer function to map I/O status
  • Built-in web server
  • Watchdog timer to recover the system
In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.
