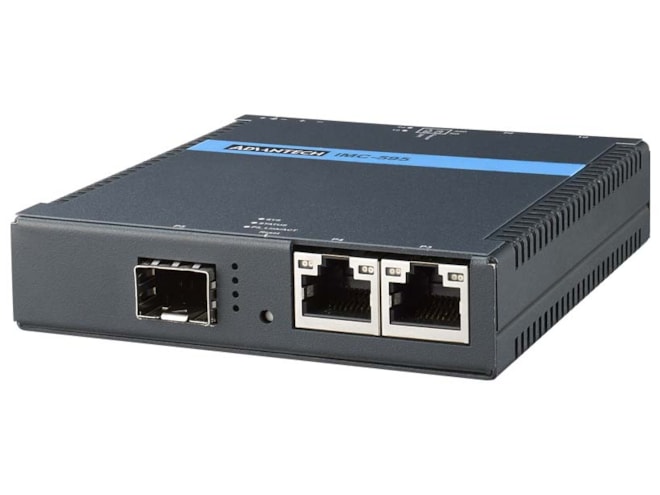

Advantech IMC-595MPI-A

4TX/1SFP Managed PoE BT Media Converter.

$672.00
Part Number
  • IMC-595MPI-A
Highlights...

Features

  • EMI: CE, FCC Class A
  • EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
  • Fiber Port Connector Type: SFP cage
  • Fiber Transmission Distance: Depends on fiber module
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 92.5 x 98 x 21 mm (3.65 x 3.86 x 0.83 in.)
  • IP Rating: IP30
  • Power Input (DC): 55 ~ 57 VDC
  • Warranty Period: 5 years
  • Versatile 5-port, total 180W power output media converter at extended temperature
  • Supports Switch/Injector mode setting by SNMP/iView
  • Supports SNMP/iView for remote management
  • Dip switch for LFPT and Power Force mode
  • Supports LLDP
  • Supports Jumbo Frames up to 9,216 bytes
  • Supports Modbus/TCP
  • Supports Broadcast Storm Control ON/OFF
Advantech's IMC-595MPI three-in-one mega PoE media converter is a compact, industrial grade solution that can serve as a fiber-to-Ethernet media converter, a 90W*2 PoE injector and a light management Ethernet switch.
