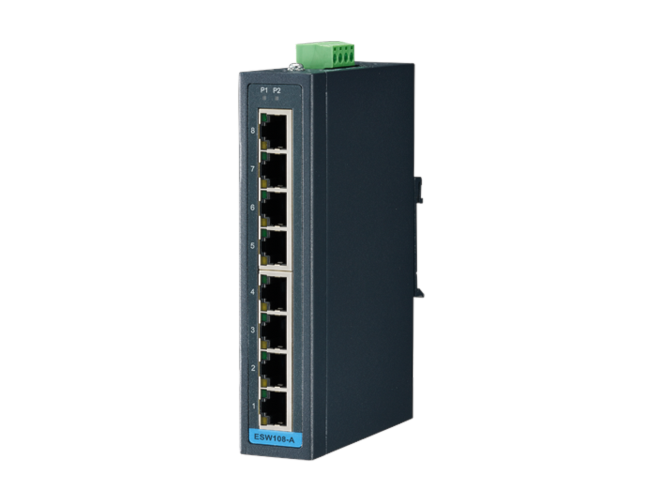

Advantech BB-ESW108-A

8 port Slim-type Unmanaged Ethernet Switch with Low VAC Power Input.

$180.60
Part Number
  • BB-ESW108-A
Highlights...

Features

  • EMI: CE, FCC Class A
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: EN 60950, UL60950, Class 1 Division 2
  • Temperature (Max. Operating): 75°C (167°F)
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
  • IP Rating: IP30
  • Support PoE: No
  • Power Connector Type: 4-pin removable terminal (power)
  • Power Consumption: 5.1W
  • Power Input (AC): 10~24 VAC
  • Power Input (DC): 12 ~ 48 VDC
  • Warranty Period: 5 years
  • Overload Current: Present
  • Reverse Polarity: Present
  • 8 x fast Ethernet ports with auto MDI/MDI-X
  • Supports 10/100 Mbps auto negotiation
  • Compact size with DIN rail and wall mount
  • Supports redundant 12~48 VDC or 10~24 VAC power input
  • Wide operating temperature range of -40 ~ 75°C
  • C1D2 for hazardous locations
The ESW108-A Managed Switch provides a C1D2 compliant fast Ethernet solution and comes with a compact metal enclosure, making it suitable for installation in narrow areas. The IP40-rated enclosure ensures protection against dusty environment.
