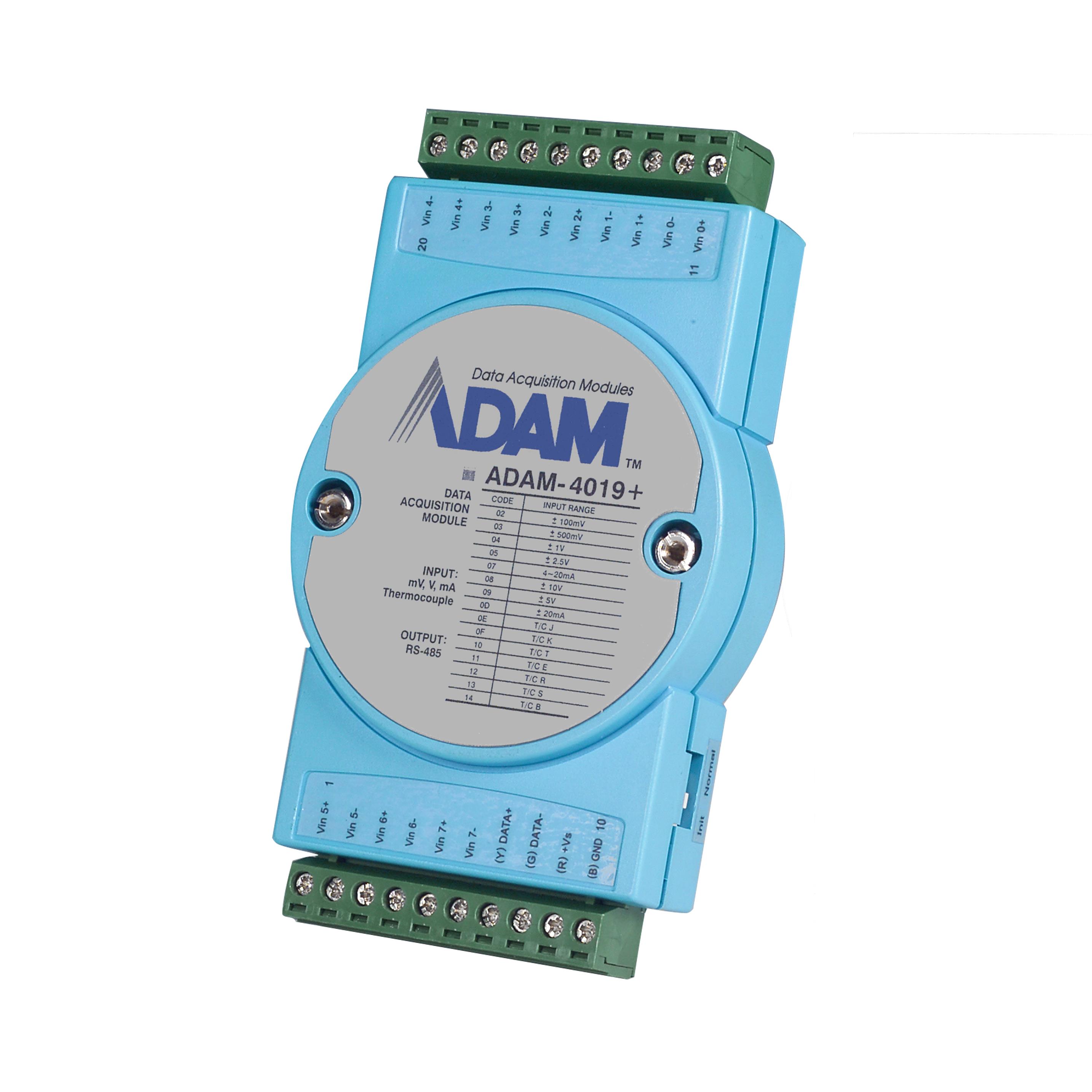

Advantech ADAM-4019+-F

8Thermocouple Modbus RS-485 Remote I/O.

Call for pricing
Part Number
  • ADAM-4019+-F
Highlights...

Features

  • Burn-out Detection: Yes
  • Interface: RS-485
  • Isolation Voltage: 3,000 VDC
  • Connectors: 2 x 10-pin plug-in screw terminal
  • Protocol: ASCII command, Modbus/RTU
  • Input Voltage: 10~30 VDC
  • Input Type: mA, mV, V, T/C: J, K, T, E, R, S, B, N type
  • Resolution: 16-bit
  • Sample Range: 10 S/s (sum)
  • Temperature Range: Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C), Type N (-200~1300° C)
  • Certification: CE, FCC
  • Input Range: ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, 0~20mA, 4 ~ 20 mA, ±20 mA, 0~100 mV, 0~500 mV, 0~1 V, 0~2.5 V, 0~5 V, 0~10 V
  • 8ch thermocouple(can be set to voltage or current)
  • Protocols:Modbus RTU,ASCII
  • Watchdog timer to recover the system
  • 3000VDC isolation protection
  • Wiring burned-out detection function
ADAM-4019+ is an 8-channel Universal Analog Input Module. The new module improves over its predecessor ADAM-4019 with a 4~20 mA input range, and a burnout detection function. Its mixed input range design supports individual configuration for each channel to save costs and space in applications. The other frequently used input ranges include +/-10V, mV, and thermocouple, which are all well-integrated in this model. It also supports burnout detection so that any sensor failures can be detected in advance. For easier control, ADAM-4019+ provides not only ADAM ASCII commands, but also the Modbus/RTU protocol for satisfying different application demands.
