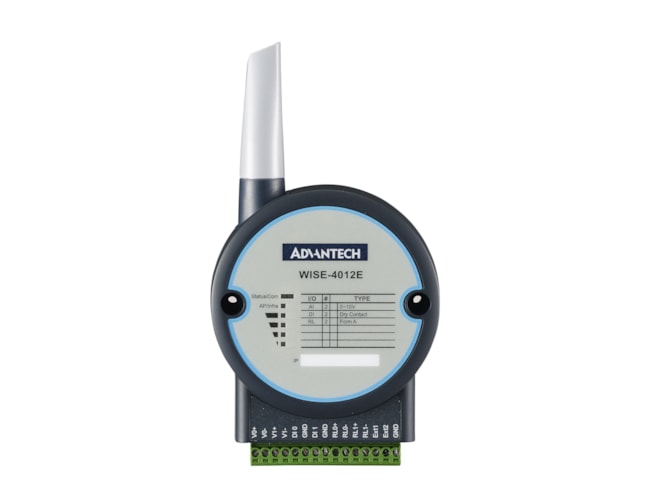

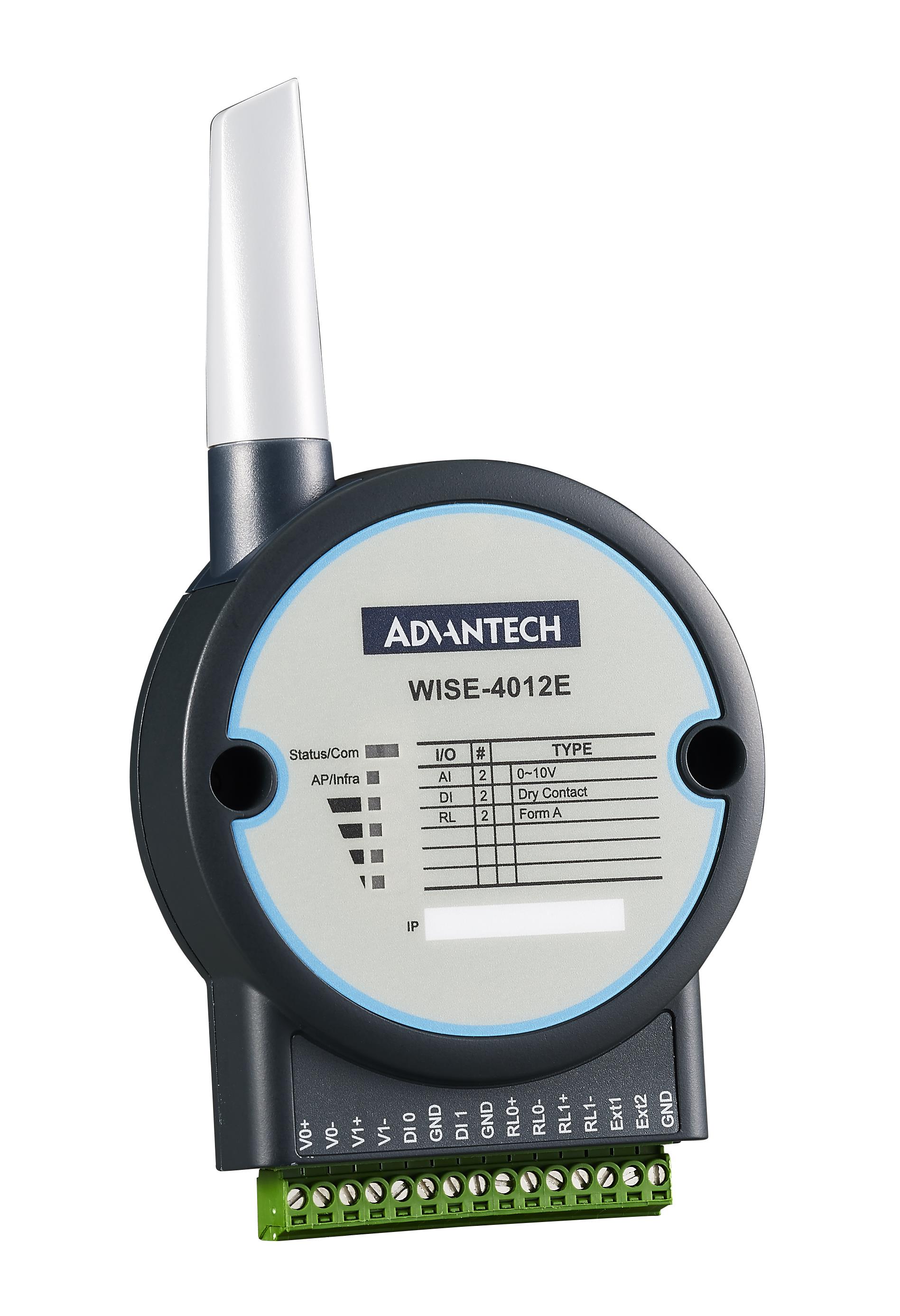

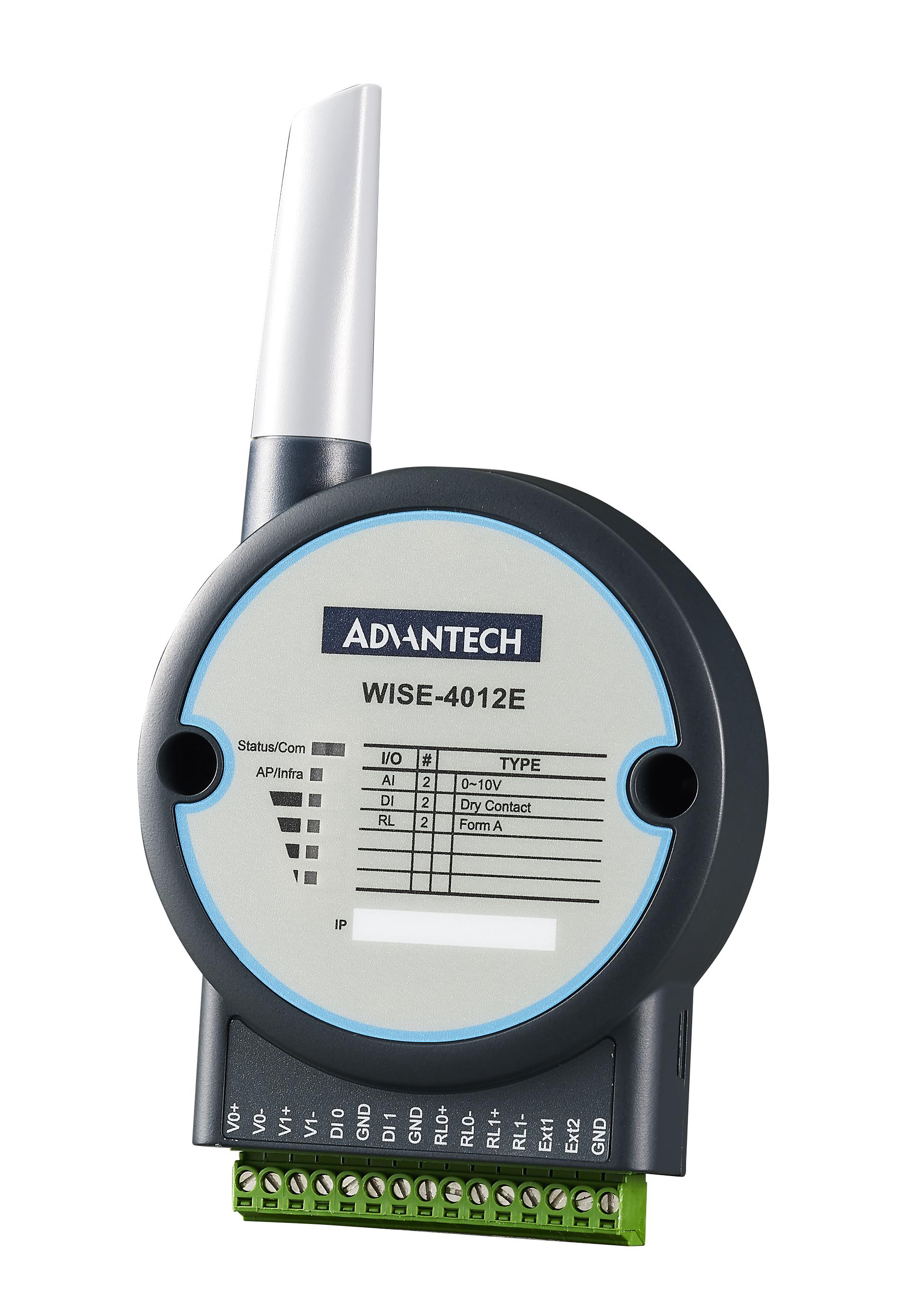

Advantech WISE-4012E-AE-WA

2.4G WiFi IoT Wireless I/O Developer Kit with WebAccess Demo Project.

$183.00
Part Number
  • WISE-4012E-AE-WA
Highlights...

Features

  • Input Range: 0~10 V
  • Resolution(Bits): 12-bit
  • Sampling Rates(S/s): 10 Hz (sum)
  • Channels: 2 (TTL)
  • Input Voltage: Dry Contact
  • Logic level 0: open
  • Logic level 1: close to Iso.GND
  • Relative Humidity: 20~95% RH (non-condensing)
  • Storage Humidity: 0~95% RH (non-condensing)
  • Connectors: 1 x Plug-in screw terminal, 1 x Micro USB
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
  • Certification: CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, ANATEL
  • LED Indicators: Status/Com, AP/Infra, Signal Strength
  • Power Consumption: 1.5 W @ 5 VDC
  • Power Input: 5 VDC
  • Watchdog Timer: 1.6 s
  • Dimension (W x H x D): 80 x 139 x 25 mm
  • Enclosure: PC
  • Weight (Net): 0.16 kg
  • Input Voltage: 5 VDC
  • Channels: 2 Form A
  • Contact Rating (Resistive): 1 A @ 30 VDC
  • Relay Type: 2 x Form A
  • Resistance: Min. 1 GΩ min.
  • Frequency Band: IEEE 802.11 b/g/n 2.4 (GHz)
  • Standard (Technology): WIFI
  • WiFi 2.4GHz IEEE 802.11b/g/n WLAN
  • Includes WebAccess demo project for developer
  • Includes extension board for simulating sensor status
  • Supports Modbus/TCP with RESTful web service
  • Supports file-based cloud storage and local logging with RTC time stamp
The Advantech WISE IoT Developer Kit is a complete hardware & software solution to help users develop IoT applications and simulate their projects in the simplest way. The WISE IoT Developer Kit provides everything you need to get going: a WISE-4012E 6-ch universal input or output wireless Ethernet I/O module, and developer kit including: WebAccess 8.0 with open interfaces for intelligent application developer, extension board for simulating sensor status, a micro USB cable for power input, and a screwdriver for wiring. The WISE-4012E has an integrated Wi-Fi interface with AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud.
