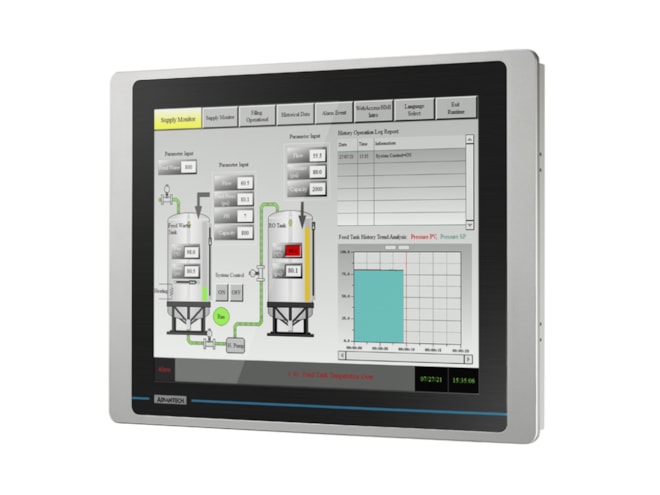

Advantech WOP-215K-NAE

Features

• Ingress Protection: Front Panel IP66
• Relative Humidity: 5~95% RH (non-condensing)
• Vibration Protection: 1 Grms, random
• Connectors: 1 x RJ45, 1 x DB9 female
• Programming Language: HMINavi Designer
• Protocol: 500+ PLC Drivers
• Rated Voltage: 24 VDC (±10%)
• Certification: CE, FCC class A, UL-61010
• CPU: ARM9â„¢ 32-bit RISC processor
• LAN: 1 x 10/100 Mbps
• Memory: 1 x 64 MB SDRAM
• OS Support: RTOS
• Power Consumption: 20 W @ 24 VDC
• Power Requirement: 24 VDC ±10%
• Storage: 1 x 128M NAND Flash
• Serial Ports: 1 x RS-232, 1 x RS-422/485, 1 x RS-485
• USB Ports: 1 x USB (Host), 1 x USB (Client)
• Display Size: 15"
• Max. Resolution: 1024 x 768
• Dimension (W x H x D): 399.1 x 297.6 x 57.3 mm
• Enclosure: PC + ABS
• Mounting: Panel
• Weight (Net): 3 kg (6.61 lb)
• Touch Type: 4-wire resistive
• ARM9â„¢ 32-bit RISC processor with 64 MB SDRAM working memory
• Supports over 500+ PLC industrial communication protocols
• Backup memory 128KB for retaining critical data or parameter
• Supports the HMINavi Designer development tool free on Windows 10
• Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
• No limitation on the internal I/Os points used for variety application
• Easy to switch one application to different LCD sizes in seconds
• Supports operation in both landscape and portrait mode
• Panel mount design ensures easy installation and IP66-rated front panel
