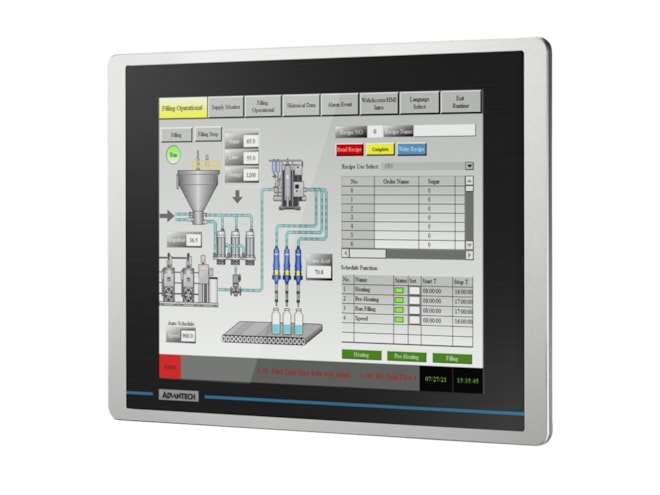

Name: Advantech WOP-212K-NAE
Price: 1040.0 USD
Availability: BackOrder

Advantech WOP-212K-NAE — Advantech-WOP-212K-NAE

$1,040.00

Part Number

WOP-212K-NAE

Highlights...

WOP-212K-NAE
By Advantech
FREE Shipping
Call for availability

Features

Ingress Protection: Front Panel IP66
Relative Humidity: 5~95% RH (non-condensing)
Vibration Protection: 1 Grms, random
Connectors: 1 x RJ45, 1 x DB9 female
Programming Language: HMINavi Designer
Protocol: 500+ PLC Drivers
Rated Voltage: 24 VDC (Â±10%)
Certification: CE, FCC class A, UL-61010
CPU: ARM9â„¢ 32-bit RISC processor
LAN: 1 x 10/100 Mbps
Memory: 1 x 64 MB SDRAM
OS Support: RTOS
Power Consumption: 20 W @ 24 VDC
Power Requirement: 24 VDC Â±10%
Storage: 1 x 128M NAND Flash
Serial Ports: 1 x RS-232, 1 x RS-422/485, 1 x RS-485
USB Ports: 1 x USB (Host), 1 x USB (Client)
Display Size: 12"
Max. Resolution: 1024 x 768
Dimension (W x H x D): 335.4 x 245.8 x 60.3 mm
Enclosure: PC + ABS
Mounting: Panel
Weight (Net): 2 kg (4.41 lb)
Touch Type: 4-wire resistive
ARM9â„¢ 32-bit RISC processor with 64 MB SDRAM working memory
Supports over 500+ PLC industrial communication protocols
Backup memory 128KB for retaining critical data or parameter
Supports the HMINavi Designer development tool free on Windows 10
Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
No limitation on the internal I/Os points used for variety application
Easy to switch one application to different LCD sizes in seconds
Supports operation in both landscape and portrait mode
Panel mount design ensures easy installation and IP66-rated front panel

The WOP-200K series systems are available with LCDs of varying size (from 4.3" to 15"). Additionally, WOP-200K systems are bundled with HMINavi software â€" a human-machine interface designed for HMI applications, powerful connectivity drivers support 500+ variety market brands of PLCs.
