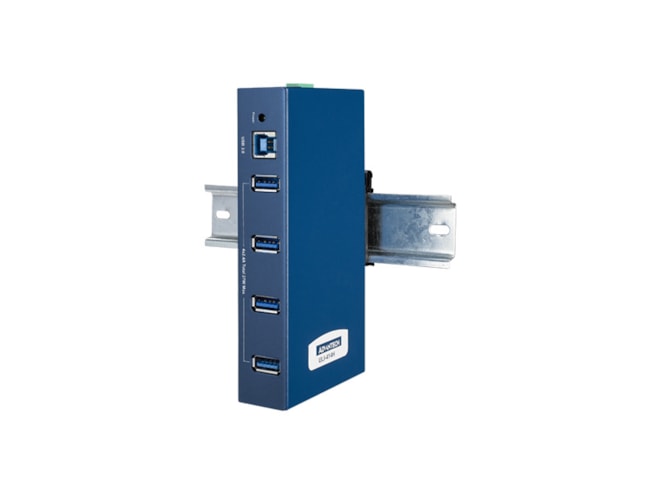

Advantech BB-USH204-B

Features

• Standard: USB 3.2 Gen 1 / USB 3.0
• Maximum Transfer Rate: SuperSpeed (5 Gbps)
• Connector Type: Type B (Female)
• Standard: USB 3.2 Gen 1 / USB 3.0
• Maximum Transfer Rate: SuperSpeed (5 Gbps)
• Connector Type: Type A (Female)
• Supply Current: 4 x 2.4A on any port to a maximum of 27W total (CDP)
• ESD Protection: 8 kV (Contact) ; 15 kV (Air)
• Surge Protection: 1 KV
• Enclosure (Metal): Metal
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Power Input (DC): 9 ~ 30 VDC
• CE: Yes
• FCC/IC: Yes
• USB 3.2 Gen1 speeds up to 5 Gbps
• Expands one USB port to 4 USB ports
• 4 downstream USB 3.2 ports (Type A); 1 upstream USB 3.2 port (Type B)
• Each downstream port supports up to 2.4A to a maximum of 27W
• 15 kV air ESD protection and 1kV surge protection
• 9-30VDC Power inputs with polarity reverse protection
• Metal case with chassis ground
• DIN-rail, wall-mount and desktop mount options (mounting kit included)
• USB 3.0 Type A to Type B cable (2m) included
