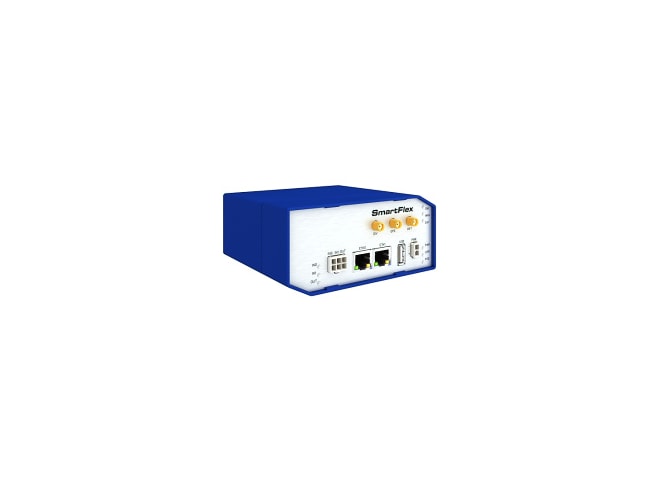

Advantech BB-SR30508010 | Motion World

Advantech BB-SR30508010 — Advantech-BB-SR30508010

$757.99

Part Number

BB-SR30508010

Highlights...

BB-SR30508010
By Advantech
FREE Shipping on orders of $1,000 or more
Call for availability

Features

NAM: Yes
NAM: Yes
I/O: 2 x DI + 1 x DO
MicroSD: Yes
GNSS receiver: Yes
PoE-PSE: Yes
Cellular Antennas: 2 x SMA
GPS Antenna: 1 x SMA
Power Input (DC): 10 ~ 60 VDC
Sleep Mode: Yes
GPRS/EDGE: Yes
Operating Humidity: 0~95%
3G/HSPA+: Yes
Dimensions (W x H x D): 125 x 55 x 97 mm
Enclosure (Plastic): Yes
Mounting (DIN-rail): Yes
Advances Software Tool: WA/DMP, WA/VPN
GPS: Yes
PoE PSE: Yes
USB: Yes
I/O 2x DI + 1x DO: Yes
MicroSD: Yes
Case: Plastic
CE: Yes
FCC/IC: Yes
Carriers: AT&T / Verizon / Rogers
Power Supply: 10 to 60 V DC
Humidity: 0 to 95 %
Dimensions [mm]: 55 x 97 x 125
Cellular Antennas: 2x SMA
GPS Antenna: 1x SMA
LTE Bands: LTE B2, B4, B5, B13, B17
UMTS Bands: B2 (1900), B4 (1700), B5 (850)
GSM Bands: 850, 900, 1800, 1900
LED Indicators: SIM, WAN, DAT, PWR, USR, POE, IN0, IN1, OUT, ETH
Mounting: DIN
LTE cat.3, 3G/HSPA+, GPRS/EDGE, NAM, 2x SIM
LTE B2, B4, B5, B13, B17
2x Ethernet port with PoE support, DIN rail mounting
Powerful CPU and Memory, Hosting of SW IoT applications
2x ETH, PSE PoE+, PoE+ IEEE 802.3at & 802.3af on 2x ETH
GPS, USB, I/O 2x DI + 1x DO, MicroSD
Certifications: CE, FCC/IC, AT&T, Verizon
Advanced networking, Diagnostics, VPN support, Firewall

SmartFlex, NAM, 2x ETH, PoE PSE, Plastic, No ACC

Spec Sheets

Advantech BB-SR30508010 Datasheet (602 KB)
