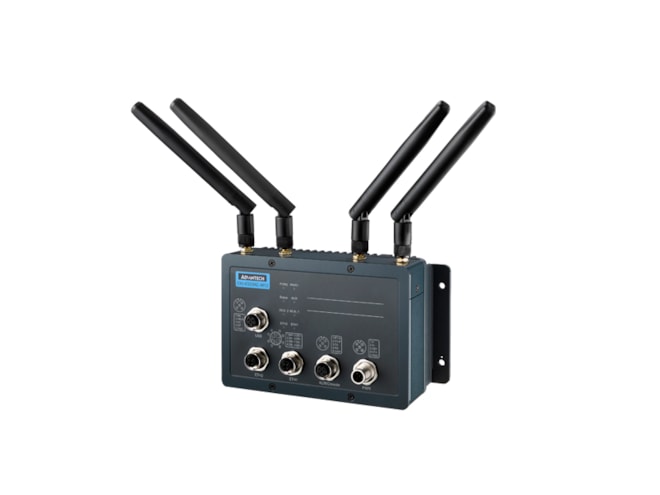

Advantech EKI-6333ACXL-M12-A

EN50155 Railway Concurrent Dual-Band 2T2R Wi-Fi AP/Client.

$1,546.00
Part Number
  • EKI-6333ACXL-M12-A
Highlights...

Features

  • EMC: EN 55032, EN 55024, EN 50121-3-2, EN 50121-4
  • EMI: FCC Part 15 Subpart B (Class B)
  • EMS: EN 61000-6-1,
  • EN 61000-6-3,
  • EN 61000-4-2,
  • EN 61000-4-3,
  • EN 61000-4-4,
  • EN 61000-4-5,
  • EN 61000-4-6,
  • EN 61000-4-8,
  • EN 61000-4-11
  • Relative Humidity: 10~95% RH
  • RJ-45 Port Connector Type: M12
  • RJ-45 Transmission Distance: NA
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Dimensions (W x H x D): 186 x 50.1 x 104.8 mm (7.32 x 1.97 x 4.13 in.)
  • Enclosure (Metal): Metal shell with solid mounting kits
  • LED Indicator: System: Power1, Power 2, Status
  • WLAN: Quality
  • LAN: Link/Active
  • Mounting (Wall): Yes
  • Weight: 1.5 kg
  • Power Connector Type: M12 (5 pin A-coded)
  • Power Consumption: Max. 14W
  • Power Input (DC): 24 ~ 48 VDC
  • Redundant Dual Inputs: Yes
  • Configuration: Web browser
  • Protocols: ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DNS, HTTP, SNTP
  • Reboot Trigger: N/A
  • Warranty Period: 5 years
  • Wi-Fi 2.4 GHz: Yes
  • Wi-Fi 5 GHz: Yes
  • Wi-Fi Antenna Connector Type: Reverse SMA
  • Wi-Fi Free Space Range: Open space 100 m
  • Wi-Fi Network Mode: Infrastructure
  • Wi-Fi Operation Mode: Access Point/ Bridge/ Client mode
  • Wi-Fi RF Capability: 2T2R
  • Wi-Fi Transmission Speed: Up to 867 Mbps
  • Wireless Security: Open System, Shared Key, Lagacy 8021X, WPA/WPA2, WPA-PSK (TKIP), WPA2-PSK(AES)
  • Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac
  • Support IEEE 802.11n MIMO 2T2R
  • WLAN transmission rate up to 867 Mbps
  • Support secure access with WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
  • Provides web-based configuration
  • Support dual band 2.4/5GHz concurrent
  • Design with dual radio modules
  • Anti-vibration M12 design
  • Wide range power input 24/48/72/96/110 VDC
EKI-6333AC-M12 is designed for railway applications, including rolling stock. It supports AP/Bridge/Client mode and is designed with dual 2.4/5GHz wireless modules, IEEE 802.11 a/b/g/n/ac concurrent dual bands, and is with M12 connectors to provide a reliable wireless connectivity.
