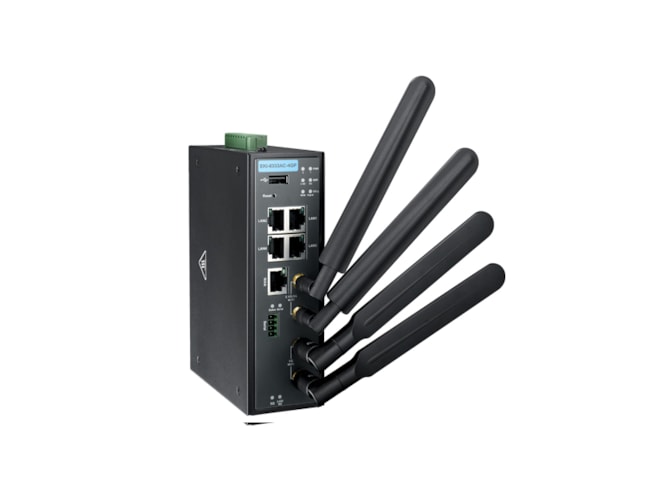

Advantech EKI-6333AC-4GP-A

Ind. 802.11 a/b/g/n/ac Wi-Fi AP with PoE PSE.

Call for pricing
Part Number
  • EKI-6333AC-4GP-A
Highlights...

Features

  • EMC: CE, EN55032/24
  • Relative Humidity: 10~95% RH
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • LED Indicator: System: Power, Status
  • WLAN: Quality, Link/Active
  • LAN: Link/Active
  • Mounting (DIN-rail): Yes
  • Weight: 1.5 kg
  • Power Consumption: 20W
  • Power Input (DC): 24 ~ 56 VDC
  • Configuration: Web browser
  • Protocols: ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DHCP
  • Server, Auto IP, Telnet, DNS, SNMP, HTTP, DMZ,
  • PPPoE, VPN Passthrough, Telnet Server, SSH Server,
  • FTP Server, QoS
  • Warranty Period: 2 years
  • Wi-Fi 2.4 GHz: Yes
  • Wi-Fi 5 GHz: Yes
  • Wi-Fi Antenna Connector Type: Reverse SMA
  • Wi-Fi Free Space Range: Open space 100 m
  • Wi-Fi Network Mode: Infrastructure
  • Wi-Fi Operation Mode: Access Point/ Repeater/ Client mode
  • Wi-Fi RF Capability: 2T2R
  • Wi-Fi Transmission Speed: Up to 1167 Mbps
  • Wireless Security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
  • Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac
  • Supports 802.11ac MIMO 2T2R
  • WLAN transmission rate up to 867 Mbps
  • Supports secure access with WEP, 802.1x, WPA/WPA2-Personal, WPA/WPA2-Enterprise
  • Provides Web-based configuration
  • Supports dual bands 2.4G/5G concurrent
The EKI-6333AC-2G is a feature-rich wireless AP providing reliable wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment of this AP even where the DC power supply is hard to fulfill.
