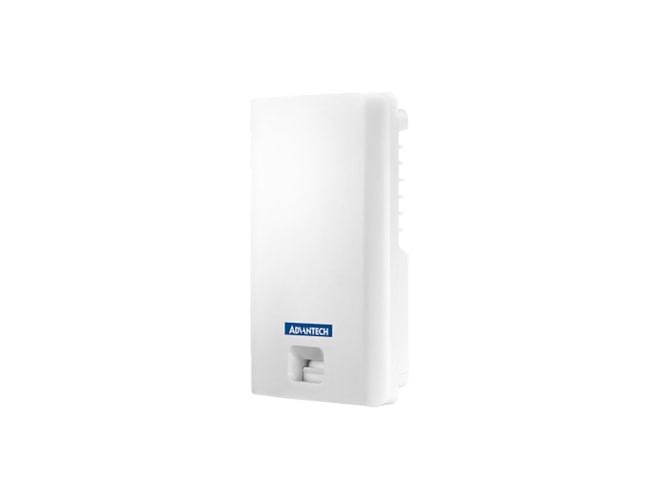

Advantech EKI-6333AC-2G-A

IEEE 802.11 a/b/g/n/ac Concurrent Dual-Band Wi-Fi AP/Client.

$388.00
Part Number
  • EKI-6333AC-2G-A
Highlights...

Features

  • EMC: EN 55032, EN 55024
  • EMI: FCC Part 15 Subpart B (Class B)
  • EMS: EN 61000-6-1,
  • EN 61000-6-3,
  • EN 61000-4-2,
  • EN 61000-4-3,
  • EN 61000-4-4,
  • EN 61000-4-5,
  • EN 61000-4-6,
  • EN 61000-4-8,
  • EN 61000-4-11
  • Relative Humidity: 10~95% RH
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: NA
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Dimensions (W x H x D): 191.6 x 114.3 x 47.7 mm (7.54 x 4.49 x 1.88 in.)
  • Enclosure (Plastic): Yes
  • IP Rating: IP55
  • LED Indicator: System: Power
  • WLAN: Link/Active
  • LAN: Link/Active
  • Mounting (Pole Mount): Yes
  • Mounting (Wall): Yes
  • Weight: 0.50 kg (1.1 lbs)
  • Power Connector Type: RJ-45
  • Power Consumption: 15W
  • Power Input (AC): 100 ~ 240 VAC
  • Power Input (DC): 24 VDC
  • Configuration: Web browser
  • Protocols: ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DHCP
  • Server, Auto IP, Telnet, DNS, SNMP, HTTP, DMZ,
  • PPPoE, VPN Passthrough, Telnet Server, SSH Server,
  • FTP Server, QoS
  • Reboot Trigger: Built-in WDT (watchdog timer)
  • Warranty Period: 2 years
  • Wi-Fi 2.4 GHz: Yes
  • Wi-Fi 5 GHz: Yes
  • Wi-Fi Antenna Connector Type: Reverse SMA
  • Wi-Fi Free Space Range: Open space 100 m
  • Wi-Fi Network Mode: Infrastructure
  • Wi-Fi Operation Mode: Access Point/ Repeater/ Client mode
  • Wi-Fi RF Capability: 2T2R
  • Wi-Fi Transmission Speed: Up to 1167 Mbps
  • Wireless Security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
  • Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac
  • Supports 802.11ac MIMO 2x2
  • WLAN transmission rate up to 1167 Mbps
  • Supports secure access with WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
  • Provides Web-based configuration
  • Supports dual bands 2.4/5GHz concurrent
The EKI-6333AC-2G is a feature-rich wireless AP providing reliable wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment of this AP even where the DC power supply is hard to fulfill.
