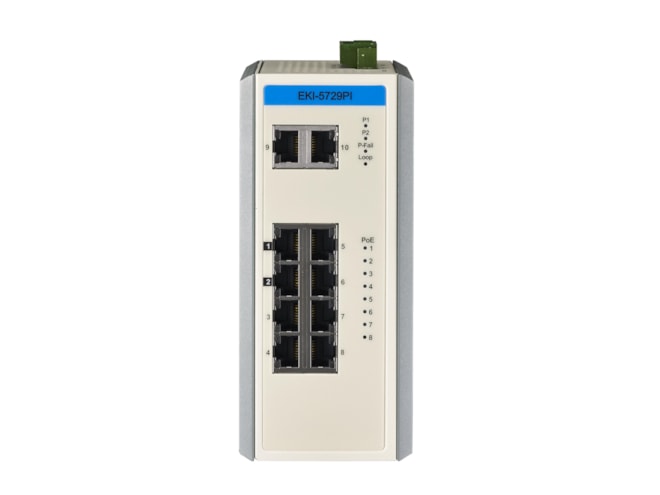

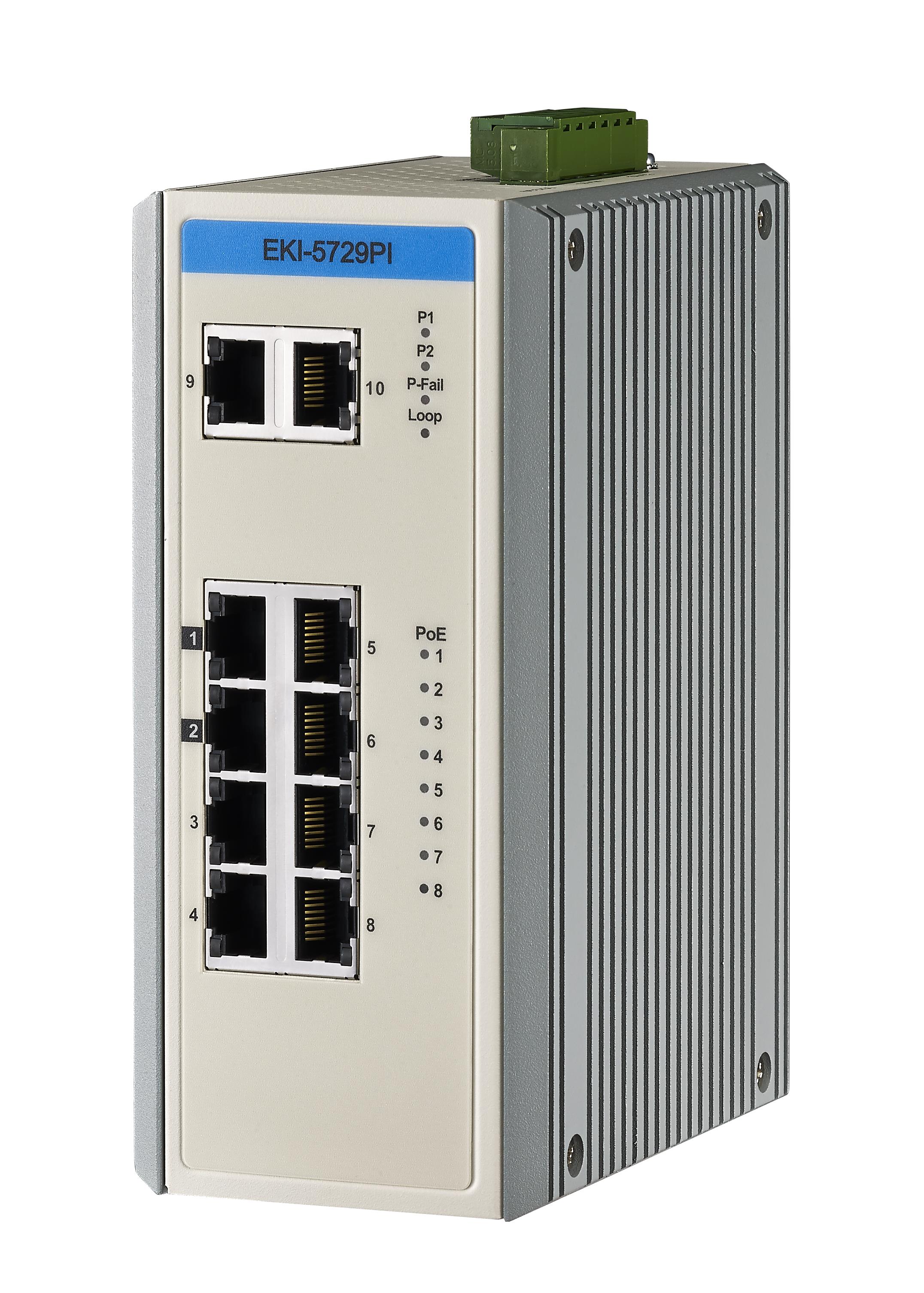

Advantech EKI-5729PI-AE

Features

• Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3z, 802.3af/at
• RJ-45 Transmission Distance: 100 m
• MAC Table Size: 8K
• Packet Buffer Size: 4.1M bit
• Switch Fabric Speed: 20Gbps
• Jumbo Frame: 9,216 bytes
• Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
• IP Rating: IP30
• Enclosure (Metal): Metal
• Weight: 0.7 kg
• Mounting: DIN-rail, Wall
• Relative Humidity: 10~95%
• Time: 3,858,286 hours
• Method: Telcordia(Relax), GB
• Power Operating Current: 0.23A @ 24V
• Power Consumption: Max. 6.8W
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Safety: IEC/EN 60950-1, UL 61010-2-201
• EMC: CE, FCC, e-Mark
• EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Vibration: IEC 60068-2-6
• Warranty Period: 5 years
• Power Input (DC): 12 ~ 24 VDC
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Full Gigabit Ethernet ports and comply with IEEE
• 802.3af/at PoE standard
• Communicates with SCADA software via Modbus/TCP
• Communicates with NMS (Networking management system) via SNMP
• Port-based QoS for deterministic data transmission
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Provides 5/6 Fast Ethernet ports with 8 PoE ports
• Supports redundant 12V~24V (9V ~ 36V) power input and P-Fail relay
