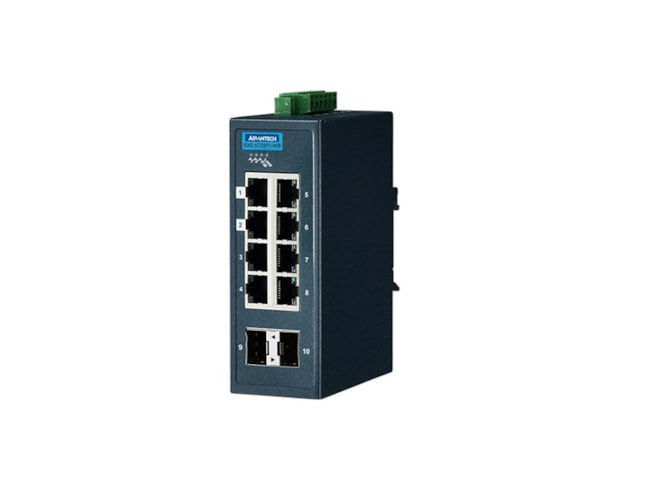

Advantech EKI-5729FI-MB-AE

Features

• EMI: CE, FCC
• EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Safety: Class I, Division 2, UL 508
• Fiber Port Interface: SFP
• Fiber Port Connector Type: SFP cage
• Fiber Transmission Distance: Up to 110 km
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Distance: 100 m
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Dimensions (W x H x D): 43 x 120 x 84 mm
• IP Rating: IP30
• Weight: 0.7 kg
• Support PoE: No
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Consumption: Max. 6.8W
• Power Input (DC): 12 ~ 48 VDC
• Jumbo Frame: 9,216 bytes
• MAC Table Size: 8K
• Packet Buffer Size: 4.1M bit
• Switch Fabric Speed: 20Gbps
• Warranty Period: 5 years
• Overload Current: Present
• Reverse Polarity: Present
• Entry-level managed switch
• Provides wide operating voltage 8.4~52.8 VDC
• C1D2 and ATEX certified for horizontal area
• IXM function enables fast deployment
• Modbus/TCP enabled by default
• Supports X-Ring for ultra high-speed recovery time less than 20m
