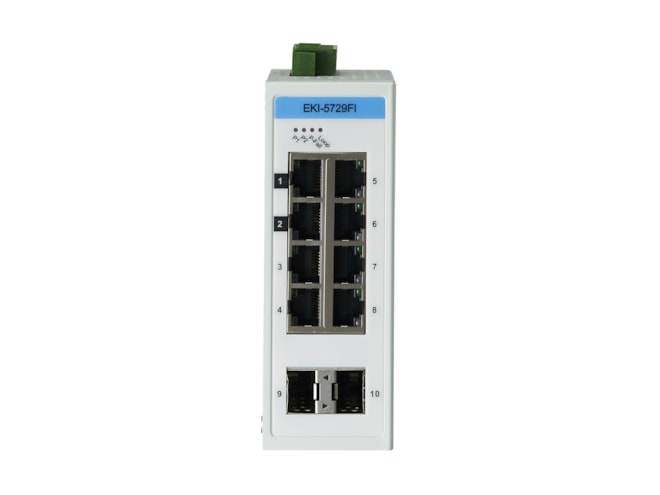

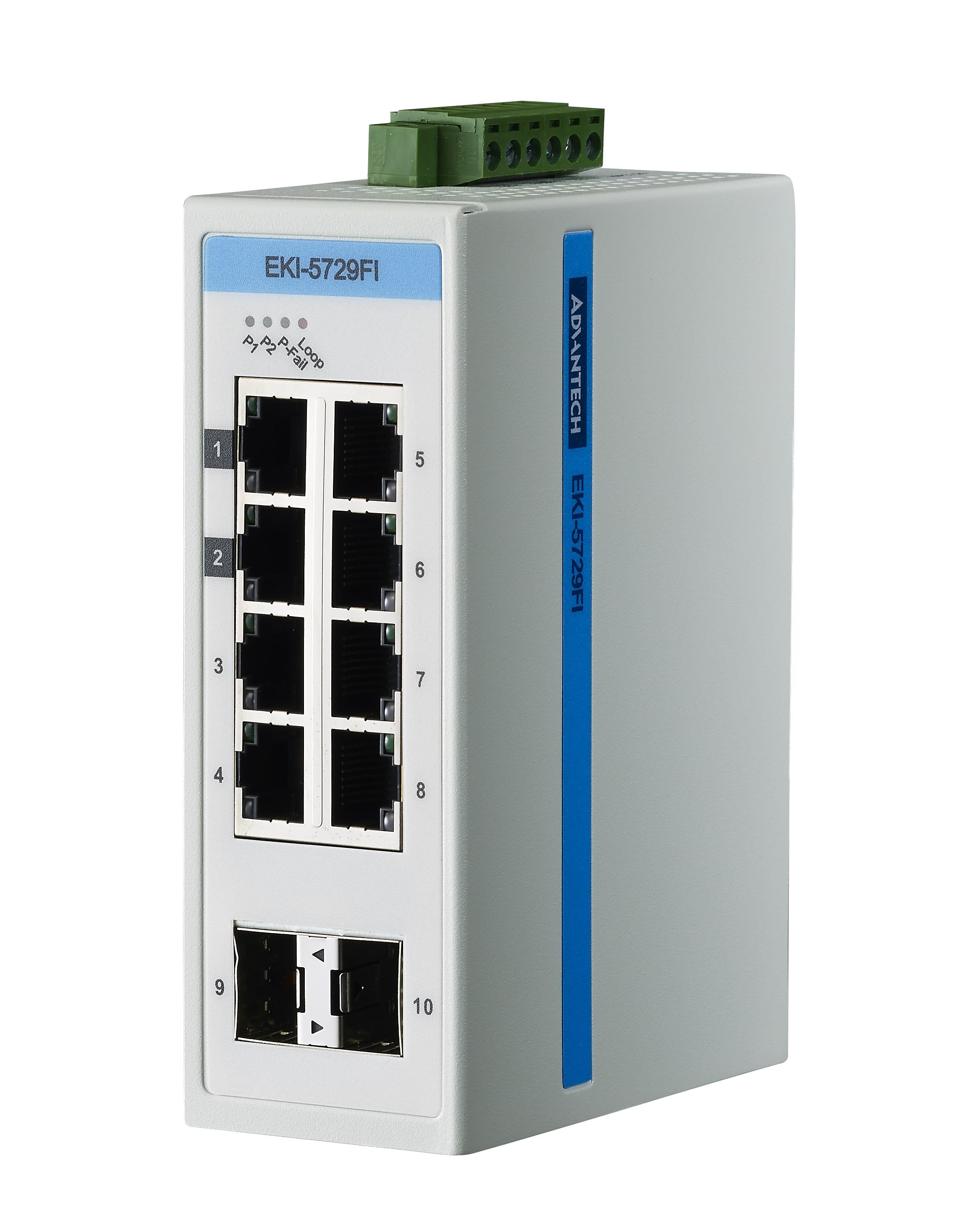

Advantech EKI-5729FI-AE

8+2G Full Gigabit Unmanaged Ethernet Switch, ATEX/C1D2, -40~75℃.

$688.92
Part Number
  • EKI-5729FI-AE
Highlights...

Features

  • EMI: CE, FCC
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: UL508, Class 1 Division 2, ATEX
  • Temperature (Max. Operating): 75°C (167°F)
  • Fiber Port Interface: SFP
  • Fiber Port Connector Type: SFP cage
  • Fiber Transmission Distance: Up to 110 km
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 43 x 120 x 84 mm
  • IP Rating: IP30
  • Weight: 0.7 kg
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Consumption: Max. 6.8W
  • Power Input (DC): 12 ~ 48 VDC
  • Power Operating Current: 0.23A @ 24V
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 20Gbps
  • Warranty Period: 5 years
  • Overload Current: Present
  • Reverse Polarity: Present
  • Communicates with SCADA software via Modbus/TCP
  • Communicates with NMS (Networking management system) via SNMP
  • Port-based QoS for deterministic data transmission
  • 12V~48 V DC (8.4 V to 52.8 V DC ) wide-range power input
  • EMS level 3 protection for extreme outdoor environments
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Supports redundant 12~48V DC power input and P-Fail relay
  • Loop detection
The EKI-5729F/FI are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5729F/FI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
