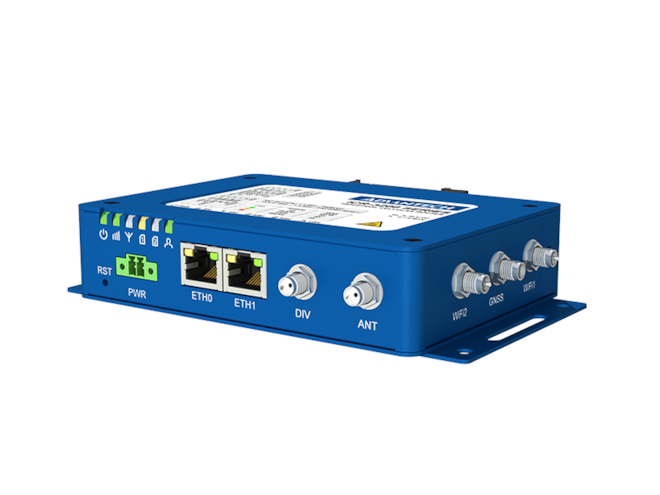

Advantech ICR-3241W-1ND

ICR-3200, NAM, FirstNet, 2x Ethernet, 1x RS232, 1x RS485, Wi-Fi, Metal, Without Accessories.

$800.00
Part Number
  • ICR-3241W-1ND
Highlights...

Features

  • NAM: Yes
  • I/O: 1 x DI + 1 x DO
  • WiFi 2.4/5 GHz: Yes
  • GNSS receiver: Yes
  • Cellular Antennas: 2 x SMA
  • WiFi Antennas: 1 x R-SMA
  • GPS Antenna: 1 x SMA
  • Power Input (DC): 9 ~ 36 VDC
  • Sleep Mode: Yes
  • Operating Humidity: 0~95%
  • Dimensions (W x H x D): 129 x 31 x 94 mm
  • Enclosure (Metal): Metal
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Advances Software Tool: WA/DMP, WA/VPN
  • 4G LTE Cat.4 VPN Gateway for Industrial IoT applications - FirstNet Certified
  • LTE B2, B4, B5, B12, B13, B14, B66, B71
  • Carriers support; Verizon, AT&T, T-Mobile, FirstNet (Public Safety)
  • Powerful CPU with 1.3 GB storage to host customer SW applications
  • 2× SIM with cover, Dual SIM + eSIM
  • 2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O, WiFi, GPS
  • Robust metal cover with DIN and Wall mount options
  • Operational temperature range from -40 °C to +75 °C
  • Sleep mode & Power ignition & Backup real time clock
The ICR-3241W-1ND LTE gateway is the perfect way to connect IP or serial devices to a FirstNet cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more.
