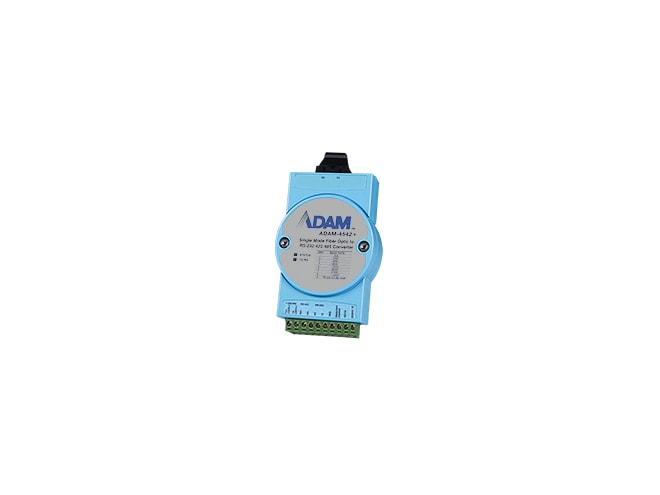

Advantech ADAM-4542+-BE

Single-mode Fiber Optic to RS-232/422/485 Converter.

$626.90
Part Number
  • ADAM-4542+-BE
Highlights...

Features

  • Connectors: 1 x SC fiber connector, 1 x 10-pin plug-in screw terminal
  • Input Voltage: 10~30 VDC
  • Baud Rate (bps): 1200 bps~921.6 kbps
  • Converter/Repeater: Fiber Optic to RS-232/422/485
  • 1 x SC fiber connector
  • Operation mode: Point-to-Point,Redundant and Ring(half-duplex)
  • Half/Full-duplex, bidirectional transmission mode
  • Automatic RS-485 data flow control
  • LED indicator to monitor status
Fiber optic transmission offers the benefits of wide bandwidth, immunity to EMI/RFI interference, and secure data transmission. ADAM-4542+ can be used as a RS-232/422/485 point-to-point or point-to-multipoint connection for transmitting and converting full/half-duplex signals and their equivalents within a fiber optic environment. Fiber optics is the perfect solution for applications where the transmission medium must be protected from electrical exposure, lightning, atmosphere. ADAM-4542+ is specifically designed to link various machinery equipped with a RS-232/422/485 communication port (such as computer systems or manufacturing machines). Using standard SC type fiber connector, the module's fiber optic ports can accommodate a wide range of fiber optic cable sizes, including 62.5/125, 250/125, 100/140 mm.
