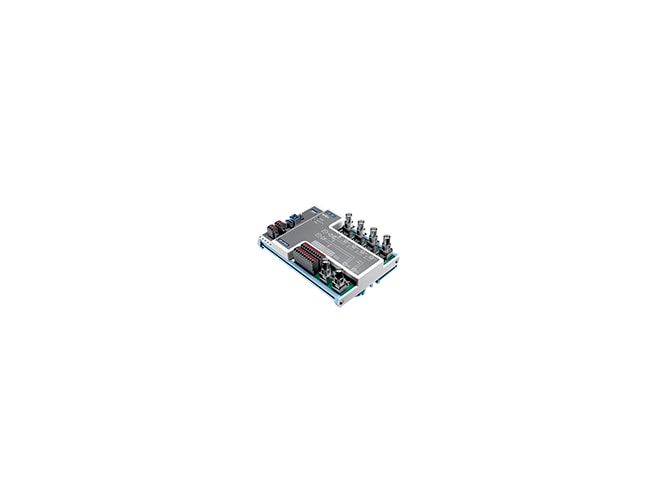

Advantech USB-5801-AE

4-ch, 24-bit, 192 kS/s DSA USB 3.0 Module w/ AO and Tachometer.

$1,431.00
Part Number
  • USB-5801-AE
Highlights...

Features

  • Input Range: ±1 V, ±2 V, ±5 V, ±10 V
  • Resolution(Bits): 24-bit
  • Sampling Rates(S/s): 192 KS/s (per channel)
  • Trigger: Post-trigger, pre-trigger, delay-trigger, about-trigger
  • Output Ranges: ±1 V, ±10 V
  • Resolution: 24-bit
  • Update Rate(S/s): 192 KS/s
  • Channels: 4 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Channels: 4 (Isolated)
  • Isolation Protection: 2,500 VDC
  • USB 3.0 SuperSpeed and daisy chainable by built-in USB hub
  • 4x simultaneously sampled analog inputs, up to 192 kS/s
  • 24-bit resolution ADCs with -94 dB total harmonic distortion plus noise (THD+N)
  • Built-in anti-aliasing filter
  • 2 mA integrated electronic piezoelectric (IEPE) excitation currents
  • 2 analog outputs with update rate up to 192 kS/s
  • 24-bit resolution DACs with -90 dB total harmonic distortion plus noise (THD+N)
  • 2 tachometer inputs for period or frequency measurement
  • 4-ch isolated digital input and 4-ch isolated digital output
USB-5801 is a high accuracy dynamic signal acquisition USB 3.0 module specifically designed for vibration and acoustic measurements. It provides four simultaneously sampled, 24-bit, IEPE sensor inputs with up to 192 kS/s sample rate for high resolution measurements. It is also equipped with two 24-bit analog outputs with up to 192 kS/s update rate. In addition, it has two tachometer inputs whose data can be correlated to the sensor data. The built-in USB hub makes this module daisy chainable with other USB-5000 series products.
