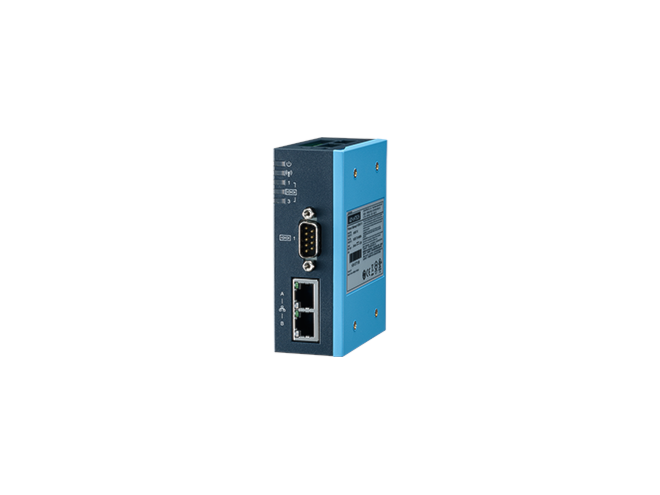

Advantech WISE-710-N600A

FreeScale i.MX 6 DualLite Industrial Gateway, 1G RAM, Ubuntu.

$457.00
Part Number
  • WISE-710-N600A
Highlights...

Features

  • Relative Humidity: 10~95% RH (non-condensing)
  • Shock Protection: 10 G, half sine
  • Vibration Protection: 2 Grms, random
  • Certification: CE, FCC
  • CPU: NXP® ARM® Cortexâ„¢-A9 i.MX6 1.0 GHz Dual-core
  • Hardware Security: Security Chip
  • Memory: 1 GB DDR3
  • OS Support: Linux
  • Power Input: 24 VDC ±20%
  • Storage: 8 GB eMMC
  • Expansion: 1 x Full-size mPCIe Slot
  • LAN Ports: 2 x 10/100/1000 Mbps
  • Power Connector: 1 x 2-Pin Terminal Block
  • Serial Ports: 1 x RS-232/485, 1 x RS-485/CANBus, 1 x RS-485
  • USB Ports: 1 x Micro USB
  • Dimension (W x H x D): 115.58 x 73 x 36 mm
  • Enclosure: Plastic
  • Weight (Net): 0.17 kg (0.375 lb)
  • Expansion: 1 x Full-size mPCIe slot
  • Power Consumption: 5 W @ 24 VDC
  • Mounting: Wall, DIN-rail
  • Freescale i.MX 6 Dual Lite A9 1GHz
  • Support MQTT, LWM2M client for cloud communication
  • Embedded with Microsoft Azure certified security chip
  • Support Micro SD card & on-line firmware update
  • Support DI wet contact & dry contact by switch
  • Support Node ID by software
  • Support data logger on Micro SD card
  • Operation System: Yocto 2.1/ Ubuntu 16.04
  • Operation Temperature: -20~55°C
The WISE-710 industrial IoT gateway was an open platform with Cortex A9 processor, equipped with 3 x RS-232/485 serial ports, 2 x 10/100/1000 Ethernet ports, and 4 x DI/DO which is great solution to connect your legacy equipments to the new mesh networks. All collected data to the cloud will be secured by key encryption technology from embedded security chip. With its rich I/O, and wide operating temperature design, the gateway plays a role as PLC-side protocol converter, and also data logger for multiple industrial applications.
