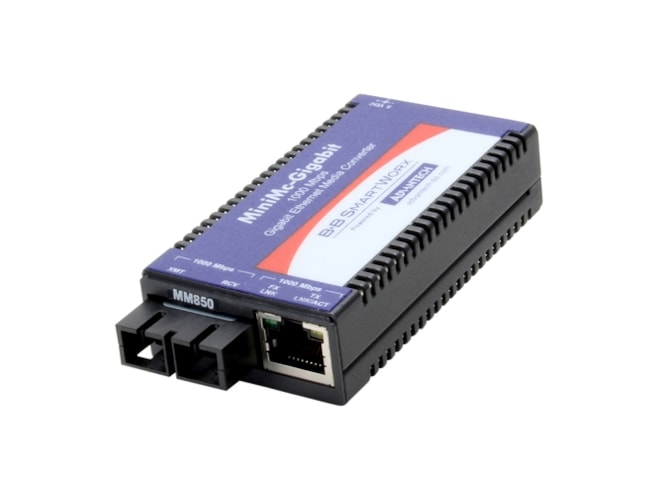

Advantech IMC-371-MM-PS

Mini Media Converter,1000Mbps, Multimode 850nm, 550m, SC, AC adapter (also known as IE-MiniMc 855-10730).

$371.70
Part Number
  • IMC-371-MM-PS
Highlights...

Features

  • Fiber Transmission Speed: 10/100/1000 Mbps
  • Fiber Port Optical Mode: Multi-Mode
  • Fiber Transmission Wavelength: 850 nm
  • Fiber Transmission Distance: 550 m
  • Fiber Port Connector Type: SC Type
  • Power Input (AC): 100 ~ 240 VAC
  • Dimensions (W x H x D): 2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in.)
  • Weight: 0.3 kg (0.7lb)
  • Operating Humidity: 5~95% (non-condensing)
  • Safety: UL/cUL
  • EMC: CE, FCC Class A, CSA
  • Metal enclosure with compact size
  • Provides status LED
  • Supports multiple power options: AC or DC adapter and dual USB cable
  • Centralized powered IMC-318I chassis
The IMC-370 series offers the most compact media converters. They can extend the 10, 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370 series serves as a media and data rate converter. The IMC-370I supports plug-n-play functionality and auto negotiation and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or be installed in a centralize-powered media converter chassis.
