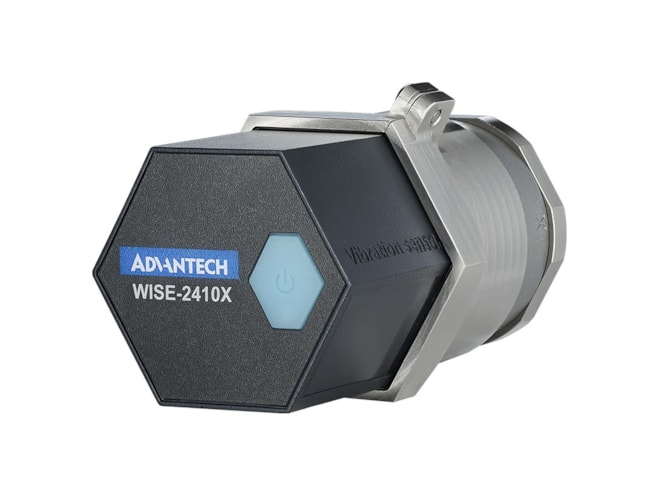

Advantech WISE-2410X-E21NA

Explosion Proof LoRaWAN Smart Vibration (IECEx Zone21).

$699.00
Part Number
  • WISE-2410X-E21NA
Highlights...

Features

  • Standard (Technology): LoRaWAN
  • Frequency Band: US 902~928 (MHz), AU 915~928 (MHz), AS 919~924 (MHz), TH 920~925 (MHz), JP 920~928 (MHz)
  • Ingress Protection: IP65
  • Axis: X, Y, Z
  • Output Data Rate: 6600 Hz
  • Frequency Range: 5 Hz~1,000 Hz
  • Amplitude Range: ±2 g, ±4 g, ±8 g, ±16 g
  • Accuracy: 5 Hz~1000 Hz (5%)
  • LoRaWAN wireless connectivity
  • Built-in 3-axis accelerometer and temperature sensor
  • On-board computing. Directly sends VRMS, ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values to applications
  • Support battery power and remote configuration settings, no wiring installation needed
  • Easy settings with user friendly interfaces on WISE Studio utility
  • ISO 10816 and ISO 20816 compliant
  • Support wide temperature 0 ~ 70 °C
  • IP65 enclosure design
  • IECEx Zone 2, Zone 21, ATEX2, C1D2 certificates
WISE-2410X, a vibration and temperature integrated sensor with ATEX2 and IECEx certification for installing in hazardous and explosive environments, provides accurate operation status by cross-comparison of RMS speeds and eigenvalues against ISO 10816-1 standards and vibration characteristic values.
