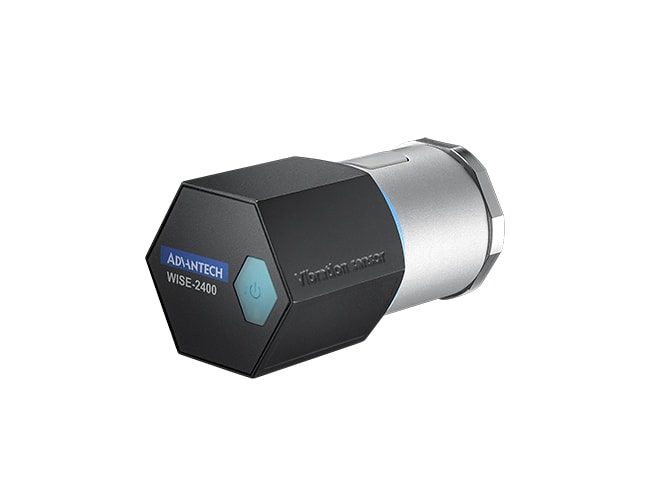

Advantech WISE-2410-NB

LoRaWAN Smart Vibratoin Sensor (NA915 or AS923 or AU915).

$356.00
Part Number
  • WISE-2410-NB
Highlights...

Features

  • Standard (Technology): LoRaWAN
  • Frequency Band: EU 863~870 (MHz), US 902~928 (MHz), AU 915~928 (MHz), AS 919~924 (MHz), JP 920~928 (MHz)
  • Ingress Protection: IP66
  • Axis: X, Y, Z
  • Output Data Rate: 6600 Hz
  • Frequency Range: 5 Hz~1,000 Hz
  • Amplitude Range: ±2 g, ±4 g, ±8 g, ±16 g
  • Accuracy: 5 Hz~1000 Hz (5%)
  • LoRaWAN wireless connectivity
  • Built-in 3-axis accelerometer and temperature sensor
  • Computing total 8 vibration characteristic values on board
  • Compliant with ISO 10816
  • IP66 with battery-powered, no wiring installation needed
  • Easy setting with user friendly interfaces on WISE Studio
  • Support wide temperature -20 ~ 85 °C
  • RED Compliance
WISE-2410 is a LoRaWAN wireless conditional monitoring sensor integrated with ARM Cortex-M4 Processor, LoRa transceiver, 3-axis accelerometer and temperature sensor. Battery life cycle is 2 years with IP66 enclosure.
