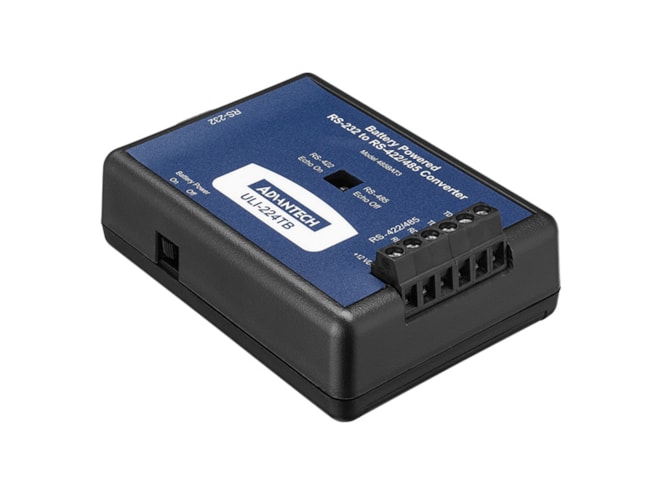

Advantech BB-485BAT3

ULI-224TB - RS-232 (DB9 Female to RS-422/485 (TB) Converter, Battery Powered.

$134.40
Part Number
  • BB-485BAT3
Highlights...

Features

  • Serial Type: RS-422/485
  • Serial Converter: RS-232 to RS-422/485
  • RS-232 Connector: DB9 Female
  • Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block
  • RS-422/485 Connector: Terminal Block
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (DC): 12 VDC
  • Power Input (Serial): Port-Powered from RS-232
  • Mounting: Inline
  • Converters RS-232 TD & RD to RS-422/485 signals
  • Extends RS-232 data signals up to 1.2 km (4000 ft)
  • Data rate: up to 115.2 Kbps
  • 3 powering options: Battery (2) AAA, RS-232 handshake lines, or external power supply (not included, sold separately)
  • DB9 F / TB
Features power versatility. Can be powered in three ways: batteries, port powered, or external power supply. Use the battery power option with a low power RS-232 port or no handshake lines. With power-port, turn off battery switch. Converts unbalanced RS-232 signals to balanced RS-422 or RS-485.
