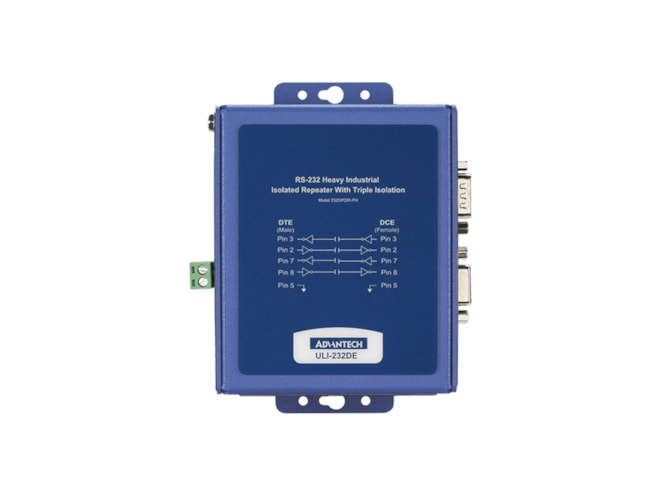

Advantech BB-232OPDRI-PH

ULI-232DE - RS-232 (DB9 Male / Female) Isolated Repeater.

$333.00
Part Number
  • BB-232OPDRI-PH
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232
  • Mounting: Panel
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Power: 10-48VDC
  • Serial Port Connector Type: DB9
  • Isolation: 2kV
  • Repeater Maximum Distance: 15 Meters
  • Power and Data Isolated: Yes
  • Serial Type: RS-232
  • ESD Protection: 15 kV
  • Isolation: 2,000 VDC
  • Safety: UL C1/D2 (Class I, Division 2)
  • Substation: IEC-61850-3
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: Panel, DIN
  • Enclosure (Metal): Metal
  • Extends RS-232 data signals
  • 2kV, three-way isolation (input/output/power)
  • Data rate: 1.2 to 115.2 kbps
  • Wide operating temperature: -40 to +85 °C
  • Rugged IP30 metal case (panel or DIN rail mount)
  • 10-48 VDC input power (power supply required, sold separately)
  • IEC-61850-3, IEEE-1613, NEMA TS2, FCC, CE, NEMA TS2, 50G Shock, 4G Vibration
A premium heavy industrial RS-232 isolated repeater. Powerful isolation on both data ports protects equipment and data from ground loops and surges. Additional isolation on the power supply circuits adds additional protection. Data is connected with a DB9 female connector and a DB9 male connector.
