Advantech BB-232OPDRI

ULI-232DC - Serial Repeater, RS-232, DB9, Isolated, Ind. DIN, C1D2.

$273.00
Part Number
  • BB-232OPDRI
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232
  • Mounting: DIN
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Power: 10-48VDC
  • Serial Port Connector Type: DB9
  • Isolation: 2kV
  • Repeater Maximum Distance: 15 Meters
  • Power and Data Isolated: Yes
  • Serial Type: RS-232
  • ESD Protection: 8 kV (Air)
  • Isolation: 2,000 VDC
  • Safety: UL C1/D2 (Class I, Division 2)
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: DIN
  • Enclosure (Metal): Metal
  • Extend and isolate RS-232 data another 15.2 m
  • 2kV 3-way optical isolation
  • Data rates up to 115.2 kbps
  • DB9 M / DB9 F, IP30, DIN rail mount
  • 10-48 Vdc power input (power supply required, not included, sold separately)

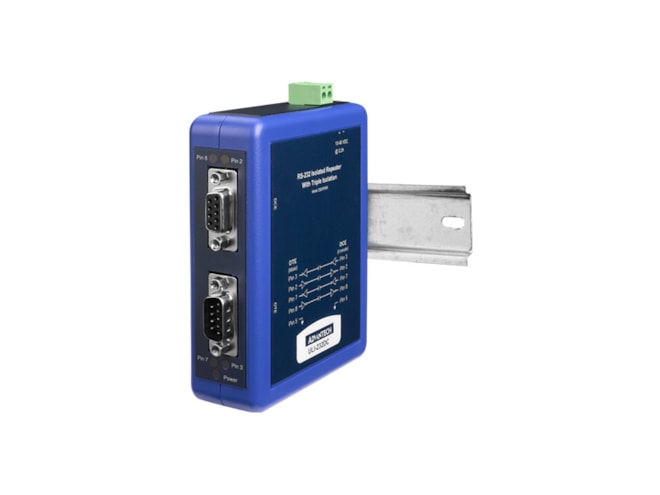

BB-232OPDRI premium industrial RS-232 repeater with 2kV optical isolation on both data ports protects equipment and data from ground loops and surges, plus isolation on power supply circuits for a third degree of protection. Data connected via DB9F/DCE and DB9M/DTE. TB power. 10-48 Vdc power input.
