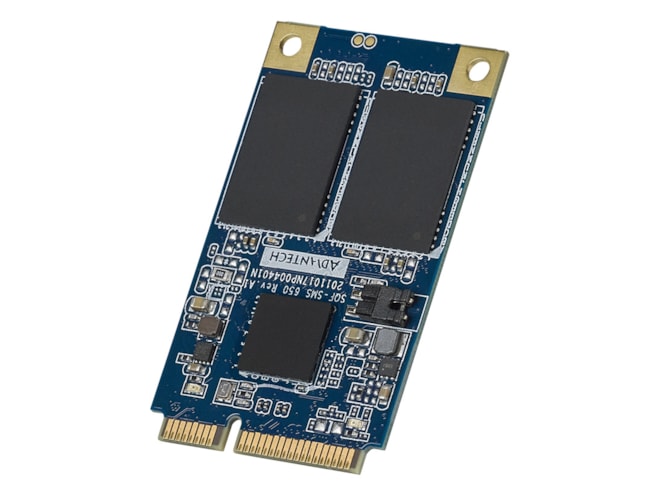

Advantech SQF-SMSZ2-32GDSDE

SQF mSATA 650 32G 3D sTLC BiCS5 (-40~85°C).

$36.90
Part Number
  • SQF-SMSZ2-32GDSDE
Highlights...

Features

  • Capacity: 32 GB
  • Connector: Mini PCIe with SATA pin-out
  • Flash Type: 3D sTLC BiCS5
  • Interface: SATA
  • Shock: 1,500G, Peak / 0.5 ms
  • SQFlash Utility: Support
  • Transfer Protocol: SATA III (6.0Gb)
  • Vibration: 20G, Peak / 80 ~ 2,000 Hz
  • SATA 3.2 Compliant
  • MO-300 mSATA Module
  • AES-256 Support & TCG-OPAL Compliant
  • Support HW and FW Write Protection
  • Supports LDCP & RAID ECC
  • GUI management tool & software API package
  • Multiple Temperature Range Product Selection
  • High Endurance sTLC Product Selection
Advantech SQFlash mSATA 650 is compliant with SATA 3.2, delivers security features and with software add-on functions. SQF-SMS 650 has wide range of capacity with different temperature ranges and high endueance sTLC product selections which read / write performance up to 550 and 510MB/s.
