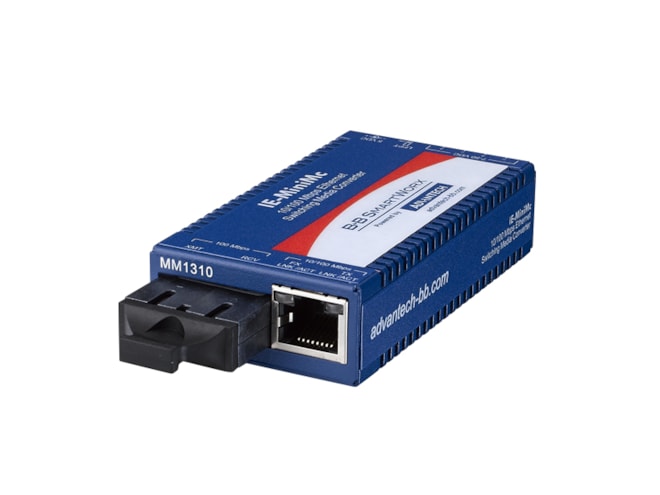

Advantech IMC-350I-SSR-B

IE-MiniMc, TP-TX/SSFX-SM1550-SC-WDM.

$192.00
Part Number
  • IMC-350I-SSR-B
Highlights...

Features

  • Fiber Transmission Speed: 10/100 Mbps
  • Fiber Port Optical Mode: Single-Strand
  • Fiber Transmission Wavelength: 1550T / 1310R
  • Fiber Transmission Distance: 20 km
  • Fiber Port Connector Type: SC Type
  • PoE-PD: Yes
  • Power Input (DC): 7 ~ 50 VDC, 1A
  • Dimensions (W x H x D): 2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in.)
  • Weight: 0.3 kg (0.7lb)
  • Operating Humidity: 5~95% (non-condensing)
  • Safety: UL/cUL
  • EMC: CE, FCC Class A, CSA
  • Centralized powered IMC-318I chassis
  • Supports Link Fault Pass Through functionality (LFPT)
  • IEEE802.3af compliant (IMC-350I series as PoE-PD)
  • Industrial grade design that supports an extended operating temperature(IMC-350I series)
  • Metal enclosure with compact size
The IMC-350 series is the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and also 100Mbps full-duplex on the fiber port, the IMC-350 series serves as media and data rate converter. With a variety of model types in terms of its play-n-plug feature and multiple powering options, the IMC-350 series is easy and convenient for any applications. The IMC-350I series is in industrial grade and can operate in wide temperature. The multiple powering options including IEEE 802.3af Power-over-Ethernet standard allow IMC-250I series to function as a power device. Its AC adapter and USB connectivity offer an unsurpassed flexibility for a variety of installation needs.
