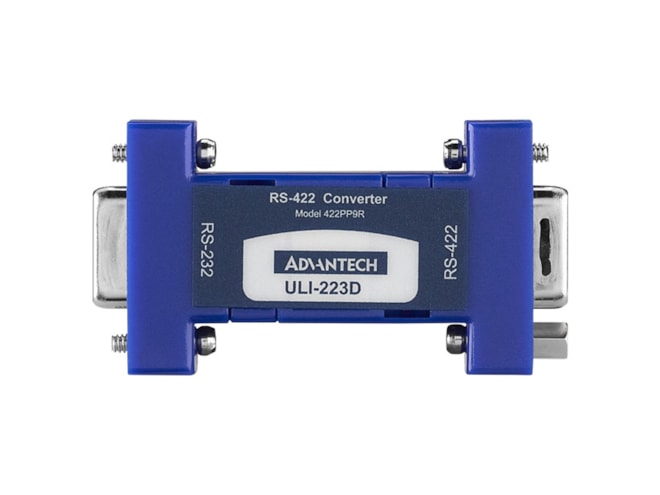

Advantech BB-422PP9R

ULI-223D - RS-232 to RS-422 Converter, Port Powered, DB9 Female Connectors.

$89.40
Part Number
  • BB-422PP9R
Highlights...

Features

  • Temperature: 0 to 70C
  • Serial Converter: RS-232 to RS-422
  • Serial Type: RS-422
  • Serial Port Connector Type: 1 x DB9 Female, 1 x DB9 Female
  • RS-232 Connector: DB9 Female
  • RS-422/485 Connector: DB9 Female
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (Serial): Port-Powered from RS-232
  • Mounting: Inline
  • Converts RS-232 (DB9F) to RS-422 converter (DB9F)
  • Extends RS-232 data signals up to 1200 m (4000 ft)
  • Data rates up to 115.2 Kbps
  • Quick, inline installation
  • Powered from RS-232 handshake lines - no power supply required
Two channel converter changes TD and RD RS-232 signals to RS-422 and extends data up to 1.2 km. It transmits both ways in RS-232 and RS-422 system. RS-232 pinout connects to computer COM port or other DTE device. Port-powered from RS-232 DTR and RTS handshake lines - no power supply or SW required.
