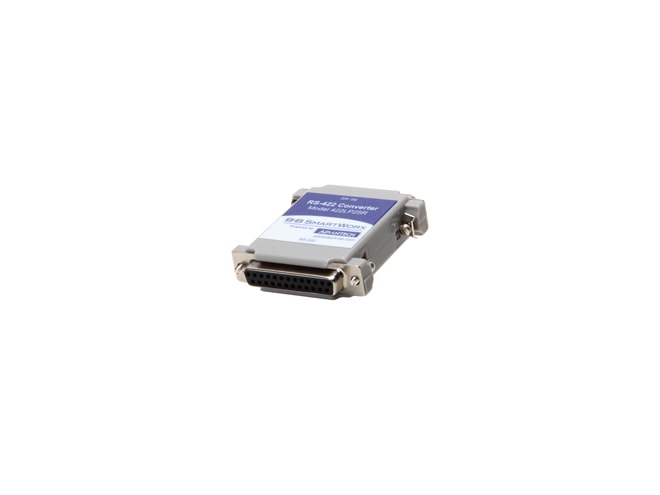

Advantech BB-422LP25R

Serial Converter, RS-232 DB-25 F to RS-422 DB25 M, Port Powered.

$97.00
Part Number
  • BB-422LP25R
Highlights...

Features

  • Serial Type: RS-422
  • RS-232 Connector: DB25 Female
  • RS-422/485 Connector: DB25 Male
  • Converts RS-232 TD and RD to balanced RS-422 signals
  • Extend RS-232 data signals up to 1.2 km (4,000 ft.)
  • Data rate: up to 115.2 kbps baud
  • Connectors: DB25 M / DB25 F
  • Powered from RS-232 handshake lines - no power supply required
RS-232 to RS-422 converter, converts unbalanced RS-232 signals to balanced RS-422 signals. The converter can derive power from its lines when they are in the Positive or Negative voltage state. This converter has been tested at 115.2k baud with 1220 meters (4000 feet) of cable.
