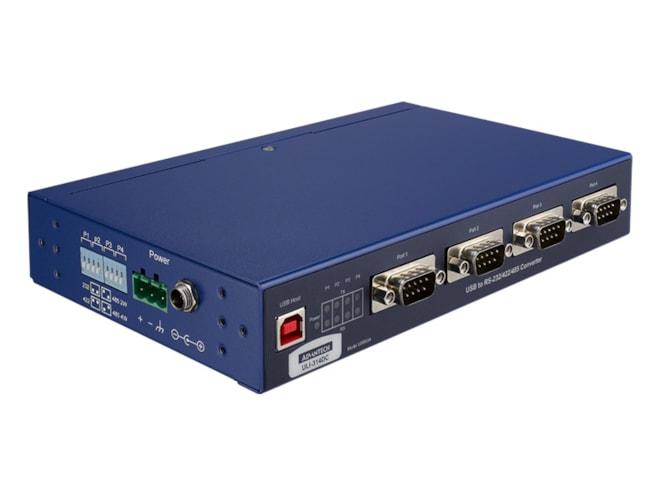

Advantech BB-USR604

ULI-314DC - USB to RS-232/422/485 (DB9 Male) Industrial Isolated Converter, 4 Port.

$620.00
Part Number
  • BB-USR604
Highlights...

Features

  • Technology: USB
  • Serial Standard: RS-232 / RS-422 / RS-485
  • Mounting: DIN, Panel
  • Serial Port Connector Type: DB9 male
  • Power: 10 to 48VDC
  • Isolation: 2kV
  • Isolation: 2,000 VDC
  • ESD Protection: 8 kV (Contact) ; 15 kV (Air)
  • Safety: Class I, Division 2, UL 508
  • Serial Type: RS-232, RS-422, RS-485
  • Serial Connector: DB9 Male
  • Power Input (DC): 10 ~ 48 VDC
  • Enclosure (Metal): Metal
  • Standard: USB 2.0
  • Maximum Transfer Rate: Hi-Speed (480 Mbps)
  • Connector Type: Type B (Female) High Retention
  • Maximum Serial Transmission Speed: 921.6 Kbps
  • Mounting: DIN
  • USB to RS-R32/422/485 Converter
  • UL Class 1/Division 2
  • 2 kV Isolation
  • Level 4 ESD Protection (15 kV Air, 8 kV Contact)
  • 921.6 Kbps Serial Data Rate
  • DIN and Flat Panel Mounting Options
  • TB and Power Jack 10-30 VDC Power Inputs
  • High Retention USB Connector, Plug in Serial Terminal Block
Four USB to RS-232/422/485 serial ports. UL C1 D2 Rated. Easy to set up with DB9 M serial connectors and a high retention USB connector that works with a standard USB cable (included). LEDs indicate transmit and receive. 10-30 VDC inputs are a terminal block with a redundant jack.
